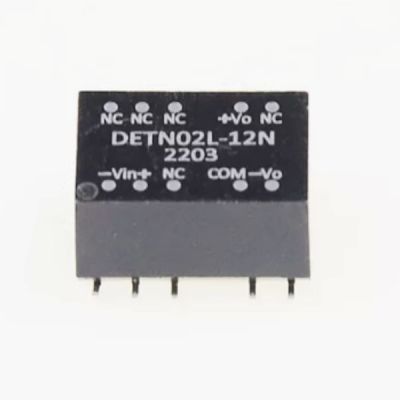

Meanwell 2W SMD Package DC-DC Unregulated Converter

- +
Availability:In stock
SKU Meanwell DETN02M
Brand Meanwell
Details

Meanwell DETN02M Series is 2W isolated and unregulated DC-DC converter. At the same time, the unit highlights module type and SMD package. The main features are as following: international standard pins, high efficiency reaching up to 83%, wide working temperature range -40~+100℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without extra components, short circuit protection, etc. In addition, DETN02M models account for different input voltage 5V/12V/24V±10%, and various output voltage, ±5V/±12V/±15V for Dual output. Considering its longe lifespan, high quality and excellent reliability, Meanwell DETN02M Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

DETN02M Meanwell Power Supply 2W SMD Package DC DC Unregulated Converter DETN02M-05 DETN02M-12 DETN02M-15 low cost YCICT

Meanwell DETN02M Series Encododing

DETN Series Name
02 Rated Wattage
M Input voltage (L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc )
15 Output Voltage (±5V ±12V ±15V)
SC Performance Difference
Blank -40~ +100 working te mperature with max. 0.5 second short protection
SC -40~+ 105℃ working temperature with continuous short protection

Meanwell DETN02M Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DETN02M-05 Normal 12V (10.8~13.2V) 30mA 208mA ±5V ±20~200mA 80% 220μF
DETN02M-12 30mA 203mA ±12V ±8~84mA 82% 220μF
DETN02M-15 30mA 200mA ±15V ±6~67mA 83% 220μF
INPUT VOLTAGE RANGE L: 4.5~5.5Vdc M: 10.8~13.2Vdc N: 21.6~26.4Vdc
SURGE VOLTAGE (100ms max.) 5Vin models: 9Vdc 12Vin models: 16Vdc 24Vin models: 30Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 800mA Slow-Blow Type 12Vin models: 300mA Slow-Blow Type 24Vin models: 170mA Slow-Blow Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±2.0%
RATED POWER 2W
RIPPLE & NOISE 75mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION ±8%
SWITCHING FREQUENCY (Typ.) 100KHz
PROTECTION SHORT CIRCUIT Standard model: 0.5 second max. Optional models (SC-suffix): Continuous
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. Standard model: -40~+100 (Refer to "Derating Curve") ; Optional models (SC-suffix): -40~+105
CASE TEMPERATURE +105 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 10sec./240max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:3KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 80pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3,±8KV air, Level 2±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
OTHERS MTBF 888Khrs min. MIL-HDBK-217F (25)
DIMENSION 15.24*10.9*7.1mm (0.6*0.43*0.28 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING Standard : 1.2g ; 32pcs/per tube, 3840pcs/120 tube/per carton
Optional : 1.2g ; 500pcs/per reel, 2500pcs/5 reel/per carton

Meanwell DETN02M Series Features

l  Low cost

l  High efficiency up to 83%

l  Protection: Short circuit

l  3KVDC I/O isolation

l  Optional reel packing

l  3 years warranty

l  SMD package with industry standard pinout

l  Operating temperature range -40~ +90℃

l  Comply to BS EN/EN55032 radiated Class B without additional components

DETN02M Meanwell Power Supply 2W DC DC Unregulated Converter DETN02M-05 DETN02M-12 DETN02M-15 module type YCICT

Meanwell DETN02M Series Applications

l  Analyzer

l  Detector

l  Data switch

l  Instrument

l  Wireless network

l  Industrial control facility

l  Telecom/datacom system

DETN02M Meanwell Power Supply 2W SMD DC DC Unregulated Converter DETN02M-05 DETN02M-12 DETN02M-15 module type YCICT

Meanwell DETN02M Series Mechanical Diagram

DETN02M Meanwell Power Supply 2W DC DC Unregulated Converter DETN02M-05 DETN02M-12 DETN02M-15 module type YCICT
