DETN02L
4.93
Details

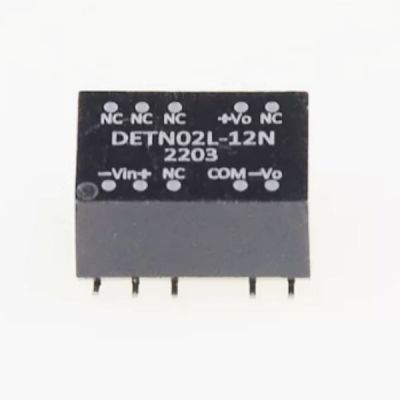

Meanwell DETN02L Series is 2W isolated and unregulated DC-DC converter. Meanwhile, the product highlights module type and SMD package. It features international standard pins, high efficiency reaching up to 83%, wide working temperature range -40~+100℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. What's more, DETN02L models account for different input voltage 5V/12V/24V±10%, and various output voltage, ±5V/±12V/±15V for Dual output. Considering its longevity, high quality and excellent reliability, Meanwell DETN02L Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell DETN02L Series Encoding
| DETN | Series Name |
| 02 | Rated Wattage |
| L | Input voltage (L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc ) |
| 12 | Output Voltage (±5V ±12V ±15V) |
| SC | Performance Difference |
| Blank | -40~ +100℃ working te mperature with max. 0.5 second short protection |
| SC | -40~+ 105℃ working temperature with continuous short protection |
Meanwell DETN02L Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| DETN02L-05 | Normal 5V (4.5~5.5V) | 60mA | 513mA | ±5V | ±20~200mA | 78% | 220μF |
| DETN02L-12 | 60mA | 500mA | ±12V | ±8~84mA | 80% | 220μF | |
| DETN02L-15 | 60mA | 494mA | ±15V | ±6~67mA | 81% | 220μF | |
| INPUT | VOLTAGE RANGE | L: 4.5~5.5Vdc M: 10.8~13.2Vdc N: 21.6~26.4Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models: 9Vdc 12Vin models: 16Vdc 24Vin models: 30Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 5Vin models: 800mA Slow-Blow Type 12Vin models: 300mA Slow-Blow Type 24Vin models: 170mA Slow-Blow Type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2.0% | |||||
| RATED POWER | 2W | ||||||
| RIPPLE & NOISE | 75mVp-p | ||||||
| LINE REGULATION | 1.2% for 1% input variation | ||||||
| LOAD REGULATION | ±8% | ||||||
| SWITCHING FREQUENCY (Typ.) | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Standard model: 0.5 second max. Optional models (SC-suffix): Continuous | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | Standard model: -40~+100℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40~+105℃ | ||||||
| CASE TEMPERATURE | +105℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 10sec./240℃max. | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 80pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | N/A | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class A | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air, Level 2±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV at power | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||
| OTHERS | MTBF | 888Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 15.24*10.9*7.1mm (0.6*0.43*0.28 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | Standard : 1.2g ; 32pcs/per tube, 3840pcs/120 tube/per carton Optional : 1.2g ; 500pcs/per reel, 2500pcs/5 reel/per carton |
||||||
Meanwell DETN02L Series Features
l SMD package with industry standard pinout
l Operating temperature range -40~+90℃
l Comply to BS EN/EN55032 radiated Class B without additional components
l High efficiency up to 83%
l Protection: Short circuit
l 3KVDC I/O isolation
l Low cost
l Optional reel packing
l 3 years warranty
Meanwell DETN02L Series Applications
Meanwell DETN02L Series Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Wireless network
l Industrial control facility
l Telecom/datacom system
Meanwell DETN02L Series Mechanical Diagram
