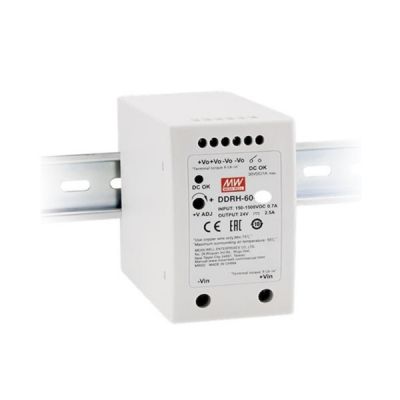

Meanwell 60W Ultra Wide Input DIN Rail Type DC-DC Converter

- +
Availability:In stock
SKU Meanwell DDRH-60
Brand Meanwell
Details

Meanwell DDRH-60 Series is a 150~1500Vdc ultra-high input DIN rail type DC- DC converter. The product could supply stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. The main features are as following: easy to install DIN rail type, narrow width (57mm) in slim design, -30~+ 80℃ wide range operating temperature, 4KVAC high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. Moreover, DDRH-60 is compliant with BS EN/EN61 000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication, and therefore can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting, DC bus centralized application and so forth.

Meanwell DDRH-60 price and specs 60W Ultra Wide Input DIN Rail Type DC-DC Converter DDRH-60-5/12/24/48 57mm width YCICT

Meanwell DDRH-60 Series Encoding

DDRH Series Name
60 Rated Wattage
24 Output Voltage

Meanwell DDRH-60 Series Model Specifications

MODEL DDRH-60-5 DDRH-60-12 DDRH-60-24 DDRH-60-48
OUTPUT DC VOLTAGE 5V 12V 24V 48V
RATED CURRENT 10A 5A 2.5A 1.25A
CURRENT RANGE 0-10A 0-5A 0-2.5A 0-1.25A
RATED POWER 50W 60W 60W 60W
RIPPLE & NOISE (max.) 100mVp-p 120mVp-p 150mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 5-6V 12-15V 24-29V 48-54V
VOLTAGE TOLERANCE ±1.5% ±1.5% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.5% ±0.5% ±0.5% ±0.5%
EXTERNAL CAPACITANCE LOAD (Max.) 6000μF 4000μF 2500μF 1000μF
INPUT VOLTAGE RANGE 150~1500Vdc
EFFICIENCY (Typ.) 200Vdc 80.00% 83.00% 86.00% 87.00%
EFFICIENCY (Typ.) 800Vdc 81.00% 85.00% 87.00% 88.00%
EFFICIENCY (Typ.) 1500Vdc 76.00% 81.00% 84.00% 83.00%
INRUSH CURRENT (max.) COLD START 120A /1500Vdc 80A/800Vdc 30A/150Vdc
PROTECTION OVERLOAD 105~135% rated output power
Protection type : Hiccup up mode when output voltage<55%, recovers automatically after condition is removed;
Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage
OVER VOLTAGE 6.6-8.4V 16.5-21V 30-38V 55-60V
Protection type : Hiccup up mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Protection type : Hiccup up mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Under voltage protection range:120 ~ 130Vdc , Under voltage release range:130 ~ 146.5Vdc
FUNCTION DC OK SIGNAL Relay contact rating (max.) : 30V / 1A resistive
ENVIRONMENT WORKING TEMP. -30 ~ +80 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 55)
VIBRATION Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE 5000 meters /OVC
OVER VOLTAGE CATEGORY ; According to EN62109-1; altitude up to 5000 meters
SAFETY&EMC SAFETY STANDARDS IEC62109-1(LVD) , EAC TP TC 004 approved; Design refer to UL1741(By request)
WITHSTAND VOLTAGE I/P-O/P:4KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, 100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) Class A
Radiated BS EN/EN55032(CISPR32) Class A
Voltage Flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN55035, BS EN/EN61000-6-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV, criteria A
Surge BS EN/EN61000-4-6 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-5 Level 3, 10V, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods,
95% interruptions 250 periods
OTHERS MTBF 454.5K hrs min. MIL-HDBK-217F (25); 1439.7K hrs min. Telcordia TR/SR-332 (Bellcore) (25)
DIMENSION 57*93.5*105mm (W*H*D)
PACKING 0.8Kg; 16pcs/12.8Kg/0.84CUFT

Meanwell DDRH-60 Series Features

l  150~1500Vdc 10:1 ultra-wide input range

l  57mm slim width

l  4KVac I/O high isolation (Reinforced isolation)

l  Protections: Short circuit/Overload/Over voltage/Over temperature/DC input under voltage/DC input reverse polarity

l  Cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5 or 15

l  -30~+80℃ ultra-wide operating temperature ( >+55℃ derating)

l  Over voltage category II

l  Operating altitude up to 5000 meters

l  DC OK relay contact

l  DC output voltage adjustable (+20%)

l  3 years warranty

Meanwell DDRH-60 price and specs 60W DIN Rail type DC-DC Converter DDRH-60-5 DDRH-60-12 DDRH-60-24 DDRH-60-48 YCICT

Meanwell DDRH-60 Series Applications

l  Photovoltaic power generation

l  High voltage frequency conversion

l  Industrial control system

l  Semiconductor fabrication equipment

l  Electro-mechanical apparatus

l  DC bus centralized application

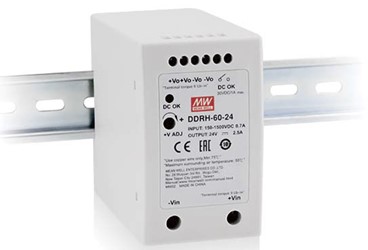

Meanwell DDRH-60 price and specs 60W Ultra Wide Input DIN Rail Type DC-DC Converter DDRH-60-5/12/24/48 57mm YCICT

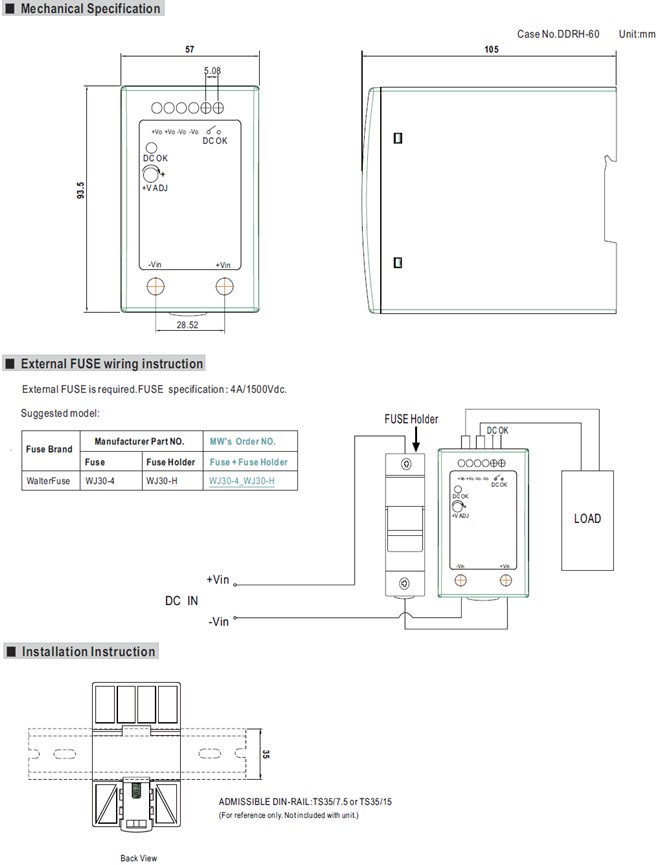

Meanwell DDRH-60 Series Mechanical Diagram
