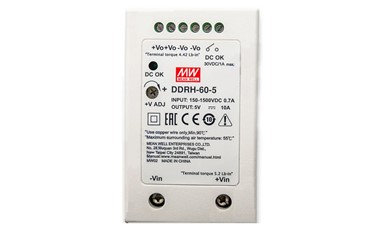

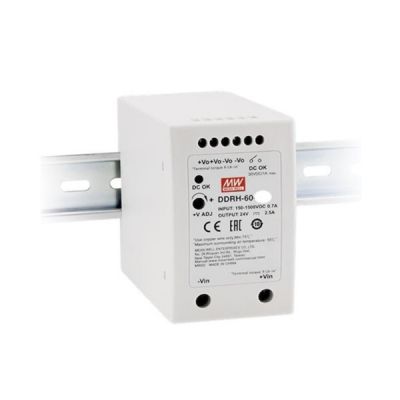

Meanwell DDRH-60-5 is a DIN rail type DC- DC converter with 5V10A0-10A50W100mVp-p5-6V6000μF. The model features 150~1500Vdc ultra-high input, and can supply stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. At the same time, the main features are as following: easy to install DIN rail type, narrow width (57mm) in slim design, -30~+ 80℃ wide range operating temperature, 4KVAC high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. In addition, DDRH-60-5 is compliant with BS EN/EN61 000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication, and therefore can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting, DC bus centralized application and so forth.Meanwell DDRH-60-5 price and specs 60W Ultra Wide Input DIN Rail Type DC-DC Converter DDRH-60-5/12/24/48 57mm YCICT

Meanwell DDRH-60-5 Encoding

DDRH Series Name
60 Rated Wattage
5 Output Voltage

Meanwell DDRH-60-5 Specifications

MODEL DDRH-60-5
OUTPUT DC VOLTAGE 5V
RATED CURRENT 10A
CURRENT RANGE 0-10A
RATED POWER 50W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE ADJ. RANGE 5-6V
VOLTAGE TOLERANCE ±1.5%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.5%
EXTERNAL CAPACITANCE LOAD (Max.) 6000μF
INPUT VOLTAGE RANGE 150~1500Vdc
EFFICIENCY (Typ.) 200Vdc 80.00%
EFFICIENCY (Typ.) 800Vdc 81.00%
EFFICIENCY (Typ.) 1500Vdc 76.00%
INRUSH CURRENT (max.) COLD START 120A /1500Vdc 80A/800Vdc 30A/150Vdc
PROTECTION OVERLOAD 105~135% rated output power
Protection type : Hiccup up mode when output voltage<55%, recovers automatically after condition is removed;
Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage
OVER VOLTAGE 6.6-8.4V
Protection type : Hiccup up mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Protection type : Hiccup up mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Under voltage protection range:120 ~ 130Vdc , Under voltage release range:130 ~ 146.5Vdc
FUNCTION DC OK SIGNAL Relay contact rating (max.) : 30V / 1A resistive
ENVIRONMENT WORKING TEMP. -30 ~ +80 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 55)
VIBRATION Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE 5000 meters /OVC
OVER VOLTAGE CATEGORY ; According to EN62109-1; altitude up to 5000 meters
SAFETY&EMC SAFETY STANDARDS IEC62109-1(LVD) , EAC TP TC 004 approved; Design refer to UL1741(By request)
WITHSTAND VOLTAGE I/P-O/P:4KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, 100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035, BS EN/EN61000-6-2
OTHERS MTBF 454.5K hrs min. MIL-HDBK-217F (25); 1439.7K hrs min. Telcordia TR/SR-332 (Bellcore) (25)
DIMENSION 57*93.5*105mm (W*H*D)
PACKING 0.8Kg; 16pcs/12.8Kg/0.84CUFT

Meanwell DDRH-60-5 Features

l  150~1500Vdc 10:1 ultra-wide input range

l  57mm slim width

l  4KVac I/O high isolation (Reinforced isolation)

l  Cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5 or 15

l  -30~+80℃ ultra-wide operating temperature ( >+55℃ derating)

l  Over voltage category II

l  Operating altitude up to 5000 meters

l  DC OK relay contact

l  DC output voltage adjustable (+20%)

l  3 years warranty

l  Protections: Short circuit/Overload/Over voltage/Over temperature/DC input under voltage/DC input reverse polarity

Meanwell DDRH-60-5 price and specs 60W Ultra Wide Input DIN Rail Type DC-DC Converter DDRH-60-5/12/24/48 57mm 5v YCICT

Meanwell DDRH-60-5 Applications

l  Photovoltaic power generation

l  High voltage frequency conversion

l  Industrial control system

l  Semiconductor fabrication equipment

l  Electro-mechanical apparatus

l  DC bus centralized application

Meanwell DDRH-60-5 price and specs 60W Ultra Wide Input DIN Rail Type DC-DC Converter DDRH-60-5/12/24/48 57mm 10a YCICT

Meanwell DDRH-60-5 Mechanical Diagram
