DDRH-60-24
35.59
Details

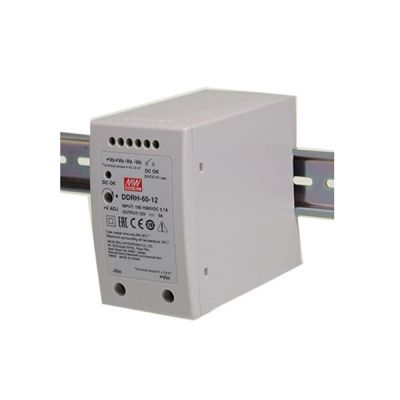

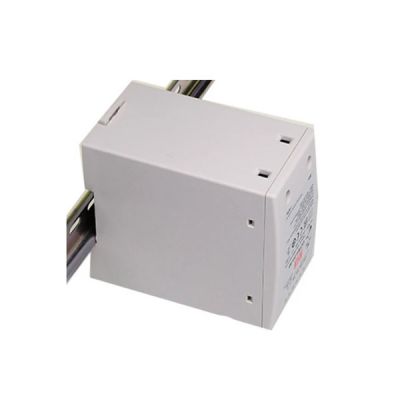

Meanwell DDRH-60-24 is a DIN rail type DC- DC converter with 24V2.5A0-2.5A60W150mVp-p24-29V2500μF. The item outstands 150~1500Vdc ultra-high input, and supplies stable working voltage for the load. Meanwhile, It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. The main features are as following: easy to install DIN rail type, narrow width (57mm) in slim design, -30~+ 80℃ wide range operating temperature, 4KVAC high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. Apart from them, DDRH-60-24 is compliant with BS EN/EN61 000-6-2 standard regarding immunity for industrial environments. It is ideal for industrial automation, surveillance, telecommunication, and therefore can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting, DC bus centralized application and so forth.
Meanwell DDRH-60-24 Encoding
| DDRH | Series Name |
| 60 | Rated Wattage |
| 24 | Output Voltage |
Meanwell DDRH-60-24 Specifications
| MODEL | DDRH-60-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 2.5A | |
| CURRENT RANGE | 0-2.5A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24-29V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| EXTERNAL CAPACITANCE LOAD (Max.) | 2500μF | |
| INPUT | VOLTAGE RANGE | 150~1500Vdc |
| EFFICIENCY (Typ.) 200Vdc | 86.00% | |
| EFFICIENCY (Typ.) 800Vdc | 87.00% | |
| EFFICIENCY (Typ.) 1500Vdc | 84.00% | |
| INRUSH CURRENT (max.) | COLD START 120A /1500Vdc 80A/800Vdc 30A/150Vdc | |
| PROTECTION | OVERLOAD | 105~135% rated output power |
| Protection type : Hiccup up mode when output voltage<55%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage |
||
| OVER VOLTAGE | 30-38V | |
| Protection type : Hiccup up mode, recovers automatically after fault condition is removed | ||
| OVER TEMPERATURE | Protection type : Hiccup up mode, recovers automatically after fault condition is removed | |
| DC INPUT REVERSE POLARITY | By internal Bridge Diode, no damage, recovers automatically after fault condition removed | |
| DC INPUT UNDER VOLTAGE LOCKOUT | Under voltage protection range:120 ~ 130Vdc , Under voltage release range:130 ~ 146.5Vdc | |
| FUNCTION | DC OK SIGNAL | Relay contact rating (max.) : 30V / 1A resistive |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +80℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | |
| VIBRATION | Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | |
| OPERATING ALTITUDE | 5000 meters /OVCⅡ | |
| OVER VOLTAGE CATEGORY | Ⅱ; According to EN62109-1; altitude up to 5000 meters | |
| SAFETY&EMC | SAFETY STANDARDS | IEC62109-1(LVD) , EAC TP TC 004 approved; Design refer to UL1741(By request) |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC O/P-DC OK:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 454.5K hrs min. MIL-HDBK-217F (25℃); 1439.7K hrs min. Telcordia TR/SR-332 (Bellcore) (25℃) |
| DIMENSION | 57*93.5*105mm (W*H*D) | |
| PACKING | 0.8Kg; 16pcs/12.8Kg/0.84CUFT | |
Meanwell DDRH-60-24 Features
l 150~1500Vdc 10:1 ultra-wide input range
l 57mm slim width
l Over voltage category II
l Operating altitude up to 5000 meters
l DC OK relay contact
l DC output voltage adjustable (+20%)
l 3 years warranty
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l -30~+80℃ ultra-wide operating temperature ( >+55℃ derating)
l 4KVac I/O high isolation (Reinforced isolation)
l Protections: Short circuit/Overload/Over voltage/Over temperature/DC input under voltage/DC input reverse polarity
Meanwell DDRH-60-24 Applications
l Photovoltaic power generation
l High voltage frequency conversion
l Industrial control system
l Semiconductor fabrication equipment
l Electro-mechanical apparatus
l DC bus centralized application
Meanwell DDRH-60-24 Mechanical Diagram
