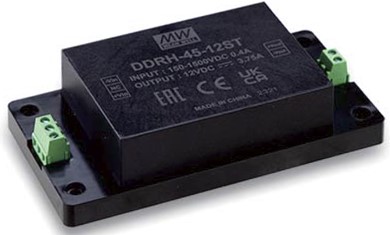

DDRH-45-12ST
28.76
Details
Meanwell DDRH-45-12ST is a 150~1500Vdc high reliable ultra-high input DC-DC converter with 12V3.75A12~24Vo:100mVp-p 48Vo:150mVp-p. The unit could supply stable working voltage for the load. Meanwhile, the main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. What’s more, this series has DIN Rail type. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Apart from them, DDRH-45-12ST is designed to meet UL1741 (By requested) and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication, and therefore could be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting, DC bus centralized application, ESS, charging pile, railway and so forth.
Meanwell DDRH-45-12ST Encoding
| DDRH | Series Name |
| 45 | Rated Wattage |
| 12 | Output Voltage ( 12V/15V/24V/48V) |
| ST | P: PCB Mounting Type |
| ST: Screw Terminal Type | |
| DR: DIN Rail Type |
Meanwell DDRH-45-12ST Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (Typ.) | CAPACITOR LOAD (MAX.) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOARD | FULL LOAD | ||||||
| DDRH-45-12P | Nominal 800Vdc (150~1500Vdc) | 0.2mA | 75mA | 12V | 3.75A | 85% | 3750μF |
| DDRH-45-12ST | 0.2mA | 75mA | 12V | 3.75A | 85% | 3750μF | |
| DDRH-45-12DR | 0.2mA | 75mA | 12V | 3.75A | 85% | 3750μF | |
| INPUT | VOLTAGE RANGE | 150~1500Vdc | |||||
| FILTER | Pi type | ||||||
| EXTERNAL INPUT FUSE | 4A/1500Vdc, required (Please refer to page 6 for more details) | ||||||
| INRUSH CURRENT (Typ.) | Cold start 150A max. at Vin=800Vdc | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2.0% | |||||
| RATED POWER | 45W | ||||||
| RIPPLE & NOISE | 12~24Vo:100mVp-p 48Vo:150mVp-p | ||||||
| LINE REGULATION | ±1% | ||||||
| LOAD REGULATION | ±1% (10% Load to Full Load) | ||||||
| SWITCHING FREQUENCY (Typ.) | 28~75.6KHz | ||||||
| HOLD UP TIME | 20ms min. at Vin=800Vdc | ||||||
| SETUP TIME | 2s max. at 150~1500Vdc | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Hiccup mode, continuous, automatic recovery | |||||
| OVERLOAD | 110 ~ 300% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Hiccup mode, recovers automatically after fault condition is removed | ||||||
| DC INPUT | REVERSE POLARITY | By internal Bridge Diode, no damage, recovers automatically after fault condition removed | |||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage | 132Vdc | |||||
| Shutdown voltage | 121Vdc | ||||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +80℃(Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.02% /℃(-40℃~ 50℃) Typ. | ||||||
| VIBRATION | Meets: MIL.STD-810F Table 514.5C-VⅢ, 15-2000Hz, X,Y,Z axis, 1hr (each axis), total 3hrs | ||||||
| OPERATING ALTITUDE | 5000 meters | ||||||
| OVER VOLTAGE CATEGORY | Ⅱ; According to EN62109-1; altitude up to 5000 meters | ||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested) | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVac | ||||||
| ISOLATION RESISTANCE | I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A (with external components) | |||||
| Radiated | BS EN/EN55032 | Class A (with external components) | |||||
| EMC IMMUNITY | BS EN/EN55035 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, 10V, criteria A | |||||
| EFT/Bursts | BS EN/EN61000-4-4 | Level 2, 0.5KV, criteria A | |||||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Vin+ ~ Vin-, criteria A | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V, criteria A | |||||
| OTHERS | MTBF | 316Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION (L*W*H) | P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm | ||||||
| CASE MATERIAL | Non-conductive black plastic (UL 94V-0 rated) | ||||||
| POTTING MATERIAL | UL 94V-0 | ||||||
| PIN MATERIAL | Base: copper, Plating: Matte Tin | ||||||
| PACKING | P Type: 240g; 6pcs/Tray, 18pcs/per carton ST Type: 305g; 6pcs/Tray, 18pcs/per carton DR Type: 310g ; 6pcs/Tray, 18pcs/per carton |
||||||
Meanwell DDRH-45-12ST Features
l 150~1500Vdc 10:1 ultra-wide input range
l 3 years warranty
l 4KVac I/O high isolation (Reinforced isolation)
l Fanless design, fully encapsulated, cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
l -40~+80℃ ultra-wide operating temperature (>+50℃ derating)
l Operating altitude up to 5000 meters
l Protections: Short circuit/Overload/Over voltage/DC input under voltage/DC input reverse Polarity
Meanwell DDRH-45-12ST Applications
l Photovoltaic power generation
l Renewable Energy System
l High voltage frequency conversion
l Industrial control system
l Semiconductor fabrication equipment
l Electro-mechanical apparatus
l DC bus centralized application
l Energy storage system (ESS)
l Charging pile
l Third rail
Meanwell DDRH-45-12ST Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
