DDRH-15-24DR
25.89
Details

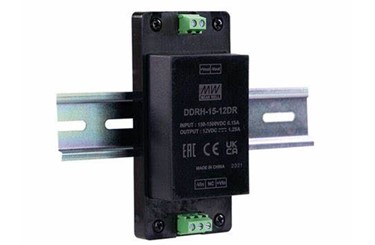

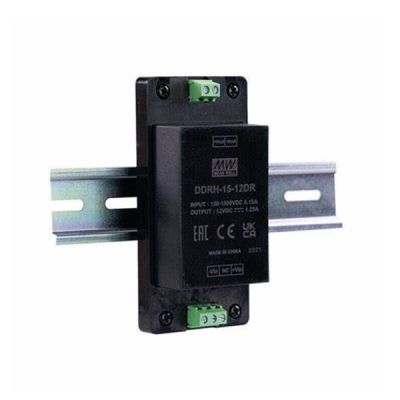

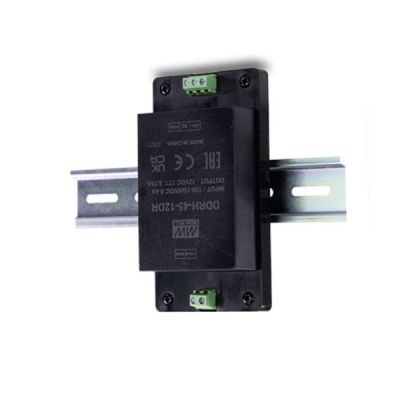

Meanwell DDRH-15-24DR is a 150~1500Vdc high reliable ultra-high input DC-DC converter with 24V0.625A5Vo:10W12Vo~24Vo:15W. The item could supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Apart from them, this series has DIN Rail type. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. What’s more, DDRH-15-24 is designed to meet UL1 741 (By requested) and IEC62109-1 standard. It is fit for industrial automation, surveillance, telecommunication, and therefore can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting, DC bus centralized application, ESS, charging pile, railway and so forth.
Meanwell DDRH-15-24DR Encoding
| DDRH | Series Name |
| 15 | Rated Wattage |
| 24 | Output Voltage ( 5V/12V/15V/24V) |
| DR | P: PCB Mounting Type |
| ST: Screw Terminal Type | |
| DR: DIN Rail Type |
Meanwell DDRH-15-24DR Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (Typ.) | CAPACITOR LOAD (MAX.) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOARD | FULL LOAD | ||||||
| DDRH-15-24P | Nominal 800Vdc (150~1500Vdc) | 0.2mA | 30mA | 24V | 0.625A | 88% | 625μF |
| DDRH-15-24ST | 0.2mA | 30mA | 24V | 0.625A | 88% | 625μF | |
| DDRH-15-24DR | 0.2mA | 30mA | 24V | 0.625A | 88% | 625μF | |
| INPUT | VOLTAGE RANGE | 150~1500Vdc | |||||
| FILTER | Pi type | ||||||
| EXTERNAL INPUT FUSE | 4A/1500Vdc, required (Please refer to page 6 for more details) | ||||||
| INRUSH CURRENT (Typ.) | Cold start 150A max. at Vin=800Vdc | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2.0% | |||||
| RATED POWER | 5Vo: 10W 12Vo ~ 24Vo: 15W | ||||||
| RIPPLE & NOISE | 5 ~ 15Vo: 100mVp-p 24Vo: 150mVp-p | ||||||
| LINE REGULATION | ±1% | ||||||
| LOAD REGULATION | ±1% (10% Load to Full Load) | ||||||
| SWITCHING FREQUENCY (Typ.) | 25 ~ 75.6KHz | ||||||
| HOLD UP TIME | 16ms min. at Vin=800Vdc | ||||||
| SETUP TIME | 1s max. at 150~1500Vdc | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Hiccup mode, continuous, automatic recovery | |||||
| OVERLOAD | 110 ~ 300% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Hiccup mode, recovers automatically after fault condition is removed | ||||||
| DC INPUT | REVERSE POLARITY | By internal Bridge Diode, no damage, recovers automatically after fault condition removed | |||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage | 147Vdc | |||||
| Shutdown voltage | 137Vdc | ||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested) | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVac | ||||||
| ISOLATION RESISTANCE | I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A (with external components) | |||||
| Radiated | BS EN/EN55032 | Class A (with external components) | |||||
| EMC IMMUNITY | BS EN/EN55035 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, 10V, criteria A | |||||
| EFT/Bursts | BS EN/EN61000-4-4 | Level 2, 0.5KV, criteria A | |||||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Vin+ ~ Vin-, criteria A | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V, criteria A | |||||
| OTHERS | MTBF | 388Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION (L*W*H) | P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm | ||||||
| CASE MATERIAL | Non-conductive black plastic (UL 94V-0 rated) | ||||||
| POTTING MATERIAL | UL 94V-0 | ||||||
| PIN MATERIAL | Base: copper, Plating: Matte Tin | ||||||
| PACKING | P Type: 170g ; 6pcs/Tray, 18pcs/per carton ST Type: 210g ; 6pcs/Tray, 18pcs/per carton DR Type: 215g ; 6pcs/Tray, 18pcs/per carton |
||||||
Meanwell DDRH-15-24DR Features
l 3 years warranty
l Operating altitude up to 5000 meters
l 150~1500Vdc 10:1 ultra-wide input range
l 4KVac I/O high isolation (Reinforced isolation)
l Can be installed on DIN rail TS -35/7.5 or 15 (DR-Type)
l -40~+80℃ ultra-wide operating temperature ( >+50℃ derating)
l Fanless design, fully encapsulated, cooling by free air convection
l Protections: Short circuit/Overload/Over voltage/DC input under voltag/ DC input reverse Polarity
Meanwell DDRH-15-24DR Applications
l Third rail
l Charging pile
l Industrial control system
l Renewable Energy System
l Energy storage system (ESS)
l Electro-mechanical apparatus
l DC bus centralized application
l Photovoltaic power generation
l High voltage frequency conversion
l Semiconductor fabrication equipment
Meanwell DDRH-15-24DR Mechanical Diagram
