Meanwell 15W High Reliable 150~1500Vdc Ultra-Wide Input DC-DC Converter with 15V1A5Vo:10W12Vo~24Vo:15W5~15Vo:100mVp-p 24Vo:150mVp-p

- +
Availability:In stock
SKU Meanwell DDRH-15-15ST
Brand Meanwell
Details

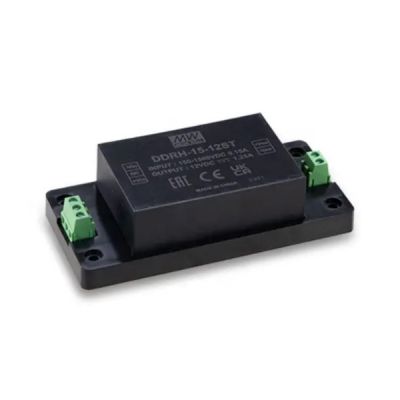

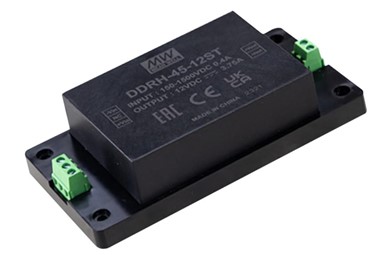

Meanwell DDRH-15-15ST is a 150~1500Vdc high reliable ultra-high input DC-DC converter with 15V1A5Vo:10W12Vo~24Vo:15W. The item could supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Meanwhile, this series has DIN Rail type. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Moreover, DDRH-15-15 is designed to meet UL1 741(By requested) and IEC62109-1 standard. It is fit for industrial automation, surveillance, telecommunication, and therefore could be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting, DC bus centralized application, ESS, charging pile, railway and so forth.Meanwell DDRH-15-15ST price and specs 15W 150~1500Vdc DC-DC Converter DDRH-15-15 DDRH-15-15P DDRH-15-15DR 15v 1a YCICT

Meanwell DDRH-15-15ST Encoding

DDRH Series Name
15 Rated Wattage
15 Output Voltage ( 5V/12V/15V/24V)
ST P: PCB Mounting Type
ST: Screw Terminal Type
DR: DIN Rail Type

Meanwell DDRH-15-15ST Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (Typ.) CAPACITOR LOAD (MAX.)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOARD FULL LOAD
DDRH-15-15P Nominal 800Vdc (150~1500Vdc) 0.2mA 30mA 15V 1A 87% 1000μF
DDRH-15-15ST 0.2mA 30mA 15V 1A 87% 1000μF
DDRH-15-15DR 0.2mA 30mA 15V 1A 87% 1000μF
INPUT VOLTAGE RANGE 150~1500Vdc
FILTER Pi type
EXTERNAL INPUT FUSE 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.) Cold start 150A max. at Vin=800Vdc
OUTPUT VOLTAGE ACCURACY ±2.0%
RATED POWER 5Vo: 10W 12Vo ~ 24Vo: 15W
RIPPLE & NOISE 5 ~ 15Vo: 100mVp-p 24Vo: 150mVp-p
LINE REGULATION ±1%
LOAD REGULATION ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.) 25 ~ 75.6KHz
HOLD UP TIME 16ms min. at Vin=800Vdc
SETUP TIME 1s max. at 150~1500Vdc
PROTECTION SHORT CIRCUIT Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD 110 ~ 300% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY By internal Bridge Diode, no damage, recovers automatically after fault condition removed
UNDER VOLTAGE LOCKOUT Start-up voltage 147Vdc
Shutdown voltage 137Vdc
SAFETY & EMC SAFETY STANDARDS IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested)
WITHSTAND VOLTAGE I/P-O/P:4KVac
ISOLATION RESISTANCE I/P-O/P, 100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted  BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY BS EN/EN55035
Parameter Standard Test Level
ESD  BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A
OTHERS MTBF 388Khrs MIL-HDBK-217F (25)
DIMENSION (L*W*H) P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm
CASE MATERIAL Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL UL 94V-0
PIN MATERIAL Base: copper, Plating: Matte Tin
PACKING P Type: 170g ; 6pcs/Tray, 18pcs/per carton
ST Type: 210g ; 6pcs/Tray, 18pcs/per carton
DR Type: 215g ; 6pcs/Tray, 18pcs/per carton

Meanwell DDRH-15-15ST Features

l  3 years warranty

l  Operating altitude up to 5000 meters

l  150~1500Vdc 10:1 ultra-wide input range

l  4KVac I/O high isolation (Reinforced isolation)

l  Fanless design, fully encapsulated, cooling by free air convection

l  Can be installed on DIN rail TS -35/7.5 or 15 (DR-Type)

l  -40~+80℃ ultra-wide operating temperature ( >+50℃ derating)

l  Protections: Short circuit/Overload/Over voltage/DC input under voltag/ DC input reverse Polarity

Meanwell DDRH-15-15ST price and specs 15W 150~1500Vdc DC-DC Converter DDRH-15-15 DDRH-15-15P DDRH-15-15DR 1a YCICT

Meanwell DDRH-15-15ST Applications

l  Third rail

l  Charging pile

l  Industrial control system

l  Renewable Energy System

l  Electro-mechanical apparatus

l  Energy storage system (ESS)

l  DC bus centralized application

l  Photovoltaic power generation

l  High voltage frequency conversion

l  Semiconductor fabrication equipment

Meanwell DDRH-15-15ST price and specs 15W 150~1500Vdc DC-DC Converter DDRH-15-15 DDRH-15-15P DDRH-15-15DR YCICT

Meanwell DDRH-15-15ST Mechanical Diagram

Meanwell DDRH-15-15ST price and datasheet 15W 150~1500Vdc DC-DC Converter DDRH-15-15 DDRH-15-15P DDRH-15-15DR YCICT
