DDRH-120-32
36.96
Details

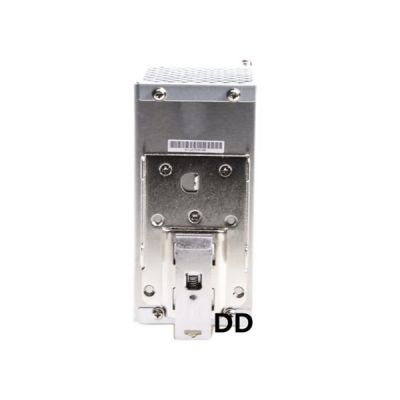

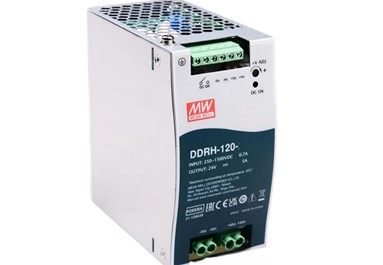

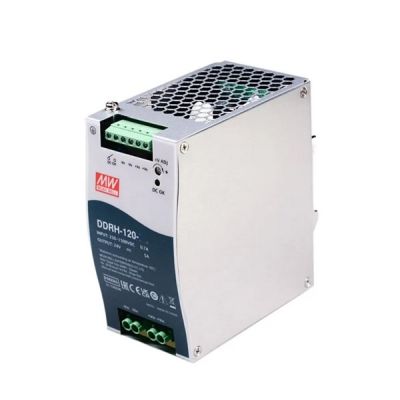

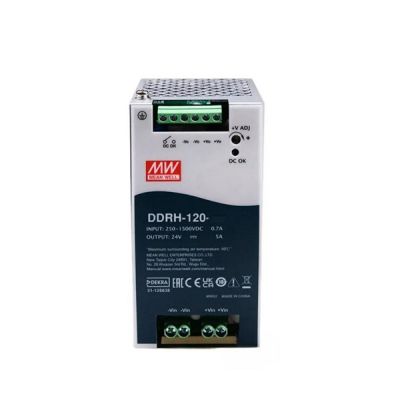

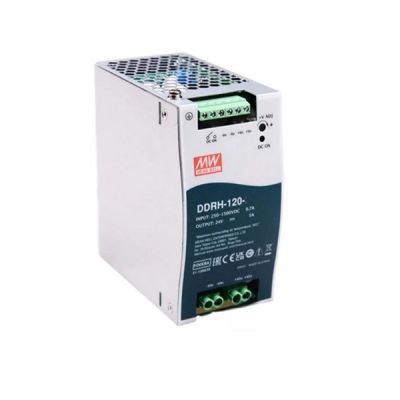

Meanwell DDRH-120-32 is a high reliable DC-DC converter with 32V3.75A0-3.75A120W240mVp-p30-36V2000μF. The unit highlights DIN rail type, 250~1500Vdc ultra-high input, and supplies stable working voltage for the load. At the same time, it is suitable to be mounted on TS-35/7.5 or 15 rails. The main merits are as following: easy to install DIN rail type, narrow width (63mm) in slim design, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. Apart from them, DDRH-120-32 is compliant with BS EN/EN61000-6-2 standard regarding immunity for industrial environments. The item is ideal for industrial automation, surveillance, telecommunication, and therefore can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting, DC bus centralized application, ESS, charging pile, railway and so forth.
Meanwell DDRH-120-32 Encoding
| DDRH | Series Name |
| 120 | Rated Wattage |
| 32 | Output Voltage ( 12V/24V/32V/48V) |
Meanwell DDRH-120-32 Specifications
| MODEL | DDRH-120-32 | |
| OUTPUT | DC VOLTAGE | 32V |
| RATED CURRENT | 3.75A | |
| CURRENT RANGE | 0-3.75A | |
| RATED POWER | 120W | |
| RIPPLE & NOISE (max.) | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 30-36V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| EXTERNAL CAPACITANCE LOAD (Max.) | 2000μF | |
| INPUT | VOLTAGE RANGE | 250~1500Vdc |
| EFFICIENCY (Typ.) 300Vdc | 90.00% | |
| EFFICIENCY (Typ.) 800Vdc | 91.00% | |
| EFFICIENCY (Typ.) 1500Vdc | 87.00% | |
| INRUSH CURRENT (max.) | COLD START 300A /1500Vdc 200A/800Vdc 70A/250Vdc | |
| EXTERNAL INPUT FUSE | 4A/1500VDC, required(Please refer to page 4 for more details) | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Hiccup mode when output voltage<55%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage |
||
| OVER VOLTAGE | 40-48V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER TEMPERATURE | Protection type : Hiccup mode, recovers automatically after fault condition is removed | |
| DC INPUT REVERSE POLARITY | By internal Bridge Diode, no damage, recovers automatically after fault condition removed | |
| DC INPUT UNDER VOLTAGE LOCKOUT | Under voltage protection range:200 ~ 230Vdc , Under voltage release range:230 ~ 245Vdc | |
| FUNCTION | DC OK SIGNAL | Relay contact rating (max.) : 30V / 1A resistive |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +80℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | |
| VIBRATION | Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | |
| OPERATING ALTITUDE | 5000 meters /OVCⅡ | |
| OVER VOLTAGE CATEGORY | OVCⅡ2000m; According to EN62109-1 | |
| SAFETY&EMC | SAFETY STANDARDS | IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved; Design refer to UL1741 (By request) |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG :2KVAC O/P-FG :2KVAC O/P-DC OK:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 257.2 hrs min. MIL-HDBK-217F (25℃); 1596.3 hrs min. Telcordia TR/SR-332 (Bellcore) (25℃) |
| DIMENSION | 63*125.2*115mm (W*H*D) | |
| PACKING | 0.845Kg; 12pcs/12.6Kg/1.02CUFT | |
Meanwell DDRH-120-32 Features
l Over voltage category II
l Operating altitude up to 5000 meters
l DC OK relay contact
l Conformal coating
l 3 years warranty
l 250~1500Vdc 6:1 ultra-wide input range
l Withstand 1700Vdc surge input for 10 seconds
l 63mm slim width
l Fanless design, cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l -40~+80℃ ultra-wide operating temperature (>+50'C derating)
l 4KVac I/O high isolation (Reinforced isolation)
l DC output voltage adjustable (12~15V, 24~29V, 30~36V, 48~58V)
l Protections: Short circuit/Overload/Over voltage/Over temperature/DC input under voltage/DC input reverse polarity
Meanwell DDRH-120-32 Applications
l Photovoltaic power generation
l Renewable Energy System
l Charging pile
l Third rail
l High voltage frequency conversion
l Industrial control system
l Semiconductor fabrication equipment
l Electro-mechanical apparatus
l DC bus centralized application
l Energy storage system (ESS)
Meanwell DDRH-120-32 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
