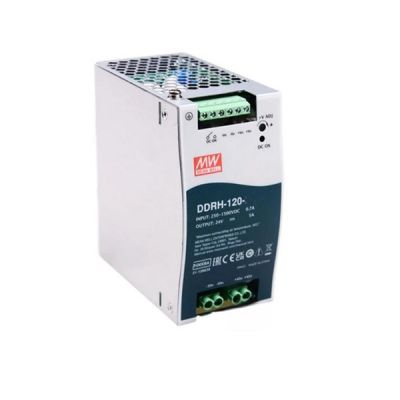

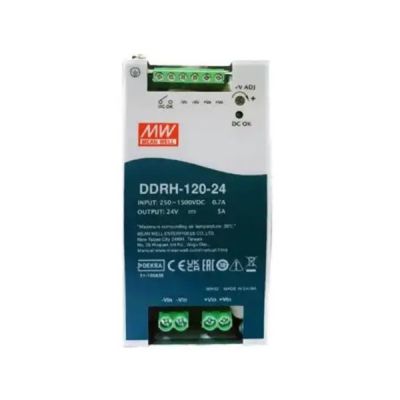

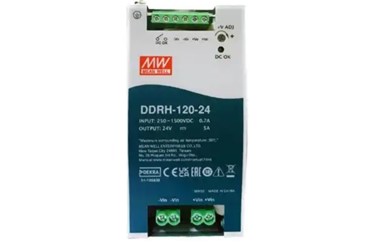

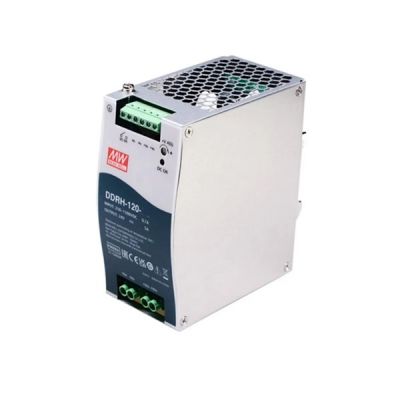

Meanwell 120W High Reliable 250~1500Vdc Ultra Wide Input DIN Rail Type DC-DC Converter with 24V5A0-5A120W240mVp-p24-29V2500μF

- +
Availability:In stock
SKU Meanwell DDRH-120-24
Brand Meanwell
Details

Meanwell DDRH-120-24 is a high reliable DC-DC converter with 24V5A0-5A120W240mVp-p24-29V2500μF. The model features DIN rail type, 250~1500Vdc ultra-high input, and supplies stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or 15 rails. The main merits are as following: easy to install DIN rail type, narrow width (63mm) in slim design, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. Furthermore, DDRH-120-24 is compliant with BS EN/EN61000-6-2 standard regarding immunity for industrial environments. The product is ideal for industrial automation, surveillance, telecommunication, and therefore can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting, DC bus centralized application, ESS, charging pile, railway and so forth.Meanwell DDRH-120-24 price and specs 120W 250~1500Vdc Input DIN Rail DC-DC Converter DDRH-120-12/24/32/48 5a YCICT

Meanwell DDRH-120-24 Encoding

DDRH Series Name
120 Rated Wattage
24 Output Voltage ( 12V/24V/32V/48V)

Meanwell DDRH-120-24 Specifications

MODEL DDRH-120-24
OUTPUT DC VOLTAGE 24V
RATED CURRENT 5A
CURRENT RANGE 0-5A
RATED POWER 120W
RIPPLE & NOISE (max.) 240mVp-p
VOLTAGE ADJ. RANGE 24-29V
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.5%
EXTERNAL CAPACITANCE LOAD (Max.) 2500μF
INPUT VOLTAGE RANGE 250~1500Vdc
EFFICIENCY (Typ.) 300Vdc 89.00%
EFFICIENCY (Typ.) 800Vdc 90.00%
EFFICIENCY (Typ.) 1500Vdc 86.00%
INRUSH CURRENT (max.) COLD START 300A /1500Vdc 200A/800Vdc 70A/250Vdc
EXTERNAL INPUT FUSE 4A/1500VDC, required(Please refer to page 4 for more details)
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Hiccup mode when output voltage<55%, recovers automatically after condition is removed;
Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage
OVER VOLTAGE 33-42V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Protection type : Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Under voltage protection range:200 ~ 230Vdc , Under voltage release range:230 ~ 245Vdc
FUNCTION DC OK SIGNAL Relay contact rating (max.) : 30V / 1A resistive
ENVIRONMENT WORKING TEMP. -40 ~ +80 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 55)
VIBRATION Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE 5000 meters /OVC
OVER VOLTAGE CATEGORY OVC2000m; According to EN62109-1
SAFETY&EMC SAFETY STANDARDS IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved; Design refer to UL1741 (By request)
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG :2KVAC O/P-FG :2KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, 100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035, BS EN/EN61000-6-2
OTHERS MTBF 257.2 hrs min. MIL-HDBK-217F (25); 1596.3 hrs min. Telcordia TR/SR-332 (Bellcore) (25)
DIMENSION 63*125.2*115mm (W*H*D)
PACKING 0.845Kg; 12pcs/12.6Kg/1.02CUFT

Meanwell DDRH-120-24 Features

l  250~1500Vdc 6:1 ultra-wide input range

l  DC OK relay contact

l  Conformal coating

l  3 years warranty

l  Withstand 1700Vdc surge input for 10 seconds

l  63mm slim width

l  Fanless design, cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5 or 15

l  -40~+80℃ ultra-wide operating temperature (>+50'C derating)

l  Over voltage category II

l  Operating altitude up to 5000 meters

l  4KVac I/O high isolation (Reinforced isolation)

l  DC output voltage adjustable (12~15V, 24~29V, 30~36V, 48~58V)

l  Protections: Short circuit/Overload/Over voltage/Over temperature/DC input under voltage/DC input reverse polarity

Meanwell DDRH-120-24 price and specs 120W 250~1500Vdc Input DIN Rail DC-DC Converter DDRH-120-12/24/32/48 5a 24v YCICT

Meanwell DDRH-120-24 Applications

l  Photovoltaic power generation

l  Charging pile

l  Third rail

l  Renewable Energy System

l  High voltage frequency conversion

l  Industrial control system

l  Semiconductor fabrication equipment

l  Electro-mechanical apparatus

l  DC bus centralized application

l  Energy storage system (ESS)

Meanwell DDRH-120-24 price and specs 250~1500Vdc Input DIN Rail DC-DC Converter DDRH-120-12/24/32/48 120W 5a 24v YCICT

Meanwell DDRH-120-24 Mechanical Diagram

Meanwell DDRH-120-24 price and datasheet 250~1500Vdc Input DIN Rail DC-DC Converter DDRH-120-12/24/32/48 120W 5a YCICT
