DDR-60G
22.25
Details

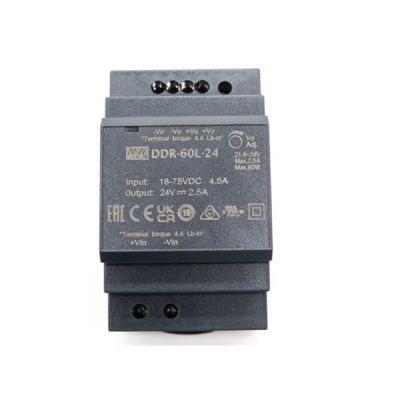

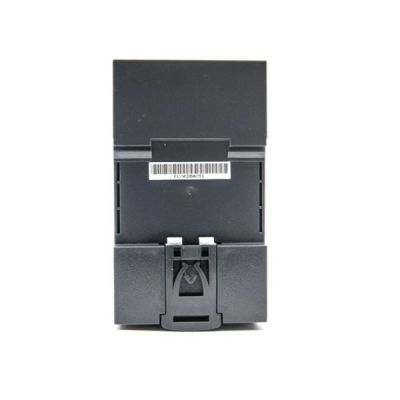

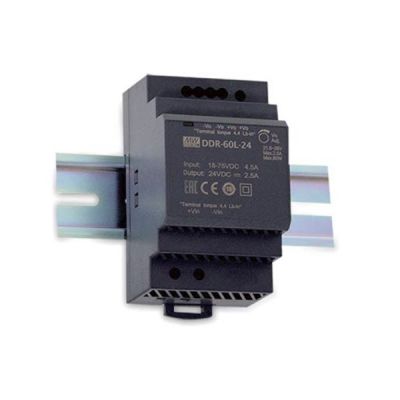

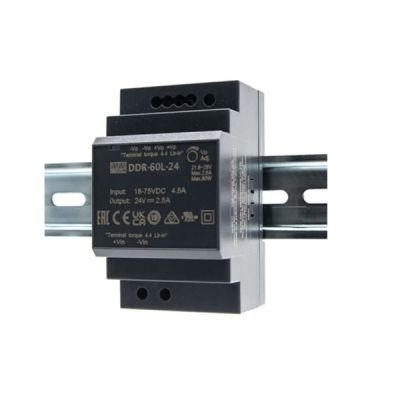

Meanwell DDR-60G Series is a 60W DIN Rail type DC-DC converter. The product features easy installation, ultra slim width (52.5mm), 4:1 ultra-wide input voltage. At the same time, DDR-60G could work under -40~ +85℃ wide operating temperature, 4KVdc I/O isolation, adjustable output voltage (±10%), and full protective functions... etc.
In addition, DDR-60 has two input options: 9~36V/18~75V, and various output options: 5V/12V /15V/24V. The product can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable... etc.
Meanwell DDR-60 Series Encoding
| DDR | Series Name |
| 60 | Rated Wattage |
| G | Input Voltage ( G: 9-36Vdc, L: 18-75Vdc) |
| 24 | Output Voltage (5/12/15/24Vdc) |
Meanwell DDR-60 Series Model Specifications
| MODEL | DDR-60G-5 | DDR-60G-12 | DDR-60G-15 | DDR-60G-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 10.8A | 5A | 4A | 2.5A | |
| CURRENT RANGE | 0-10.8A | 0-5A | 0-4A | 0-2.5A | |
| RATED POWER | 54W | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 60mVp-p | 75mVp-p | 75mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5-5.5V | 9-13.2V | 13.5-16.5V | 21.6-28V | |
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 120ms, 85ms at full load | ||||
| HOLD UP TIME (Typ.) | G-type: 5ms at 24Vdc input | ||||
| EXTERNAL CAPACITANCE .LOAD (Max.) | 6800μF | 4700μF | 3300μF | 2200μF | |
| INPUT | VOLTAGE RANGE | 9~36Vdc | |||
| EFFICIENCY (Typ.) | 87.50% | 91.00% | 91.00% | 91.00% | |
| DC CURRENT (Typ.) | 3A /24Vdc | ||||
| INRUSH CURRENT (Typ.) | 20A /24Vdc | ||||
| PROTECTION | OVERLOAD | 105~135% rated output power | |||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75-7V | 13.8-16.2V | 17.25-20.25V | 28.8-34V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| REVERSE POLARITY | By internal MOSFET, no damage, recovers automatically after fault condition removed | ||||
| UNDER VOLTAGE LOCKOUT | 24Vin (G-type): Power ON>=9V , OFF<=8.5V | ||||
| 48Vin (L-type): Power ON>=18V , OFF<=17V | |||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 5~95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40~+85℃, 5~95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | ||||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||||
| OPERATING ALTITUDE | 5000 meters | ||||
| SAFETY&EMC | SAFETY STANDARDS | IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P: 4KVdc | ||||
| ISOLATION RESISTANCE | I/P-O/P>100M Ohms / 500Vdc / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted | BS EN/EN55032 | Class A | |||
| Radiated | BS EN/EN55032 | Class A for 1m I/O cable , Class B for 30cm I/O cable | |||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | |||
| EMC IMMUNITY | BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2) | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 3, 6KV contact; criteria A | |||
| Radiated | BS EN/EN61000-4-3 | Level 3, 10V/m ; criteria A | |||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, 2KV ; criteria A | |||
| Surge | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line ; criteria A | |||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V ; criteria A | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A/m ; criteria A | |||
| OTHERS | MTBF | 3261.6K hrs min. Telcordia SR-332 (Bellcore) ; 611.1K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 52.5*90*54.5mm (W*H*D) | ||||
| PACKING | 216g; 60pcs/14Kg/0.97CUFT | ||||
Meanwell DDR-60G Series Features
l Width only 52.5mm (3SU)
l 4:1 ultra-wide input range
l -40~+85℃ wide working temperature
l No minimum load required
l DC output adjustable ((±10%)
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l Protections: Short circuit/Overload/Over voltage/Input reverse polarity/Input under voltage protection
l 4KVdc I/O isolation (Reinforced isolation)
l 3 years warranty
Meanwell DDR-60G Series Applications
l Wireless network
l Factory automation
l Electro-mechanical
l Industrial control system
l Telecom or datacom system
l Semi-conductor fabrication equipment
Meanwell DDR-60G Series Mechanical Diagram
