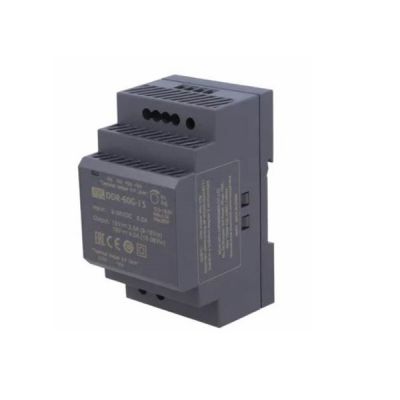

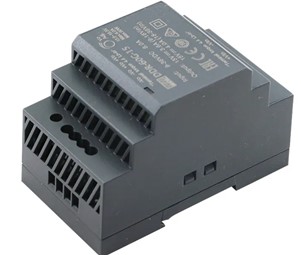

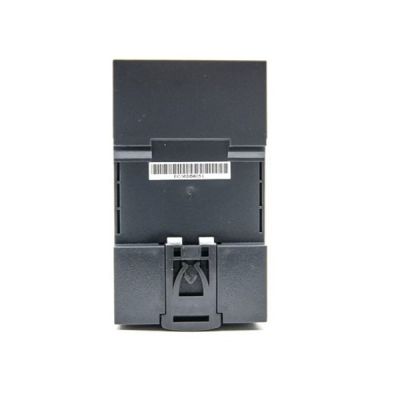

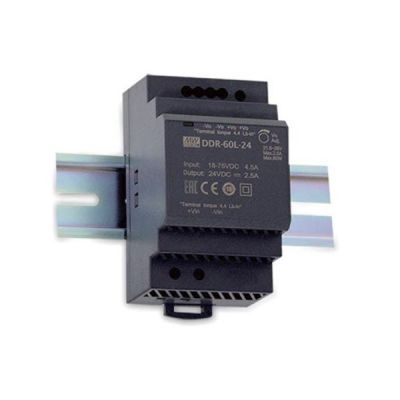

DDR-60G-15
22.66
Details
Meanwell DDR-60G-15 is a 60W DIN Rail type DC-DC converter with 15V4A0-4A60W75mVp-p13.5-16.5V. The item stands out with easy installation, ultra slim width (52.5mm), 4:1 ultra-wide input voltage. Meanwhile, DDR-60G-15 is able to work under -40~ +85℃ wide operating temperature, 4KVdc I/O isolation, adjustable output voltage (±10%), and full protective functions... etc.
Additionally, DDR-60 has two input options: 9~36V/18~75V, and various output options: 5V/12V /15V/24V. The unit can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable... etc.
Meanwell DDR-60G-15 Encoding
| DDR | Series Name |
| 60 | Rated Wattage |
| G | Input Voltage ( G: 9-36Vdc, L: 18-75Vdc) |
| 15 | Output Voltage (5/12/15/24Vdc) |
Meanwell DDR-60G-15 Specifications
| MODEL | DDR-60G-15 | |
| OUTPUT | DC VOLTAGE | 15V |
| RATED CURRENT | 4A | |
| CURRENT RANGE | 0-4A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 75mVp-p | |
| VOLTAGE ADJ. RANGE | 13.5-16.5V | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 120ms, 85ms at full load | |
| HOLD UP TIME (Typ.) | G-type: 5ms at 24Vdc input | |
| EXTERNAL CAPACITANCE .LOAD (Max.) | 3300μF | |
| INPUT | VOLTAGE RANGE | 9~36Vdc |
| EFFICIENCY (Typ.) | 91.00% | |
| DC CURRENT (Typ.) | 3A /24Vdc | |
| INRUSH CURRENT (Typ.) | 20A /24Vdc | |
| PROTECTION | OVERLOAD | 105~135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 17.25-20.25V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| REVERSE POLARITY | By internal MOSFET, no damage, recovers automatically after fault condition removed | |
| UNDER VOLTAGE LOCKOUT | 24Vin (G-type): Power ON>=9V , OFF<=8.5V | |
| 48Vin (L-type): Power ON>=18V , OFF<=17V | ||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 5~95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40~+85℃, 5~95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY&EMC | SAFETY STANDARDS | IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P: 4KVdc | |
| ISOLATION RESISTANCE | I/P-O/P>100M Ohms / 500Vdc / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2) | |
| OTHERS | MTBF | 3261.6K hrs min. Telcordia SR-332 (Bellcore) ; 611.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 52.5*90*54.5mm (W*H*D) | |
| PACKING | 216g; 60pcs/14Kg/0.97CUFT | |
Meanwell DDR-60G-15 Features
l Width only 52.5mm (3SU)
l 3 years warranty
l 4:1 ultra-wide input range
l -40~+85℃ wide working temperature
l No minimum load required
l DC output adjustable ((±10%)
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l 4KVdc I/O isolation (Reinforced isolation)
l Protections: Short circuit/Overload/Over voltage/Input reverse polarity/Input under voltage protection
Meanwell DDR-60G-15 Applications
l Wireless network
l Factory automation
l Electro-mechanical
l Industrial control system
l Telecom or datacom system
l Semi-conductor fabrication equipment
Meanwell DDR-60G-15 Mechanical Diagram
