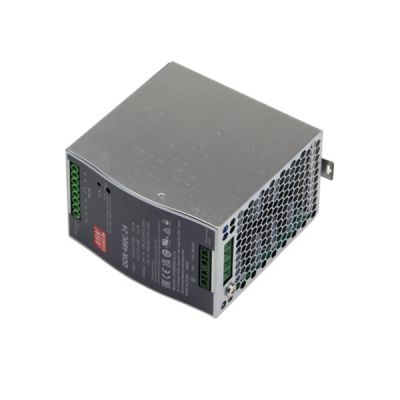

DDR-480B-12
133.25
Details

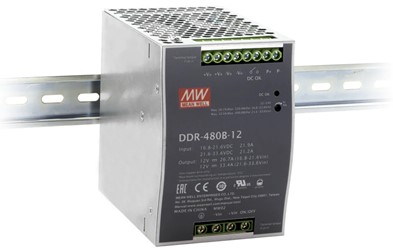

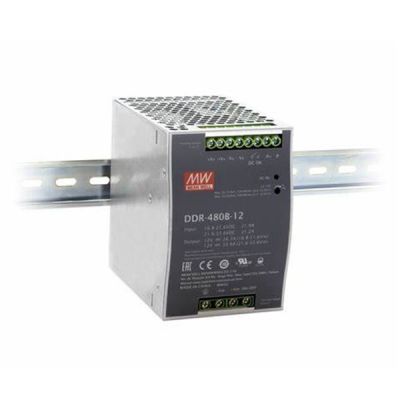

Meanwell DDR-480B-12 is a 480W DIN Rail type DC-DC converter with 12V33.4A0-33.4a400.8W50.1A100mVp-p12-14V. The model adopts a thin rail type chassis design. The main features include easy installation of hanging rails, a face width of only 85.5mm, which greatly reduces the lack of space on the system end rail (TS-35/7.5 or 15), 2:1 wide voltage input, 4000Vdc input/output isolation (with reinforced insulation), -40~+80°C operating temperature, and 150% peak load capacity. At the same time, DDR-480B-12 can be paralleled to 1920W (3+1 units), 5G seismic resistance, and other excellent performance. Additionally, it passes IEC62368-1/UL62638-1, EN55032, EAC TP TC004 and railway EN50155 regulations, which is very suitable for use in railways, trams, MRT, buses and information networks, industrial automation, communication equipment and other industries or with AC/DC rail power supply integrated installation of aesthetic requirements.
What’s more, this series of models has input options: 16.8~33.6V and multiple output options: 12V/24V/48V. Suitable applications include DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
After DDR-15/30/60/120/240 Series DIN rail DC/DC converters, Meanwell launches DDR-480 Series with 480W higher wattage, making DIN-rail DC/DC product line more complete. The design complies with the requirements of railway and industrial control information regulations, and therefore very fit for applications such as railway, industrial control, security control, and information and communication and other fields for DC/DC converter application requirements.
Meanwell DDR-480B-12 Encoding
| DDR | Series Name |
| 480 | Rated Wattage |
| B | Input Voltage (B: 16.8-33.6Vdc, C: 33.6-67.2Vdc, D: 67.2-154Vdc) |
| 12 | Output Voltage (12/24/48Vdc) |
Meanwell DDR-480B-12 Specifications
| MODEL | DDR-480B-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 33.4A | |
| CURRENT RANGE | 0-33.4a | |
| RATED POWER | 400.8W | |
| PEAK CURRENT 5sec | 50.1A | |
| PEAK POWER 5sec | 12Vo: 601.2W, 24Vo / 48Vo : 720W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 12-14V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 60ms | |
| HOLD UP TIME (Typ.) | Please refer to page 6 hold up time (Load de-rating curve ) | |
| INPUT | VOLTAGE RANGE CONTINUOUS | 16.8~33.6Vdc |
| VOLTAGE RANGE 100ms | 14.4~16.8Vdc | |
| EFFICIENCY (Typ.) | 90.00% | |
| DC CURRENT (Typ.) | 23A at 24Vdc | |
| INRUSH CURRENT (Typ.) | 30A | |
| INTERRUPTION OF VOLTAGE SUPPLY | EN50155: 2017-B/C/D type comply with S2 level (10ms) at full load | |
| PROTECTION | OVERLOAD | Normally works within 150% rated output power for more than 5 seconds and then constant current protection 105~135% rated output power with auto-recovery |
| OVER VOLTAGE | 14.4-17.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| REVERSE POLARITY | By internal, MOSFET, no damage, recovers automatically after fault condition is removed | |
| UNDER VOLTAGE LOCKOUT | 24V in (B - type) :Power ON>=16.8V, OFF<=16.5V | |
| FUNCTION | DC OK REALY CONTACT RATINGS (max.) | 30Vdc/1A resistive load |
| CURRENT SHARING | Up to 1920W (3+1 units). Please refer to the Function Manual | |
| REMOTE ON-OFF CONTROL | Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP. | -40~+80℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 5~95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40~+85℃, 5~95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373 | |
| OPERATING ALTITUDE | 5000 meters / OVCⅡ | |
| SAFETY&EMC | SAFETY STANDARDS | UL 62368-1, IEC 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVdc I/P-FG:2.5KVdc O/P-FG:0.71KVdc | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500Vdc / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| RAILWAY STANDARD | Compliance to BS EN/EN45545-2 for fire protection ; Meet BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC | |
| OTHERS | MTBF | 750.3K hrs min. Telcordia SR-332 (Bellcore) ; 101.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 85.5*125.2*129.2mm (W*H*D) | |
| PACKING | 1.375 Kg ; 8pcs/12Kg/0.95CUFT | |
Meanwell DDR-480B-12 Features
l Width only 85.5mm
l 4KVdc I/O isolation (Reinforced isolation)
l DC OK relay contact
l Remote ON-OFF control
l Operating attitude up to 5000 meters
l 3 years warranty
l 2:1 wide input range
l -40~+80℃ wide operating temperature
l 150% peak load capability
l Current sharing up to 1920W (3+1)
l DC output adjustable
l Cooling by free air convection

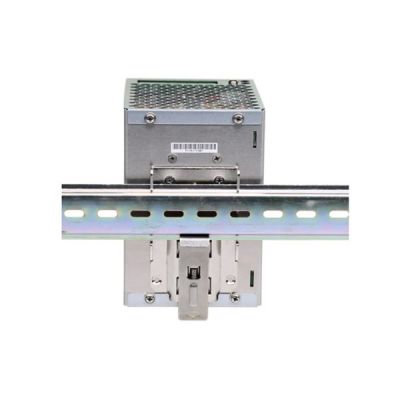

l Can be installed on DIN rail TS-35/7.5 or 15
l Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
l Protections: Short circuit/Overload/Over voltage/Over temperature/Input reverse polarity/Input under voltage protection
Meanwell DDR-480B-12 Applications
l Bus, tram, metro or railway system
l Industrial control system
l Semi-conductor fabrication equipment
l Factory automation
l Electro-mechanical
l Wireless network
l Telecom or datacom system
Meanwell DDR-480B-12 Mechanical Diagram
