DDR-240D-48
51.18

DDR-240D-48

$51.18

Meanwell 240W DIN Rail Type DC-DC Converter with 48V5A0-5A240W7.5A360W (3sec)100mVp-p48-56V±1.0%±0.5%±1.0%500ms, 60ms

- +
Availability:In stock
SKU Meanwell DDR-240D-48
Brand Meanwell
Details

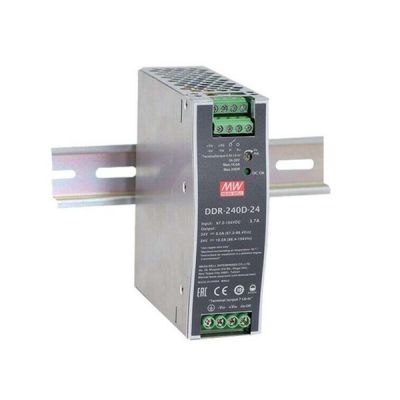

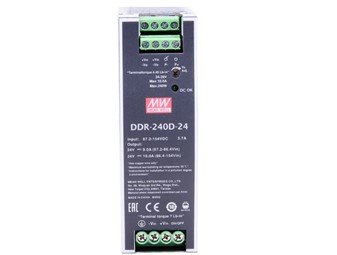

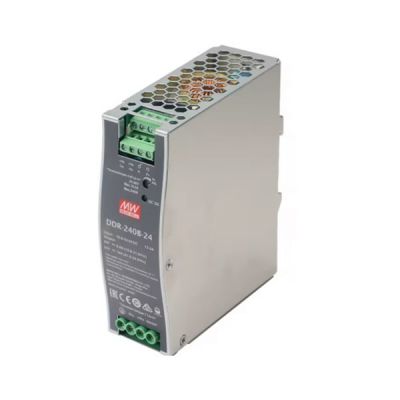

Meanwell DDR-240D-48 is a 240W DIN Rail type DC-DC converter with 48V5A0-5A240W7.5A360W (3sec)100mVp-p48-56V. The item outstands ultra-thin rail type chassis design. The main features include easy installation of hanging rails, a face width of only 40mm, which greatly reduces the lack of space on the system end rail (TS-35/7.5 or 15), 2:1 wide voltage input, 4000VDC input/output isolation (with reinforced insulation), -40~+70°C operating temperature, and 150% peak load capacity. What’s more, DDR-240D-48 can be paralleled to 960W (3+1 units), and withstands 5G resistance... etc. The design also passes IEC62368-1/EN55032, EAC TP TC004 and railway EN50155 regulations certification, which could be used for industrial & railway control, security control, communication system and other fields.
In addition, this series of models has input options: 67.2-154Vdc and two output options: 24V/48V. Suitable applications include to DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.

Meanwell DDR-240D-48 price and specs 240W DIN Rail DC-DC Converter DDR-240D-24 DDR-240C-24/48 DDR-240B-24/48 ycict

Meanwell DDR-240D-48 Encoding

DDR Series Name
240 Rated Wattage
D Input Voltage (B: 16.8-33.6Vdc, C: 33.6-67.2Vdc, D: 67.2-154Vdc)
48 Output Voltage (24/48Vdc)

Meanwell DDR-240D-48 Specifications

MODEL DDR-240D-48
OUTPUT DC VOLTAGE 48V
RATED CURRENT 5A
CURRENT RANGE 0-5A
RATED POWER 240W
PEAK CURRENT 7.5A
PEAK POWER 360W (3sec)
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE ADJ. RANGE 48-56V
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 500ms, 60ms
HOLD UP TIME (Typ.) Please refer to page 6 Hold up Time( Load de-rating curve )
INPUT VOLTAGE RANGE CONTINUOUS 67.2-154Vdc
VOLTAGE RANGE 100ms 66-67.2Vdc
EFFICIENCY (Typ.) 92.50%
DC CURRENT (Typ.) 2.5A at 110Vdc
INRUSH CURRENT (Typ.) 30A
INTERRUPTION OF VOLTAGE SUPPLY EN50155:2007-B/C- type comply with S2 level (10ms) at 70% load ; D-type comply with S2 level (10ms) at full load
EN50155:2017-Comply with S1 level
PROTECTION OVERLOAD Normally works within 150% rated output power for more than 3 seconds and then constant current protection 105~135% rated output power with auto-recovery
OVER VOLTAGE 57.6~65V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
UNDER VOLTAGE LOCKOUT 110Vin (D - type): Power ON>=67.2V, OFF<=65V
FUNCTION DC OK REALY CONTACT RATINGS (max.) 30Vdc/1A resistive load
CURRENT SHARING Up to 960W (3+1 units). Please refer to the Function Manual
REMOTE ON-OFF CONTROL Please refer to the Function Manual
ENVIRONMENT WORKING TEMP. -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 5~95% RH non-condensing
STORAGE TEMP., HUMIDITY -40~+85, 5~95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
VIBRATION Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373
OPERATING ALTITUDE 5000 meters
SAFETY&EMC SAFETY STANDARDS IEC 62368-1, UL 62368-1, EAC TP TC 004, AS/NZS 62368.1 approved
WITHSTAND VOLTAGE I/P-O/P:4KVdc I/P-FG:2.5KVdc O/P-FG:0.71KVdc
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500Vdc / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035 , BS EN/EN61000-6-2 (BS EN/EN50082-2)
RAILWAY STANDARD Compliance to BS EN/EN45545-2 for fire protection ; Meet BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC
OTHERS MTBF 1415.6K hrs min. Telcordia SR-332 (Bellcore) ; 189.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 40*125.2*113.5mm (W*H*D)
PACKING 0.76Kg;20psc/16.2Kg/1.16CUFT

Meanwell DDR-240D-48 Features

l  Width only 40mm

l  3 years warranty

l  2:1 wide input range

l  DC OK relay contact

l  Remote ON-OFF control

l  150% peak load capability

l  Current sharing up to 960W (3+1)

l  DC output adjustable

l  Cooling by free air convection

l  -40~+70℃ wide working temperature

l  polarity/Input under voltage protection

l  4KVdc I/O isolation (Reinforced isolation)

l  Can be installed on DIN rail TS -35/7.5or 15

l  Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard

l  Protections: Short circuit/Overload /Over voltage/Over temperature/Input reverse

Meanwell DDR-240D-48 price and specs 240W DIN Rail DC-DC Converter DDR-240D-24 DDR-240C-24/48 DDR-240B-24/48 5a ycict

Meanwell DDR-240D-48 Applications

l  Factory automation

l  Electro-mechanical

l  Wireless network

l  Industrial control system

l  Telecom or datacom system

l  Bus, tram, metro or railway system

l  Semi-conductor fabrication equipment

Meanwell DDR-240D-48 price and specs 240W DIN Rail DC-DC Converter DDR-240D-24 DDR-240C-24/48 DDR-240B-24/48 48v ycict

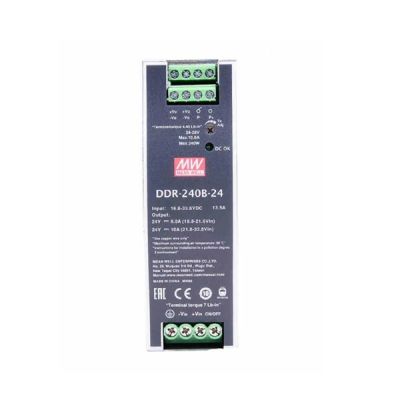

Meanwell DDR-240D-48 Mechanical Diagram
