DDR-240C
55.13
Details

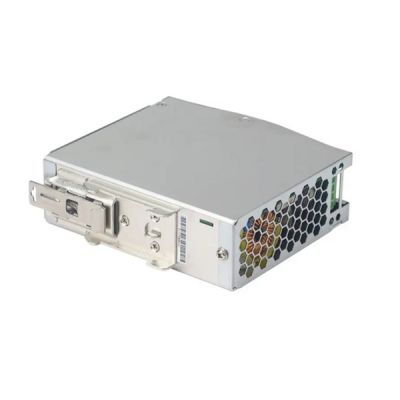

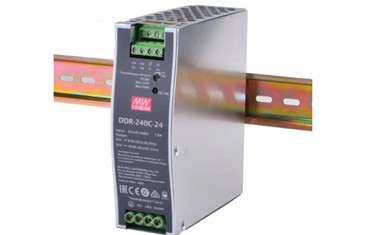

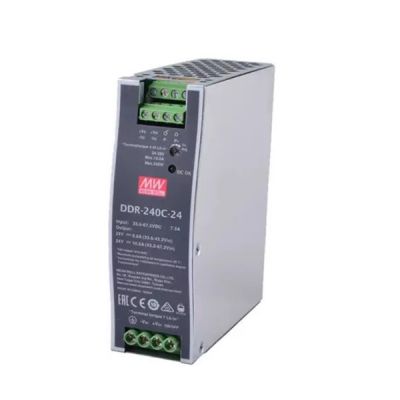

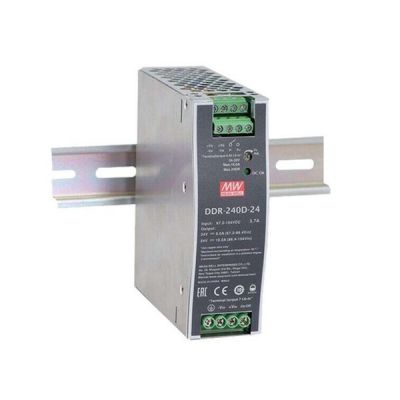

Meanwell DDR-240C Series is a 240W DIN Rail type DC-DC converter. The product adopts ultra-thin rail type chassis design. The main features include easy installation of hanging rails, a face width of only 40mm, which greatly reduces the lack of space on the system end rail (TS-35/7.5 or 15), 2:1 wide voltage input, 4000VDC input/output isolation (with reinforced insulation), -40~+70°C operating temperature, and 150% peak load capacity. At the same time, DDR-240C can be paralleled to 960W (3+1 units), and withstands 5G resistance... etc. The design passes IEC62368-1/EN55032, EAC TP TC004 and railway EN50155 regulations certification, which could be used for industrial&railway control, security control, communication system and other fields.
Apart from them, this series of models has input options: 33.6 ~ 67.2Vdc, and two output options: 24V/48V. Suitable applications include to DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Meanwell DDR-240C Series Encoding
| DDR | Series Name |
| 240 | Rated Wattage |
| C | Input Voltage (B: 16.8-33.6Vdc, C: 33.6-67.2Vdc, D: 67.2-154Vdc) |
| 24 | Output Voltage (24/48Vdc) |
Meanwell DDR-240C Series Model Specifications
| MODEL | DDR-240C-24 | DDR-240C-48 | |||
| OUTPUT | DC VOLTAGE | 24V | 48V | ||
| RATED CURRENT | 10A | 5A | |||
| CURRENT RANGE | 0-10A | 0-5A | |||
| RATED POWER | 240W | 240W | |||
| PEAK CURRENT | 15A | 7.5A | |||
| PEAK POWER | 360W (3sec) | ||||
| RIPPLE & NOISE (max.) | 80mVp-p | 100mVp-p | |||
| VOLTAGE ADJ. RANGE | 24-28V | 48-56V | |||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | |||
| LINE REGULATION | ±0.5% | ±0.5% | |||
| LOAD REGULATION | ±1.0% | ±1.0% | |||
| SETUP, RISE TIME | 500ms, 60ms | ||||
| HOLD UP TIME (Typ.) | Please refer to page 6 Hold up Time( Load de-rating curve ) | ||||
| INPUT | VOLTAGE RANGE CONTINUOUS | 33.6 ~ 67.2Vdc | |||
| VOLTAGE RANGE 100ms | 28.8 ~33.6Vdc | ||||
| EFFICIENCY (Typ.) | 91% | 92% | |||
| DC CURRENT (Typ.) | 5.6A at 48Vdc | ||||
| INRUSH CURRENT (Typ.) | 30A | ||||
| INTERRUPTION OF VOLTAGE SUPPLY | EN50155:2007-B/C- type comply with S2 level (10ms) at 70% load ; D-type comply with S2 level (10ms) at full load | ||||
| EN50155:2017-Comply with S1 level | |||||
| PROTECTION | OVERLOAD | Normally works within 150% rated output power for more than 3 seconds and then constant current protection 105~135% rated output power with auto-recovery | |||
| OVER VOLTAGE | 28.8-35V | 57.6 ~ 65.0V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||
| UNDER VOLTAGE LOCKOUT | 48Vin (C - type): Power ON>=33.6V, OFF<=33V | ||||
| FUNCTION | DC OK REALY CONTACT RATINGS (max.) | 30Vdc/1A resistive load | |||
| CURRENT SHARING | Up to 960W (3+1 units). Please refer to the Function Manual | ||||
| REMOTE ON-OFF CONTROL | Please refer to the Function Manual | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 5~95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40~+85℃, 5~95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | ||||
| VIBRATION | Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373 | ||||
| OPERATING ALTITUDE | 5000 meters | ||||
| SAFETY&EMC | SAFETY STANDARDS | IEC 62368-1, UL 62368-1, EAC TP TC 004, AS/NZS 62368.1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVdc I/P-FG:2.5KVdc O/P-FG:0.71KVdc | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500Vdc / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted | BS EN/EN55032 | Class B | |||
| Radiated | BS EN/EN55032 | Class B | |||
| Voltage Flicker | BS EN/EN61000-3-3 | --- | |||
| Harmonic Current | --- | --- | |||
| EMC IMMUNITY | BS EN/EN55035 , BS EN/EN61000-6-2 (BS EN/EN50082-2) | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 3, 6KV contact; criteria A | |||
| Radiated | BS EN/EN61000-4-3 | Level 3, 10V/m ; criteria A | |||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, 2KV ; criteria A | |||
| Surge | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-FG ;criteria A | |||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V ; criteria A | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A/m ; criteria A | |||
| RAILWAY STANDARD | Compliance to BS EN/EN45545-2 for fire protection ; Meet BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC | ||||
| OTHERS | MTBF | 1415.6K hrs min. Telcordia SR-332 (Bellcore) ; 189.9K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 40*125.2*113.5mm (W*H*D) | ||||
| PACKING | 0.76Kg;20psc/16.2Kg/1.16CUFT | ||||
Meanwell DDR-240C Series Features
l Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
l Width only 40mm
l 2:1 wide input range
l -40~+70℃ wide working temperature
l 150% peak load capability
l Current sharing up to 960W (3+1)
l DC output adjustable
l Cooling by free air convection
l Can be installed on DIN rail TS -35/7.5or 15
l 4KVdc I/O isolation (Reinforced isolation)
l DC OK relay contact
l Remote ON-OFF control
l 3 years warranty
l Protections: Short circuit/Overload /Over voltage/Over temperature/Input reverse polarity/Input under voltage protection
Meanwell DDR-240C Series Applications
l Factory automation
l Electro-mechanical
l Wireless network
l Industrial control system
l Telecom or datacom system
l Bus, tram, metro or railway system
l Semi-conductor fabrication equipment

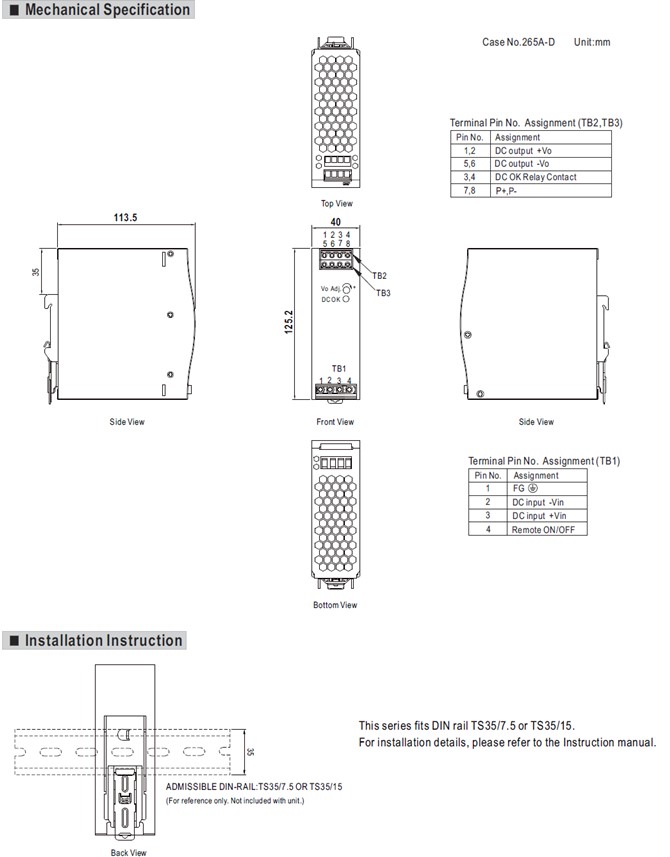

Meanwell DDR-240C Series Mechanical Diagram
