DDR-120B
36.65
Details

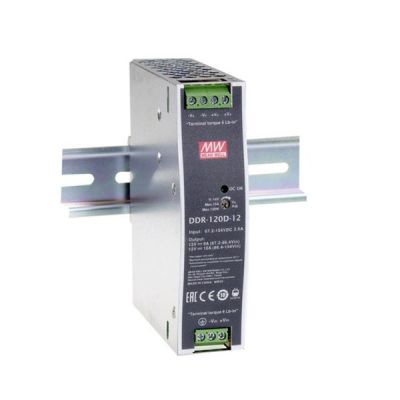

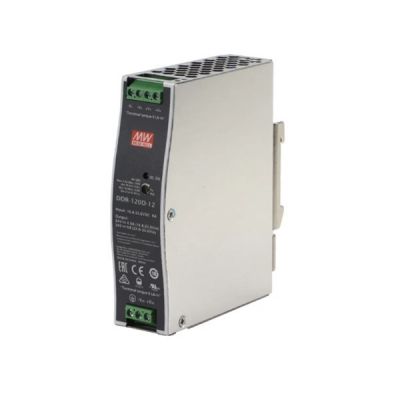

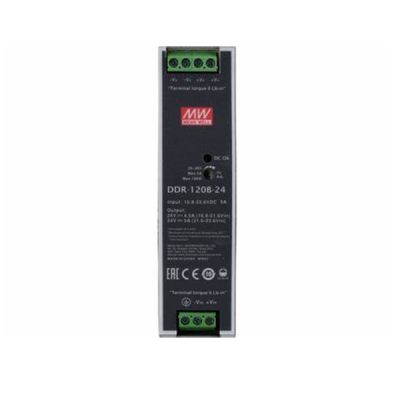

Meanwell DDR-120B Series is a 120W DIN Rail type DC-DC converter. The product highlights easy installation, ultra slim width (32mm), and 2:1 wide input voltage. At the same time, DDR-120B is designed fanless, and could work under -40~+70 ℃ wide operating temperature, 4KVdc I/O isolation, 150% peak load, adjustable output voltage and full protective functions.
What's more, this series of models has input options:16.8~33.6V, and various output options: 12V/24V/48V. The unit can be used for industrial & railway control, security control, communication system and other fields. Suitable applications include DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable .. etc.
Meanwell DDR-120B Series Encoding
| DDR | Series Name |
| 120 | Rated Wattage |
| B | Input Voltage ( A: 9-18Vda, B: 16.8-33.6Vdc, C: 33.6-67.2Vdc, D: 67.2-154Vdc) |
| 24 | Output Voltage (12/24/48Vdc) |
Meanwell DDR-120B Series Model Specifications
| MODEL | DDR-120B-12 | DDR-120B-24 | DDR-120B-48 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 10A | 5A | 2.5A | |
| CURRENT RANGE | 0-10A | 0-5A | 0-2.5A | |
| RATED POWER | 120W | 120W | 120W | |
| PEAK CURRENT | 15A | 7.5A | 3.75A | |
| PEAK POWER | 180W (3sec.) | |||
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 50mVp-p | |
| VOLTAGE ADJ. RANGE | 9-14V | 24-28V | 48-56V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 500ms, 60ms at 24Vdc | |||
| HOLD UP TIME (Typ.) | Please refer to page 7 Hold up Time ( Load de-rating curve ) | |||
| INPUT | VOLTAGE RANGE | 16.8~33.6Vdc | 16.8~33.6Vdc | 16.8~33.6Vdc |
| EFFICIENCY (Typ.) | 89.00% | 89.50% | 91.00% | |
| DC CURRENT (Typ.) | 5.6A at 24Vdc | |||
| INRUSH CURRENT (Typ.) | 5A at 24Vdc | |||
| INTERRUPTION OF VOLTAGE SUPPLY | EN50155:2007-comply with S1 level (6ms) at full load, S2 level (10ms) at 70% load | |||
| EN50155:2017-comply with S1 level | ||||
| PROTECTION | OVERLOAD | Normally works within 150% rated output power for more than 3 seconds and then constant current protection 105~135% rated output power with auto-recovery | ||
| OVER VOLTAGE | 14.4~16.8V | 28.8-33.6V | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| REVERSE POLARITY | By internal MOSFET, no damage, recovers automatically after fault condition removed | |||
| UNDER VOLTAGE LOCKOUT | 24V in (B - type) :Power ON>=16.8V , OFF<=16.5V | |||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 5~95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40~+85℃, 5~95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |||
| VIBRATION | Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373 | |||
| OPERATING ALTITUDE | 5000 meters | |||
| SAFETY&EMC | SAFETY STANDARDS | IEC 62368-1, UL 62368-1, EAC TP TC 004, AS/NZS 62368.1 approved; Design refer to UL508 | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVdc I/P-FG:2.5KVdc O/P-FG:2.5KVdc | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500Vdc / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 | Class B | ||
| Radiated | BS EN/EN55032 | Class B | ||
| Voltage Flicker | BS EN/EN61000-3-3 | --- | ||
| Harmonic Current | --- | --- | ||
| EMC IMMUNITY | BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2) | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 3, 6KV contact; criteria A | ||
| Radiated | BS EN/EN61000-4-3 | Level 3, 10V/m ; criteria A | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, 2KV ; criteria A | ||
| Surge | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-FG ;criteria A | ||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V ; criteria A | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A/m ; criteria A | ||
| RAILWAY STANDARD | Compliance to BS EN/EN45545-2 for fire protection ; Meet BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC (except for 9~18Vin) | |||
| OTHERS | MTBF | 1769.5K hrs min. Telcordia SR-332 (Bellcore) ; 214.5K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 32*125.2*102mm (W*H*D) | |||
| PACKING | 510g; 28pcs/15.3Kg/1.22CUFT | |||
Meanwell DDR-120B Series Features
l 3 years warranty
l Width only 32mm
l 2:1 wide input range
l 150% peak load capability
l DC output adjustable
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l 4KVdc I/O isolation (Reinforced isolation)
l -40~+70℃ wide working temperature
l Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
l Protections: Short circuit/Overload/Over voltage/Input reverse polarity/Input under voltage protection
Meanwell DDR-120B Series Applications
l Factory automation
l Electro-mechanical
l Wireless network
l Industrial control system
l Telecom or datacom system
l Bus, tram, metro or railway system
l Semi-conductor fabrication equipment
Meanwell DDR-120B Series Mechanical Diagram
