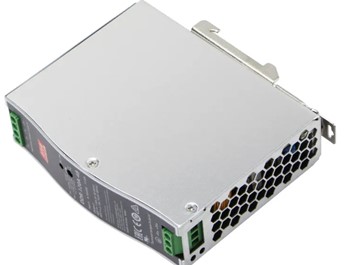

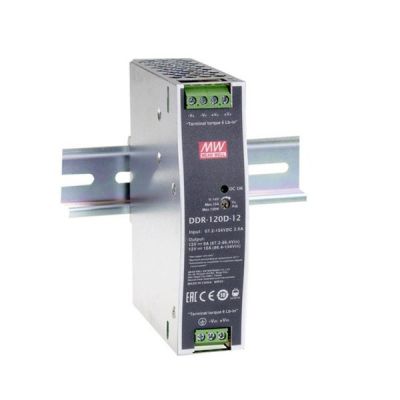

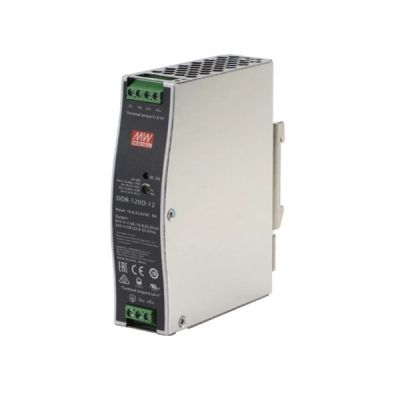

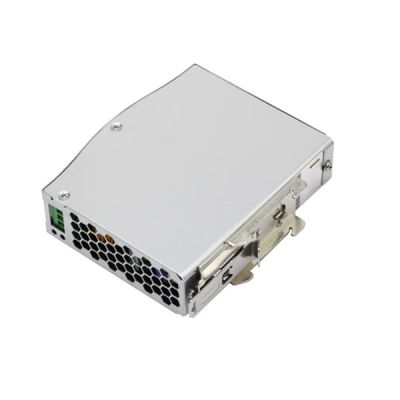

Meanwell DDR-120A-48 is a 120W DIN Rail type DC-DC converter with 48V2.1A0-2.1A100.8W3.15A150W (3sec.)50mVp-p48-56V. The model outstands easy installation, ultra slim width (32mm), and 2:1 wide input voltage. In addition, DDR-120A-48 is designed fanless, and works under -40~+70 ℃ wide operating temperature, 4KVdc I/O isolation, 150% peak load, adjustable output voltage and full protective functions.
Apart from them, this series of models has various input options: 9~18V/16.8~33.6V /33.6~67.2V/67.2~154V, and various output options: 12V/24V/48V. The unit can be used for industrial & railway control, security control, communication system and other fields. Suitable applications include DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable .. etc.
Meanwell DDR-120A-48 Encoding
| DDR | Series Name |
| 120 | Rated Wattage |
| A | Input Voltage ( A: 9-18Vda, B: 16.8-33.6Vdc, C: 33.6-67.2Vdc, D: 67.2-154Vdc) |
| 48 | Output Voltage (12/24/48Vdc) |
Meanwell DDR-120A-48 Specifications
| MODEL | DDR-120A-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 2.1A | |
| CURRENT RANGE | 0-2.1A | |
| RATED POWER | 100.8W | |
| PEAK CURRENT | 3.15A | |
| PEAK POWER | 150W (3sec.) | |
| RIPPLE & NOISE (max.) | 50mVp-p | |
| VOLTAGE ADJ. RANGE | 48-56V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 60ms at 12Vdc | |
| HOLD UP TIME (Typ.) | Please refer to page 7 Hold up Time ( Load de-rating curve ) | |
| INPUT | VOLTAGE RANGE | 9~18Vdc |
| EFFICIENCY (Typ.) | 88.50% | |
| DC CURRENT (Typ.) | 11.2A at 12Vdc | |
| INRUSH CURRENT (Typ.) | 5A at 12Vdc | |
| INTERRUPTION OF VOLTAGE SUPPLY | EN50155:2007-comply with 3ms at full load | |
| EN50155:2017-comply with S1 level | ||
| PROTECTION | OVERLOAD | Normally works within 150% rated output power for more than 3 seconds and then constant current protection 105~135% rated output power with auto-recovery |
| OVER VOLTAGE | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| REVERSE POLARITY | By internal MOSFET, no damage, recovers automatically after fault condition removed | |
| UNDER VOLTAGE LOCKOUT | 12V in (A - type): Power ON>=9V , OFF<=8.5V | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 5~95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40~+85℃, 5~95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373 | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY&EMC | SAFETY STANDARDS | IEC 62368-1, UL 62368-1, EAC TP TC 004, AS/NZS 62368.1 approved; Design refer to UL508 |
| WITHSTAND VOLTAGE | I/P-O/P:4KVdc I/P-FG:2.5KVdc O/P-FG:2.5KVdc | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500Vdc / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2) | |
| RAILWAY STANDARD | Compliance to BS EN/EN45545-2 for fire protection ; Meet BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC (except for 9~18Vin) | |
| OTHERS | MTBF | 1769.5K hrs min. Telcordia SR-332 (Bellcore) ; 214.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 32*125.2*102mm (W*H*D) | |
| PACKING | 510g; 28pcs/15.3Kg/1.22CUFT | |
Meanwell DDR-120A-48 Features
l 3 years warranty
l Width only 32mm
l 2:1 wide input range
l -40~+70℃ wide working temperature
l 150% peak load capability
l DC output adjustable
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l 4KVdc I/O isolation (Reinforced isolation)
l Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
l Protections: Short circuit/Overload/Over voltage/Input reverse polarity/Input under voltage protection
Meanwell DDR-120A-48 Applications
l Bus, tram, metro or railway system
l Industrial control system
l Semi-conductor fabrication equipment
l Factory automation
l Electro-mechanical
l Wireless network
l Telecom or datacom system
Meanwell DDR-120A-48 Mechanical Diagram
