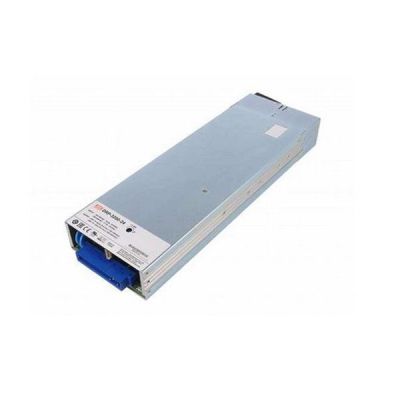

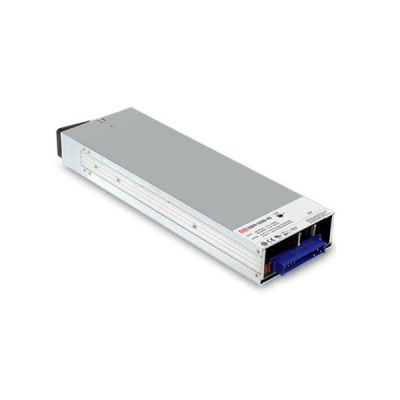

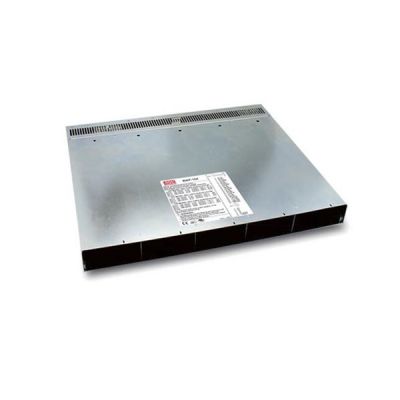

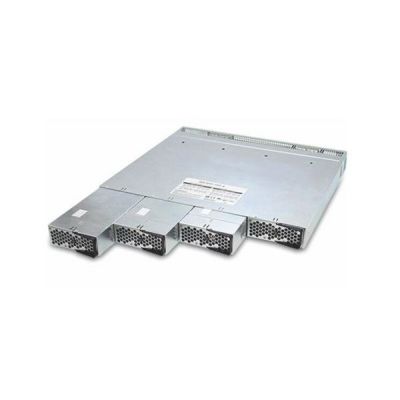

Meanwell DBR-3200 Series is a 3200W single output AC/DC front-end charger. The entire series is designed in 1U low profile and high-power density 37W/inch³. At the same time, the product is an intelligent charger that has pre-loaded programmable charging curves for different types of lead-acid and li-ion batteries. Output programmable function allows the user to adjust the charging voltage and current via the built-in potentiometer or PMBus protocol. Apart from them, DBR-3200 provides various protections such as Battery under voltage, Battery no connection, Short circuit, Over voltage and Over temperature. Additionally, the temperature compensation function is equipped to assure normal and safe system operation. Considering its rack-mountable design, high reliability and excellent quality, Meanwell DBR-3200 Series functions as an ideal solution for the applications such as the charging, backup and constant current source utilizing the rack architecture or central power management.
Meanwell DBR-3200 Series Encoding
| DBR | Series Name |
| 3200 | Output Wattage |
| 24 | OutputVoltage ( 24V/48V) |
| *** | Communications Protocol Option |
| Blank | PMBus Protocol In stock |
| CAN | CANBus Protocol By Request |
Meanwell DBR-3200 Series Model Specifications
| Model | DBR-3200-24 | DBR-3200-48 | ||
| Output | BOOST CHARGE VOLTAGE(Vboost)(default) | 28.8V | 57.6V | |
| FLOAT CHARGE VOLTAGE(Vfloat)(default | 27.6V | 55.2V | ||
| CONSTANT CURRENT(CC)(default) | 110A | 55A | ||
| VOLTAGE ADJ. RANGE | By built-in potentiometer, SVR | |||
| 23.5-30V | 47.5-58.8V | |||
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) | 330-1000A | 180-550A | ||
| LEAKAGE CURRENT FROM BATTERY (Typ.) | <1.5mA | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |||
| EFFICIENCY (Typ.) | 93.50% | 94.50% | ||
| AC CURRENT (Typ.) | 17A/230VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 55A/230VAC | |||
| LEAKAGE CURR ENT | <1.5mA / 230VAC | |||
| OVER VOLTAGE | 31.5 ~ 37.5V | 63 ~ 75V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | |||
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A, tolerance±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance±10%, ripple 450mVp-p | ||
| OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage | |||
| OUTPUT CURRENT PROGRAMMABLE(PC | Adjustment of output voltage is allowable to 20 ~ 100% of rated current | |||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual | |||
| TEMPERATURE COMPENSATION | -3mV /℃/ cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells) | |||
| DC OK SIGNAL | The isolated TTL signal out. Please refer to the Installation Manual | |||
| AC OK SIGNAL | The isolated TTL signal out. Please refer to the Installation Manual | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | ----- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ----- | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | 2KV/Line-Line 4KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 528.8K hrs min. Telcordia SR-332 (Bellcore) ; 44.4K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 325*107*41mm (L*W*H) | |||
| PACKING | 2.65Kg;4pcs/11.6Kg/0.93CUFT | |||
Meanwell DBR-3200 Series Features
l Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
l Built-in default 3 stage charging curves and programmable curve
l Built-in I² C interface, PMBus protocol (Optional CANBus protocol)
l Output voltage and current programmable
l Universal AC input/ Full range
l Built-in active PFC function
l Forced air cooling by built-in thermal controlled DC fans
l Built-in OR-ing FET, support hot swap (hot plug)
l Active current sharing up to 12800W for one 19" rack shelf
l Protections: Battery under voltage /Battery no connection/Short circuit/Over voltage/Over temperature
l Optional conformal coating
l 5 years warranty
Meanwell DBR-3200 Series Applications
l Large scale DC UPS or emergency backup system
l Marine battery charger module
l Electric scooter or vehicle charger station
l Wastewater treatment system
l Electrolysis system

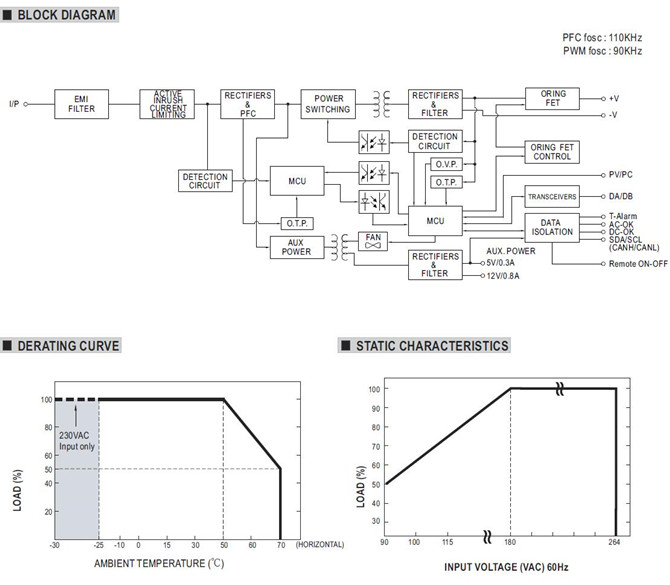

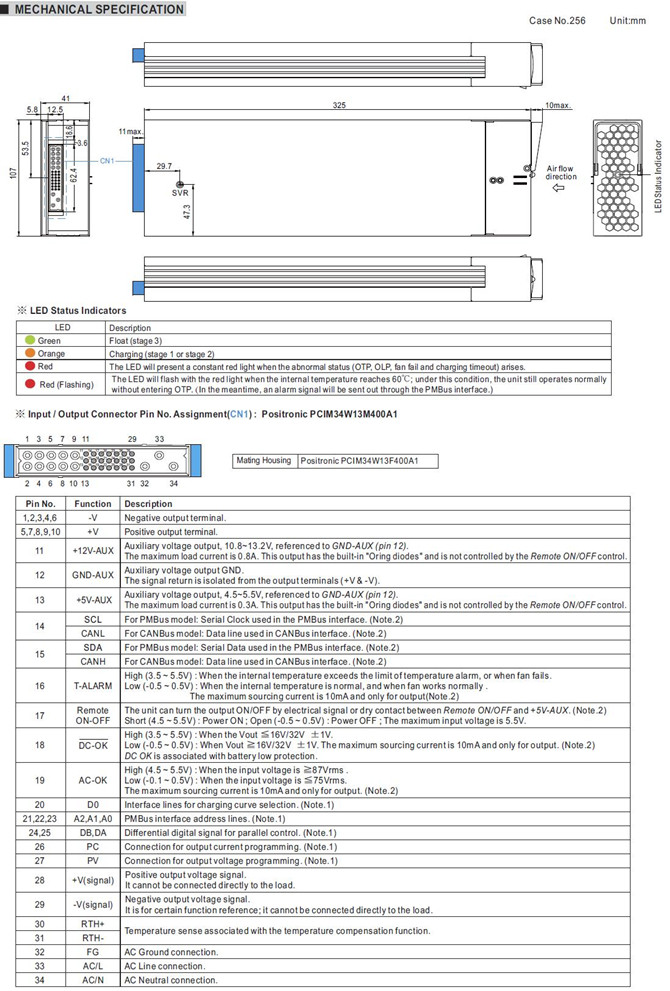

Meanwell DBR-3200 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
