CSP-3000-250
311.26
Details

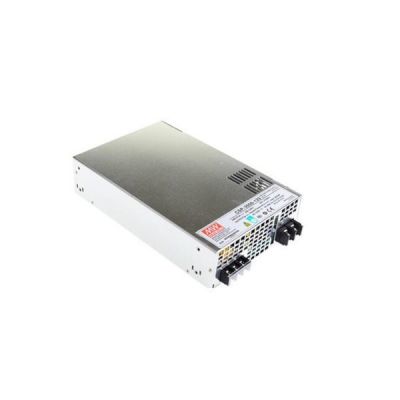

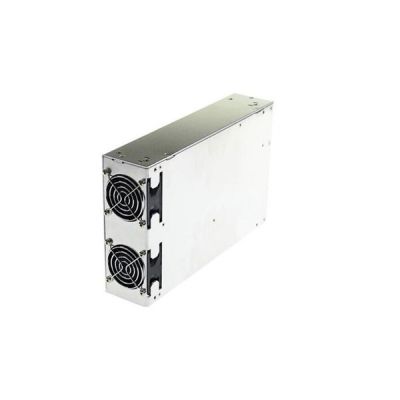

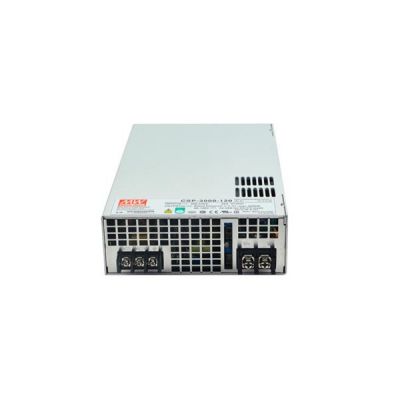

Meanwell CSP-3000-250 is a 3KW single output enclosed type AC/DC power supply with 250V12A0-12A3000V1000 mVp-p125-250V. The item highlights 400V high voltage output, and the initial current value is set at 100%, very suitable for laser, UV curing and charging equipment. What’s more, CSP-3000-250 can work for 180~264VACinput voltage and provided with the DC output mostly demanded from the industry. In addition, Meanwell CSP-3000-250 is equipped with the programmable voltage/current function (PV/PC), which could adjust the output voltage and current in a wide range by applying DC voltage. 500Hz~1kHz). It is cooled by the built-in fan with fan speed control, built-in active current sharing, remote switch control, auxiliary power supply, which greatly increases the design flexibility and application range. Due to its powerful performance, high reliability, and long lifespan, Meanwell CSP-3000-250 is very suitable for communication equipment and centralized systems that require high power and high voltage.
Meanwell CSP-3000-250 Encoding
| CSP | Series Name |
| 3000 | Output wattage |
| 250 | Output Voltage ( 120V/250V/400V) |
Meanwell CSP-3000-250 Specifications
| Model | CSP-3000-250 | |
| Output | DC VOLTAGE | 250V |
| RATED CURRENT | 12A | |
| CURRENT RANGE | 0-12A | |
| RATED POWER | 3000V | |
| RIPPLE & NOISE (max.) | 1000 mVp-p | |
| CONSTANT CURRENT REGION | 125-250V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 80ms / 230VAC at full load | |
| HOLD UP TIME | 10ms at full load | |
| Input | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.95/230VAC at full load | |
| EFFICIENCY (Typ.) | 92.50% | |
| AC CURRENT (Typ.) | 20A/180VAC 16A/230VAC | |
| INRUSH CURRENT (Typ. ) | Cold start 60A/230VAC | |
| LEAKAGE CURR ENT | <0.3mA / 240VAC | |
| PROTECTION | SHORT CIRCUIT | Shut down and latch off o/p voltage, re-power on to recover |
| OVER CURRENT | 105 ~ 120% rated output power | |
| User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 3 seconds, re-power on to recover | ||
| OVER VOLTAGE | 265 ~ 315V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down or re-power on to recover | |
| FUNCTION | AUXILIARY POWER(AUX) | 12V@0.4A |
| ALARM SIGNAL OUTPUT | Power OK signal. Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +65℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,Dekra seal BS EN/EN62368-1, EAC TP TC004, GB4943.1 |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024 ,BS EN/EN61000-6-2 | |
| Others | MTBF | 721.1K hrs min. Telcordia SR-332 (Bellcore) ; 80.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 278*177.8*63.5mm (L*W*H) | |
| PACKING | 4Kg; 4pcs/16Kg/1.81CUFT | |
Meanwell CSP-3000-250 Features
l AC input 180~264VAC
l Conformal coating
l 5 years warranty
l Built-in active PFC function
l High efficiency up to 93%
l Forced air cooling by built-in DC fans
l Output voltage/current programmable
l Active current sharing up to 9000W(2+1)
l Built-in remote ON-OFF control/auxiliary power/power OK signal
l Protections: Short circuit/Overload/Over voltage/Over temperature/Fan failure
Meanwell CSP-3000-250 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
