CMU2-R
28.73
Details

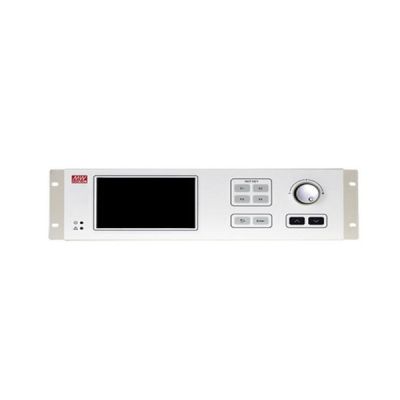

Meanwell CMU2-R is a fully digital intelligent controller. The item performs monitoring and control tasks of the power system. Moreover, it adopts a 7-inch LCD touch panel to achieve intuitive operation, and has developed a new web monitoring page to manage faster and smarter. At the same time, Meanwell CMU2-R not only monitors the output voltage, output current, internal temperature, fan speed, serial number and firmware version of the PSU, but also adjust the output voltage and current. Apart from them, the product is able to remotely control a single power supply or the entire power supply system via LAN or Ethernet. Due to its high quality, high reliability and longevity, Meanwell CMU2-R serves as an ideal solution for applications such as Industrial automation, electric vehicle charging station, aging system, UV curing equipment, laser diode machine, telecommunication system, horticultural lighting, architectural decoration lighting, and so on.
Meanwell CMU2-R Encoding
| CMU2 | Series Name |
| A | Applications |
| A | Burn-in test system (optional) |
| B | Horticulture Lighting (Under development) |
| C | Power Management |
| D | EV Charging ( under development) |
| E | Other applications ( To be defined) |
| R | R: Rackmount Type |
| Blank: Standalone | |
| B,C,D | Extension Cards |
| C: CANbus | |
| P: PMBus | |
| R:RS-232/RS485/USB | |
| #: Blank Slot |
Meanwell CMU2-R Specifications
| Model | CMU2-R | |
| Output | LCD DISPLAY | Display the DC output voltage, current, and status of each PSU |
| LED INDICATOR | Green: Power on/ Normal Red: Fault/ Abnormal | |
| RELAY CONTACT | 4 user programmable channels, 30V/1A | |
| ANALOG OUTPUT | 5 user programmable channels, 0-10V | |
| DIGITAL OUTPUT | 5 user programmable channels, open collector signal | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC; 120-370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| CURRENT | 0.6A / 115VAC 0.4A / 230VAC | |
| ANALOG INPUT | 5 Channels, 0-10V, 12bit resolution | |
| DIGITAL INPUT | 5 Channels, open collector signal | |
| FUNCTION | MONITORED | I/P & O/P Voltage, O/P current, temperature, fan rpm |
| COMM. INTERFACE | PMBus, CANbus, RS-485, RS-232 | |
| SD CARD SLOT | SDHC 32GB Max. | |
| FIRMWARE UPDATE | Update can be done via SD card or Ethernet access | |
| UI LANGUAGE | English, Traditional/Simplified Chinese | |
| LOG | Record data and events | |
| BUZZER | Button click & alarms, mute | |
| COMMUNICATION PROTOCOLS |
PMBUS | PMBus v1.1 |
| CANBUS | CANbus 2.0B | |
| NETWORK | Support IEEE802.3, 10/100base network | |
| EXTENSION CARDS | Extension Cards | |
| ETHERNET SUPPORTED | PROTOCOLS | TCP/IP, NTP, SMTP, Modbus TCP |
| WEB SERVER | Display status of system, parameters, data being logged or download | |
| EXTENSION CARDS | PMBUS | 2 PMBus ports, PMBus V1.1 |
| CANBUS | 2 CANBus ports, CANBus 2.0B | |
| USB/RS-232/RS-485 | 2 USB ports, RS-232 port, RS-485 port | |
| DISPLAY | LCD PANEL | 7" TFT LCD, resolution 800x480, capacitive touch panel |
| Details of settings please refer to user's manual | ||
| ENVIRONMENT | WORKING TEMP | -25 ~ +60℃ |
| STORAGE TEMP. | -40 ~ +60℃ | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | IEC62368-1, BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | |
| ISOLATION RESISTANCE | O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-1(BS EN/EN50082-2), light industry level, criteria A | |
| OTHERS | MTBF | 680K hrs min. Telcordia TR/SR-332 (Bellcore) ; 75.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 483.6*66.3*132mm (L*W*H) | |
| PACKING | 2.16Kg; 6pcs/14Kg/2.91CUFT | |
Meanwell CMU2-R Features
l 5 years warranty
l Support max. 32G SDHC SD card
l Integration on system power
l Support Data/ Event log with date and time
l 7" touch Panel and buttons for easy on-site operation
l Web-based monitor/control UI provided for various applications
l 2 models in 3U 1 9-inch rackmount and standalone configurations
l Ethernet port for on-site or remote monitor and control over the system
l Selectable PMBus, CANbus, RS-485, and RS-232 communication protocols
l Four user programmable relay outputs for conventional remote monitoring or warning
Meanwell CMU2-R Applications
l Industrial automation
l EV Charging station
l Burn-in systems
l UV curing equipment
l Laser diode machines
l Horticulture lighting
l Telecommunication systems
l Building decoration lighting
Meanwell CMU2-R Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
