CMU2 Controller
25.68
Details

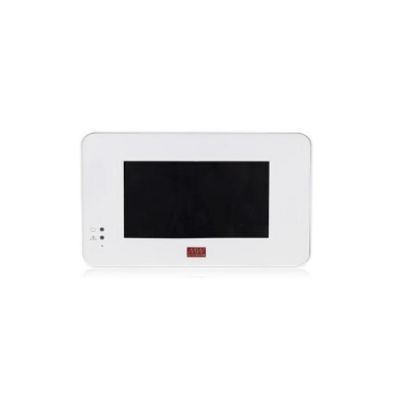

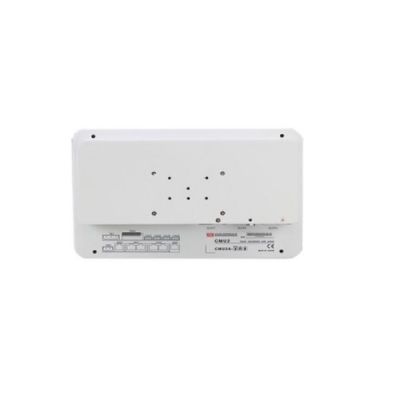

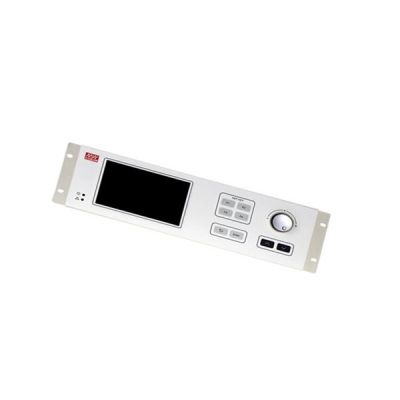

Meanwell CMU2 Controller Series is a fully digital intelligent controller. The series could perform monitoring and control tasks of the power system. It adopts a 7-inch LCD touch panel to achieve intuitive operation, and has developed a new web monitoring page to manage faster and smarter. What’s more, Meanwell CMU2 can not only monitor the output voltage, output current, internal temperature, fan speed, serial number and firmware version of the PSU, but also adjust the output voltage and current. In addition, the series is able to remotely control a single power supply or the entire power supply system via LAN or Ethernet. There are two types of CMU2 available for purchase, namely standalone type and rackmount type. Built-in different firmware and software for different applications Considering its high quality, high reliability and longevity, Meanwell CMU2 Series serves as an ideal solution for applications such as Industrial automation, electric vehicle charging station, aging system, UV curing equipment, laser diode machine, telecommunication system, horticultural lighting, architectural decoration lighting, and so on.
Meanwell CMU2 Series Encoding
| CMU2 | Series Name |
| A | Applications |
| A | Burn-in test system (optional) |
| B | Horticulture Lighting (Under development) |
| C | Power Management |
| D | EV Charging ( under development) |
| E | Other applications ( To be defined) |
| R | R: Rackmount Type |
| Blank: Standalone | |
| B,C,D | Extension Cards |
| C: CANbus | |
| P: PMBus | |
| R:RS-232/RS485/USB | |
| #: Blank Slot |
Meanwell CMU2 Series Model Specifications
| Model | CMU2 | CMU2-R | |
| Output | LCD DISPLAY | Display the DC output voltage, current, and status of each PSU | |
| LED INDICATOR | Green: Power on/ Normal Red: Fault/ Abnormal | ||
| RELAY CONTACT | 4 user programmable channels, 30V/1A | ||
| ANALOG OUTPUT | 5 user programmable channels, 0-10V | ||
| DIGITAL OUTPUT | 5 user programmable channels, open collector signal | ||
| Input | VOLTAGE RANGE | 85 ~ 264VAC; 120-370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| CURRENT | 0.6A / 115VAC 0.4A / 230VAC | ||
| ANALOG INPUT | 5 Channels, 0-10V, 12bit resolution | ||
| DIGITAL INPUT | 5 Channels, open collector signal | ||
| FUNCTION | MONITORED | I/P & O/P Voltage, O/P current, temperature, fan rpm | |
| COMM. INTERFACE | PMBus, CANbus, RS-485, RS-232 | ||
| SD CARD SLOT | SDHC 32GB Max. | ||
| FIRMWARE UPDATE | Update can be done via SD card or Ethernet access | ||
| UI LANGUAGE | English, Traditional/Simplified Chinese | ||
| LOG | Record data and events | ||
| BUZZER | Alarms, mute | Button click & alarms, mute | |
| COMMUNICATION PROTOCOLS |
PMBUS | PMBus v1.1 | |
| CANBUS | CANbus 2.0B | ||
| NETWORK | Support IEEE802.3, 10/100base network | ||
| EXTENSION CARDS | Extension Cards | ||
| ETHERNET SUPPORTED | PROTOCOLS | TCP/IP, NTP, SMTP, Modbus TCP | |
| WEB SERVER | Display status of system, parameters, data being logged or download | ||
| EXTENSION CARDS | PMBUS | 2 PMBus ports, PMBus V1.1 | |
| CANBUS | 2 CANBus ports, CANBus 2.0B | ||
| USB/RS-232/RS-485 | 2 USB ports, RS-232 port, RS-485 port | ||
| DISPLAY | LCD PANEL | 7" TFT LCD, resolution 800x480, capacitive touch panel | |
| Details of settings please refer to user's manual | |||
| ENVIRONMENT | WORKING TEMP | -25 ~ +60℃ | |
| STORAGE TEMP. | -40 ~ +60℃ | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| SAFETY &EMC | SAFETY STANDARDS | IEC62368-1, BS EN/EN62368-1 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | ||
| ISOLATION RESISTANCE | O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-1(BS EN/EN50082-2), light industry level, criteria A | ||
| OTHERS | MTBF | 680K hrs min. Telcordia TR/SR-332 (Bellcore) ; 75.9K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 245*70*164.2mm (L*W*H) | 483.6*66.3*132mm (L*W*H) | |
| PACKING | 1.68Kg; 8pcs/14.4Kg/2.14CUFT | 2.16Kg; 6pcs/14Kg/2.91CUFT | |
Meanwell CMU2 Series Features
l Integration on system power
l 2 models in 3U 1 9-inch rackmount and standalone configurations
l 7" touch Panel and buttons for easy on-site operation
l Ethernet port for on-site or remote monitor and control over the system
l Selectable PMBus, CANbus, RS-485, and RS-232 communication protocols
l Support Data/ Event log with date and time
l Support max. 32G SDHC SD card
l Four user programmable relay outputs for conventional remote monitoring or warning
l Web-based monitor/control UI provided for various applications
l 5 years warranty
Meanwell CMU2 Series Applications
l Industrial automation
l EV Charging station
l Burn-in systems
l UV curing equipment
l Laser diode machines
l Telecommunication systems
l Horticulture lighting
l Building decoration lighting

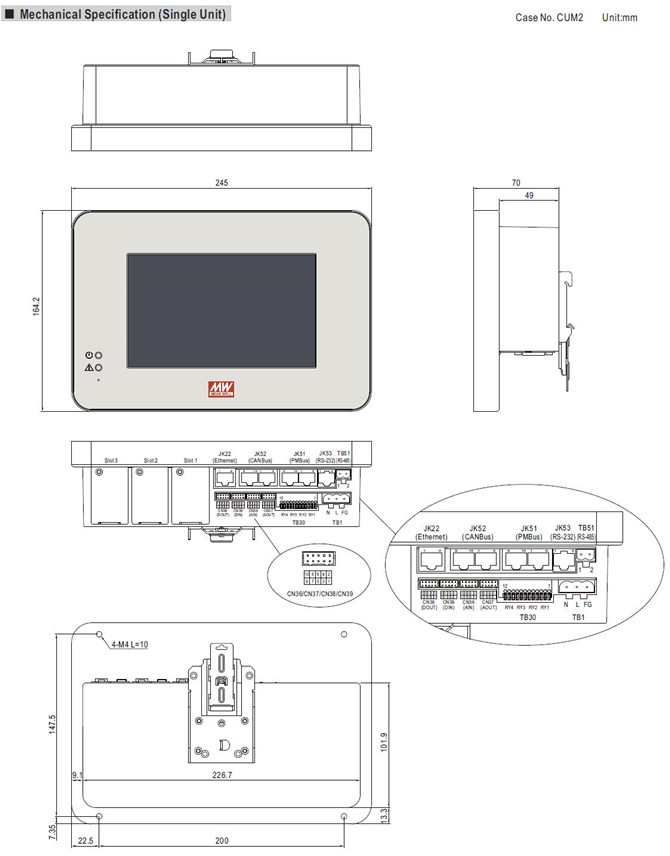

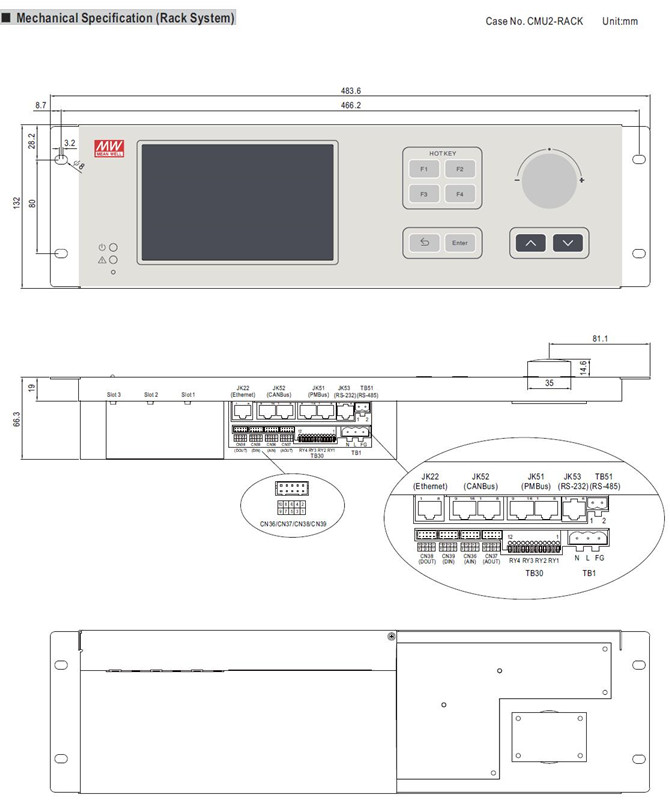

Meanwell CMU2 Series Mechanical Diagram
