MEAN WELL has invested in DIN-rail power supplies in 2000 and has now owned 10-960W power supplies and related accessory modules. The product line is quite complete and ranks among the top in the DIN-rail standard power supply market. However, with the development of urbanization, from a small building to an entire smart city, in order to improve public safety, countries in Europe and the United States have formulated safety regulations for safety control and fire protection systems (EN54-4/ UL2524/ GB17945). MEAN WELL has launched a new 240W/480W all-in-one digital intelligent security control power supply ~DRS-240/480 series.

The biggest feature of DRS-240/ 480 is the multi-functional integrated design of DC voltage power supply, battery charging, DC-UPS, and communication monitoring in a compact size. Other features are: 90 ~ 305Vac input applicable to all parts of the world, in line with safety control regulations and alarm signals , The intelligent mechanism of giving priority to power supply to the load (remaining power to charge the battery), built-in MODBus communication interface, can be used with SBP-001 programmer to intelligently adjust the internal charging parameters, or adjust the 2-stage/3-stage charging and Adjustable 20-100% charging current, suitable for lead-acid or lithium batteries of different capacities, etc. It is a rare rail-type composite function intelligent security control power supply on the market, which can provide emergency communication equipment with continuous information, The best solution for fire emergency lighting, access alarm system, central monitoring, etc.

Product Features

l  All-in-one machine (DC power supply + battery charging + DC uninterruptible power supply + communication monitoring)

l  Full range 90~305VAC input and built-in PFC (for North America 277Vac)

l  Designed to meet UL2524/ EN54-4/ GB17945 signal alarm requirements

l  Adopt Form C relay that meets the requirements of safety control fire regulations

l  When the AC grid is abnormal, the load will give priority to power supply (remaining power is used to charge the battery)

l  AC Fail, DC OK, low battery voltage warning, abnormal charging circuit detection

l  Built-in MOBus communication (optional CANBus)

l  Complete protection functions: output short circuit, overload, over voltage, over temperature (automatic load reduction), disconnection when battery is too low, reverse battery polarity (no damage)

l  Intelligent adjustment of charging parameters (with programmer: SBP-001)

l  Adjustable 20~100% charging current through VR on the panel

l  Adjustable 2-stage or 3-stage charging stages through DIP S.W on the panel

l  -30~+70℃ wide temperature operation

l  Applicable guide rail TS-35/7.5 or TS-35/15

l  Dimensions (W x H x D):

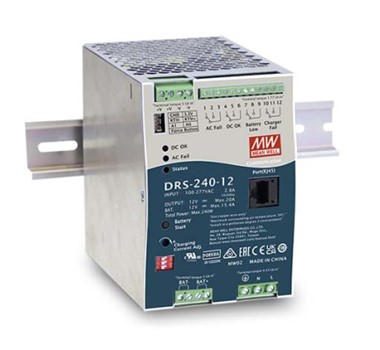

l  DRS-240 85.5x125.2x129.2mm

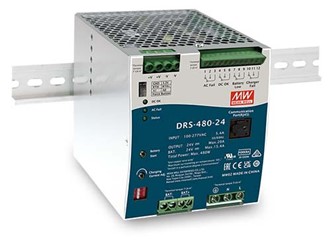

l  DRS-480 110x125.2x150mm

l  3 years warranty
