Since 2019, the gradual popularization of WiFi6 network, compared with WiFi5, the network speed improvement is huge, and at that time, digital products such as routers and mobile phones began to strongly promote the attributes of WiFi6, after several years, now WiFi7 is about to come out and popularize.

WiFi 7 Faster speeds and lower latency WiFi 6 Optical terminal ONT OLT WiFi Router EG8145X6 ycict

1. Rate

WiFi6 has a maximum transmission rate of 9.6Gbps, while WiFi7 can reach 46Gbps.

WiFi 7 Faster speeds and lower latency WiFi 6 Optical terminal ONT OLT WiFi Router EG8145X6 EN8145X6 YCICT

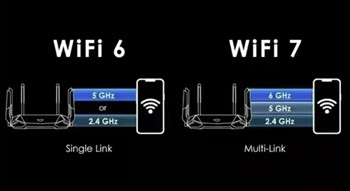

2. Frequency bands

The main frequency bands of WiFi6 are 2.4Ghz, 5Ghz, and 6Ghz, which is the upgraded version of WiFi6E.

The main frequency bands of WiFi 7 are from 1Ghz to 7.25Ghz, and the main frequency bands of WiFi 6 are also included.

3. Channel bandwidth

WiFi6 has 20, 40, 80, 80+80, 160Mhz.

WiFi7 is up to 320Mhz.

4. Modulation mode

WiFi6 is 1024 QAM with OFDMA

WiFi7 is 4096QAM with OFDMA

5. MIMO

WiFi6 supports MU-MIMO, as well as 8 streams of data synchronization.

WiFi7 supports CMU-MIMO, as well as 16 streams of synchronization.

6. Standards

WiFi6 is IEEE 802.11ax

WiFi7 is IEEE 802.11be

It can be seen that from the perspective of various parameters, WiFi 7 is a big upgrade compared to WiFi6, and the summary is faster and lower latency.
