APV-8
2.03
Details

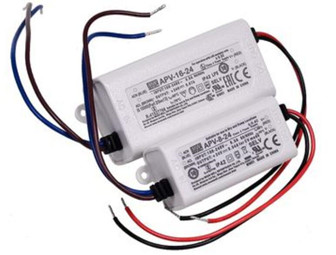

Meanwell APV-8 series is a 8W AC/DC constant voltage mode single output LED power supply. The entire series accepts the full range input 90~264VAC. At the same time, it provides three models with different output voltage 5V, 12V,24V, which the small wattage LED applications use most frequently. Apart from them, APV-8 adopts Class Il design (without FG pin) and the 94V-0 flame retardant plastic enclosure. Considering its high reliability, excellent quality, and competitive price, Meanwell APV-8 Series is ideally fit for the entry-level LED applications.
Meanwell APV-8 Series Encoding
| APV | Series Name |
| 8 | Output Wattage |
| 12 | OutputVoltage |
Meanwell APV-8 Series Model Specifications
| Model | APV-8-5 | APV-8-12 | APV-8-24 | |
| Output | DC VOLTAGE | 5V | 12V | 24V |
| RATED CURRENT | 1.4A | 0.67A | 0.34A | |
| CURRENT RANGE | 0-1.4A | 0-0.67A | 0-0.34A | |
| RATED POWER | 7W | 8.04W | 8.16W | |
| RIPPLE & NOISE (max.) | 250 mVp-p | 250 mVp-p | 300 mVp-p | |
| VOLTAGE ADJ. RANGE | 10-13.5V | 13.5-16.5V | 20-26.4V | |
| VOLTAGE TOLERANCE | ±5.0% | |||
| LINE REGUL ATION | ±1.0% | |||
| LOAD REGULATION | ±2.0% | |||
| SETUP, RISE TIME | 500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load | |||
| HOLD UP TIME | 20ms/230VAC at full load | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |||
| EFFICIENCY (Typ.) | 74.00% | 80.00% | 81.00% | |
| AC CURRENT (Typ.) | 0.15A/230VAC 0.3A/115VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC | |||
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||
| OVERLOAD | Above 105% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16V | 27.6 ~ 32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08,BIS IS15885(except for 5V), BIS IS15885(R-62002178 made in India only), EAC TP TC 004, BS EN/EN 62368-1 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |||
| Others | MTBF | 9638.4K hrs min. Telcordia SR-332 (Bellcore) ; 1631.5K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 60*30*23.5mm(L*W*H) | |||
| PACKING | 0.05Kg;144pcs/7.6Kg/0.70CUFT | |||
Meanwell APV-8 Series Features
l Constant voltage design
l Universal AC input/Full range
l ClassⅡpower unit, no FG
l Fully isolated plastic case
l IP42 design
l Small and compact size
l Cooling by free air convection
l Protections: Short circuit/Overload/Over voltage
l No load power consumption <0.5W
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
Meanwell APV-8 Series Applications
l Suitable for LED related
l fixture or appliance (such as LED Decoration or Advertisement devices)

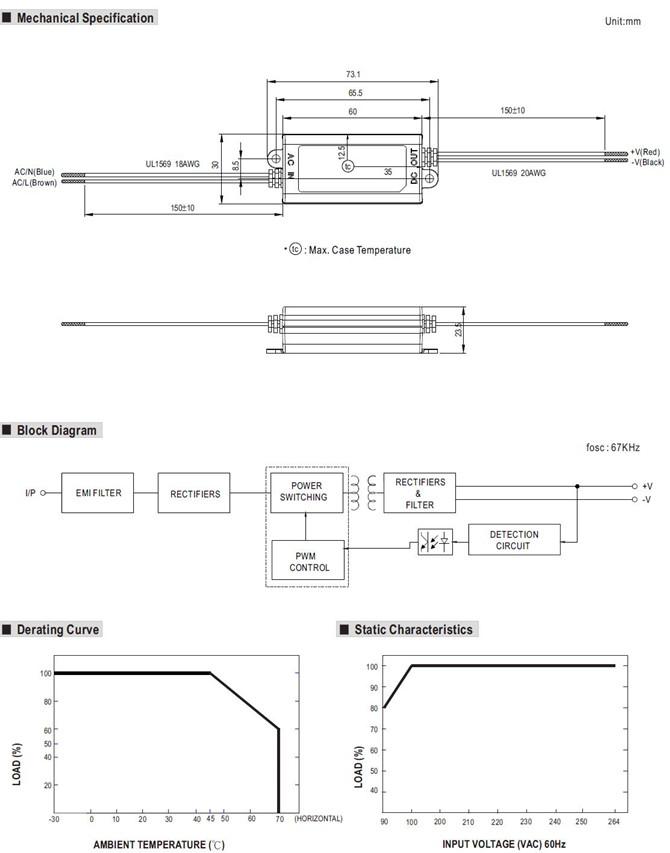

Meanwell APV-8 Series Mechanical Diagram
