APV-8-5
2.03
Details

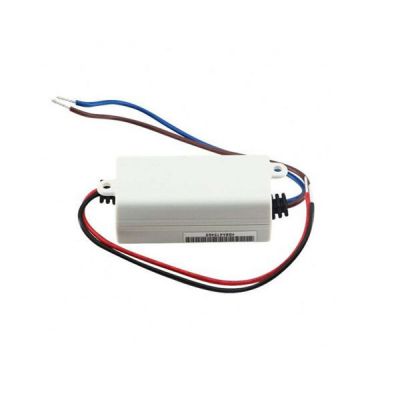

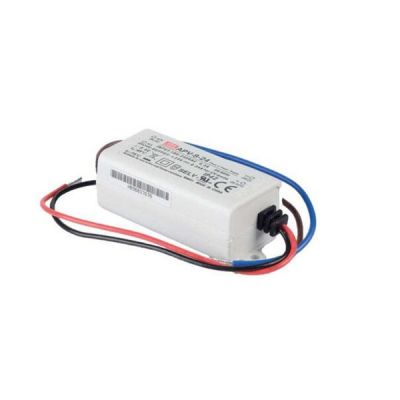

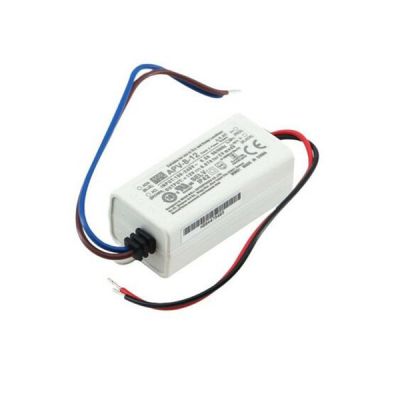

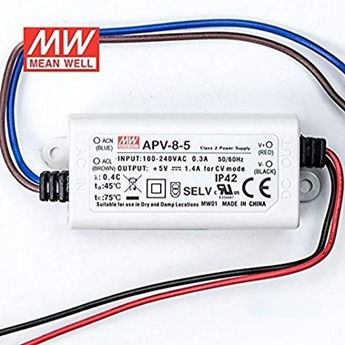

Meanwell APV-8-5 is a 8W AC/DC constant voltage mode single output LED power supply with 5V1.4A0-1.4A7W250 mVp-p10-13.5V. The product accepts the full range input 90~264VAC. At the same time, it provides the model with 5V output voltage which the small wattage LED applications use most frequently. Additionally, APV-8-5 utilizes Class Il design (without FG pin) and the 94V-0 flame retardant plastic enclosure. Due to its high reliability, excellent quality, and competitive price, Meanwell APV-8-5 is ideally suitable for the entry-level LED applications.
Meanwell APV-8-5 Encoding
| APV | Series Name |
| 8 | Output Wattage |
| 5 | OutputVoltage |
Meanwell APV-8-5 Specifications
| Model | APV-8-5 | |
| Output | DC VOLTAGE | 5V |
| RATED CURRENT | 1.4A | |
| CURRENT RANGE | 0-1.4A | |
| RATED POWER | 7W | |
| RIPPLE & NOISE (max.) | 250 mVp-p | |
| VOLTAGE ADJ. RANGE | 10-13.5V | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGUL ATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load | |
| HOLD UP TIME | 20ms/230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 74.00% | |
| AC CURRENT (Typ.) | 0.15A/230VAC 0.3A/115VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVERLOAD | Above 105% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.75 ~ 6.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08,BIS IS15885(except for 5V), BIS IS15885(R-62002178 made in India only), EAC TP TC 004, BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |
| Others | MTBF | 9638.4K hrs min. Telcordia SR-332 (Bellcore) ; 1631.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 60*30*23.5mm(L*W*H) | |
| PACKING | 0.05Kg;144pcs/7.6Kg/0.70CUFT | |
Meanwell APV-8-5 Features
l IP42 design
l 2 years warranty
l Small and compact size
l Cooling by free air convection
l Protections: Short circuit/Overload/Over voltage
l No load power consumption <0.5W
l 100% full load burn-in test
l Low cost, high reliability
l Constant voltage design
l Universal AC input/Full range
l ClassⅡpower unit, no FG
l Fully isolated plastic case
Meanwell APV-8-5 Applications
l Suitable for LED related
l fixture or appliance (such as LED Decoration or Advertisement devices)
Meanwell APV-8-5 Mechanical Diagram
