APV-35-36
7.28
Details

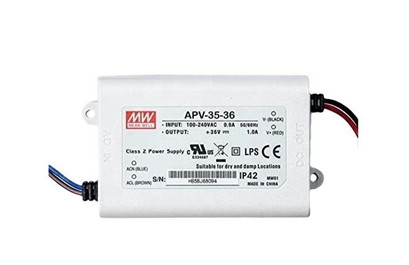

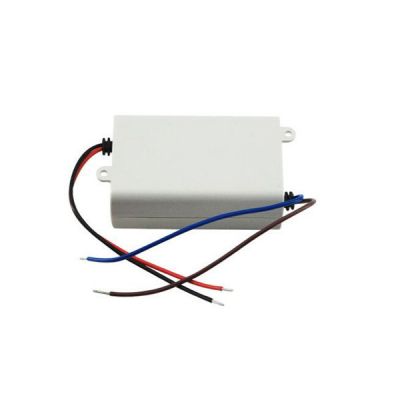

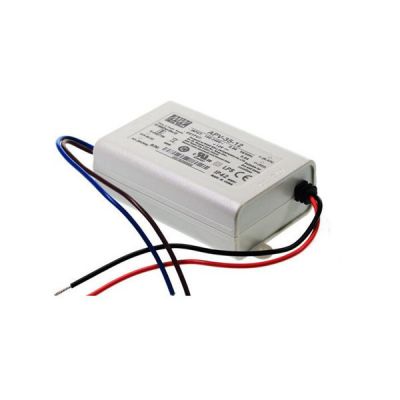

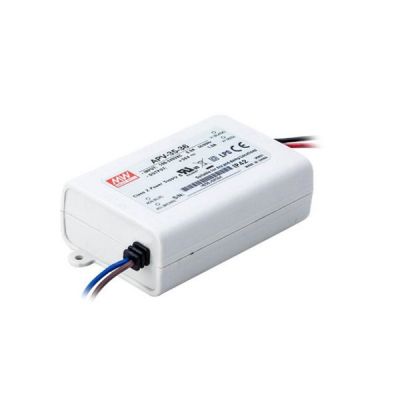

Meanwell APV-35-36 is a 35W AC/DC constant voltage mode single output LED power supply with 36V1A0-1A36W180 mVp-p. The product is designed small and compact size with fully isolated plastic case. Moreover, It accepts the full range input 90~264VAC, and provided with the output voltage 36V, which the small wattage LED applications adapts most frequently. In addition to them, APV-35-36 is able to withstand 300V AC Surge input for 5 seconds and use Class 2 power unit LPS passed. At the same time, the unit is equipped with various protection functions such as Short circuit, Over load and Over voltage. A s a result of its high reliability, excellent quality, and competitive price, Meanwell APV-35-36 is ideally suitable for the entry-level LED applications.
Meanwell APV-35-36 Encoding
| APV | Series Name |
| 35 | Output Wattage |
| 36 | Output Voltage |
Meanwell APV-35-36 Specifications
| Model | APV-35-36 | |
| Output | DC VOLTAGE | 36V |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0-1A | |
| RATED POWER | 36W | |
| RIPPLE & NOISE (max.) | 180 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGUL ATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load | |
| HOLD UP TIME | 20ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT | 0.5A/230VAC 0.75A/115VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=440μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110%~160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 41.4 ~ 48.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 , CSA-C22.2 No. 250.0-13, BIS IS15885(except for 15V,36V), EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |
| Others | MTBF | 5489.6K hrs min. Telcordia SR-332 (Bellcore) ; 600.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 84*57*29.5mm (L*W*H) | |
| PACKING | 0.18Kg; 72pcs / 14Kg/ 0.92CUFT | |
Meanwell APV-35-36 Features
l Pass LPS
l IP42 design
l Class 2 power unit
l 2 years warranty
l Low cost, high reliability
l Small and compact size
l Fully isolated plastic case
l 100% full load burn-in test
l Universal AC input/ Full range
l Cooling by free air convection
l Constant voltage mode power supply
l Withstand 300VAC Surge input for 5 seconds
l Protections: Short circuit/Over load/Over voltage
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
Meanwell APV-35-36 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
