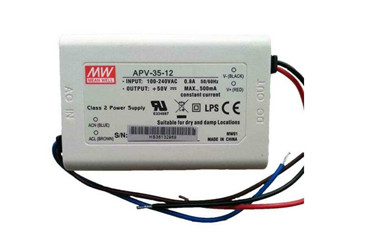

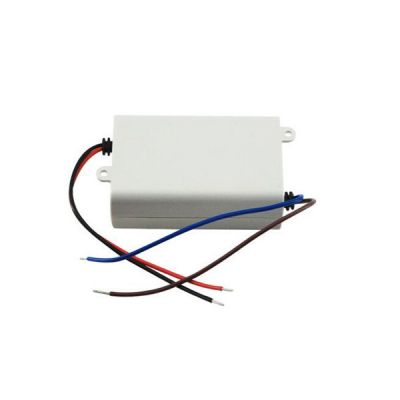

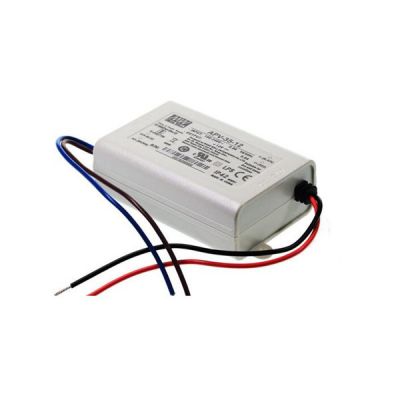

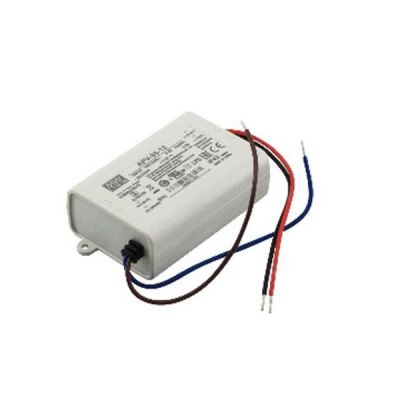

APV-35-12
6.68
Details
Meanwell APV-35-12 is a 35W AC/DC constant voltage mode single output LED power supply with 12V3A0-3A36W150 mVp-p. The item is designed small and compact size and IP 42. And it accepts the full range input 90~264VAC. At the same time, the model is provided with the output voltage 12V which the small wattage LED applications uses most frequently. Apart from them, APV-35-12 is able to withstand 300V AC Surge input for 5 seconds and use Class 2 power unit LPS passed. Additionally, the unit is equipped with various protection functions such as Short circuit, Over load and Over voltage. Thanks to its high reliability, excellent quality, and competitive price, Meanwell APV-35-12 is ideally suitable for the entry-level LED applications.
Meanwell APV-35-12 Encoding
| APV | Series Name |
| 35 | Output Wattage |
| 12 | Output Voltage |
Meanwell APV-35-12 Specifications
| Model | APV-35-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 3A | |
| CURRENT RANGE | 0-3A | |
| RATED POWER | 36W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGUL ATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load | |
| HOLD UP TIME | 20ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT | 0.5A/230VAC 0.75A/115VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=440μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110%~160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8 ~ 16.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 , CSA-C22.2 No. 250.0-13, BIS IS15885(except for 15V,36V), EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |
| Others | MTBF | 5489.6K hrs min. Telcordia SR-332 (Bellcore) ; 600.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 84*57*29.5mm (L*W*H) | |
| PACKING | 0.18Kg; 72pcs / 14Kg/ 0.92CUFT | |
Meanwell APV-35-12 Features
l IP42 design
l Class 2 power unit
l Pass LPS
l 2 years warranty
l Small and compact size
l Fully isolated plastic case
l Cooling by free air convection
l 100% full load burn-in test
l Low cost, high reliability
l Constant voltage mode power supply
l Universal AC input/ Full range
l Withstand 300VAC Surge input for 5 seconds
l Protections: Short circuit/Over load/Over voltage
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
Meanwell APV-35-12 Mechanical Diagram
