APV-25-12
5.08

APV-25-12

$5.08

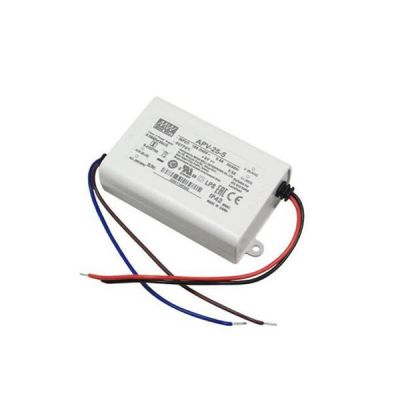

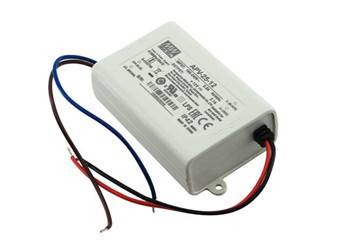

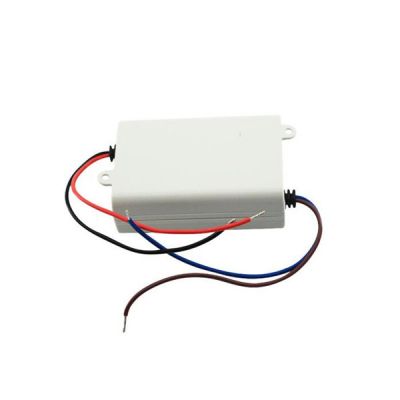

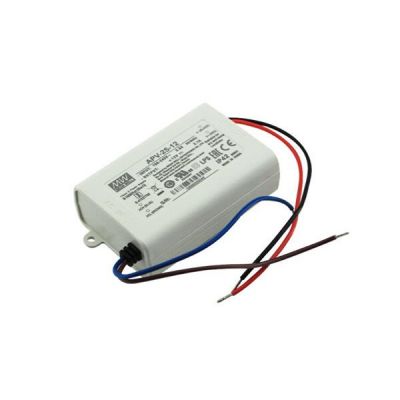

Meanwell 25W Single Output Switching Power Supply with 12V2.1A0-2.1A25.2W150 mVp-p±5.0%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell APV-25-12
Brand Meanwell
Details

Meanwell APV-25-12 is a 25W AC/DC constant voltage mode single output LED power supply with 12V2.1A0-2.1A25.2W150 mVp-p. The item is designed small and compact size and IP 42. It accepts the full range input 90~264VAC. Moreover, APV-25-12 offers the model with the output voltage 12V, which the small wattage LED applications utilizes most frequently. In addition to them, the product is able to withstand 300V AC Surge input for 5 seconds and use Class 2 power unit LPS passed. Furthermore, it is equipped with various protection functions such as Short circuit, Over load and Over voltage. Thanks to its high reliability, excellent quality, and competitive price, Meanwell APV-25-12 is ideally suitable for the entry-level LED application

Meanwell APV-25-12 Meanwell APV-25-12 price and specs 25W AC/DC constant voltage mode single output LED power supply ycict

Meanwell APV-25-12 Encoding

APV Series Name
25 Output Wattage
12 Output Voltage

Meanwell APV-25-12 Specifications

Model APV-25-12
Output DC VOLTAGE 12V
RATED CURRENT 2.1A
CURRENT RANGE 0-2.1A
RATED POWER 25.2W
RIPPLE & NOISE (max.)  150 mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGUL ATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
HOLD UP TIME  20ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  82.00%
AC CURRENT 0.4A/230VAC 0.8A/115VAC
INRUSH CURRENT (Typ. ) COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT 0.25mA / 240VAC
  OVERLOAD Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.95V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750 , CSA-C22.2 No. 250.0-13, BIS IS15885(except for 15V,36V), EAC TP TC 004,IP42 BS EN/EN 62368-1approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
Others MTBF 5489.6K hrs min. Telcordia SR-332 (Bellcore) ; 600.0K hrs min. MIL-HDBK-217F (25)
DIMENSION 84*57*29.5mm (L*W*H)
PACKING 0.13Kg; 72pcs / 10.4Kg / 0.92CUFT

Meanwell APV-25-12 Features

l  Small and compact size

l  IP42 design

l  Class 2 power unit

l  Pass LPS

l  2 years warranty

l  Fully isolated plastic case

l  Cooling by free air convection

l  100% full load burn-in test

l  Low cost, high reliability

l  Constant voltage mode power supply

l  Universal AC input/Full range

l  Withstand 300V AC Surge input for 5 seconds

l  Protections: Short circuit/Over load/Over voltage

l  Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

Meanwell APV-25-12 Features Meanwell APV-25-12 price and specs 25W AC/DC constant voltage mode single output LED power supply ycict

Meanwell APV-25-12 Mechanical Diagram

Meanwell APV-25-12 Mechanical Diagram Meanwell APV-25-12 price and specs 25W AC/DC constant voltage mode single output LED power supply ycict
