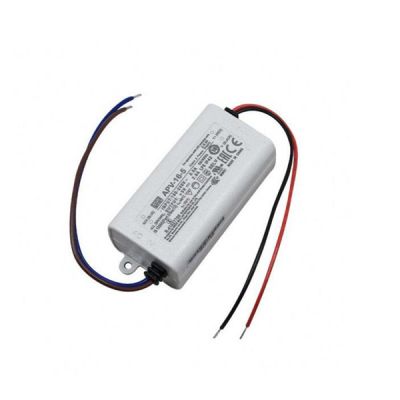

Meanwell APV-16 Series is a 16W AC/DC constant voltage mode single output LED power supply. The entire series is designed small and compact size and IP 42. It accepts the full range input 90~264VAC. At the same time, the series provides four models with different output voltage 5V, 12V,15V,24V, which the small wattage LED applications use most frequently. Apart from them, APV-16 adopts Class Il design (without FG pin) and the 94V-0 flame retardant plastic enclosure. What’s more, APV-16 is equipped with various protection functions such as Short circuit, Over load and Over voltage. Considering its high reliability, excellent quality, and competitive price, Meanwell APV-16 Series is ideally fit for the entry-level LED applications.
Meanwell APV-16 Series Encoding
| APV | Series Name |
| 16 | Output Wattage |
| 12 | Output Voltage |
Meanwell APV-16 Series Model Specifications
| Model | APV-16-5 | APV-16-12 | APV-16-15 | APV-16-24 | |
| Output | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 2.6A | 1.25A | 1A | 0.67A | |
| CURRENT RANGE | 0-2.6A | 0-1.25A | 0-1A | 0-0.67A | |
| RATED POWER | 13W | 15W | 15W | 16.08W | |
| RIPPLE & NOISE (max.) | 100 mVp-p | 120 mVp-p | 120 mVp-p | 150 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ||||
| LINE REGUL ATION | ±1.0% | ||||
| LOAD REGULATION | ±2.0% | ||||
| SETUP, RISE TIME | 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load | ||||
| HOLD UP TIME | 20ms/230VAC 12ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 76.00% | 80.00% | 81.00% | 83.00% | |
| AC CURRENT | 0.3A/230VAC 0.5A/115VAC | ||||
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=250μs measured at 50% Ipeak) at 230VAC | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURR ENT | 0.25mA / 240VAC | ||||
| OVERLOAD | Above 105% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16V | 17.5-21V | 27.6 ~ 32.4V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | ||||
| Others | MTBF | 7265.5K hrs min. Telcordia SR-332 (Bellcore) ; 1128.9K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 77*40*29mm (L*W*H) | ||||
| PACKING | 0.1Kg; 120pcs/14Kg/1.06CUFT | ||||
Meanwell APV-16 Series Features
l Constant voltage design
l Universal AC input/ Full range
l Protections: Short circuit/Over load/Over voltage
l Fully isolated plastic case
l Cooling by free air convection
l Small and compact size
l ClassⅡpower unit, no FG
l Class 2 power unit
l Pass LPS
l IP42 design
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
Meanwell APV-16 Series Mechanical Diagram
