APV-16-12
4.67
Details

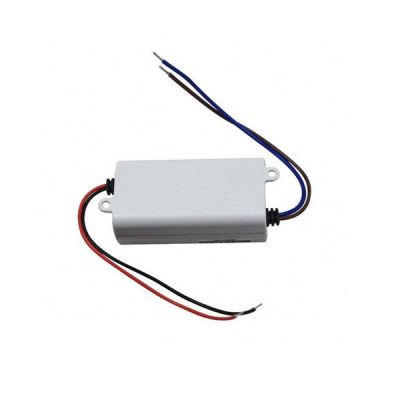

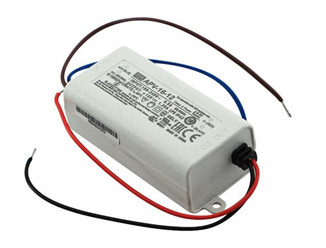

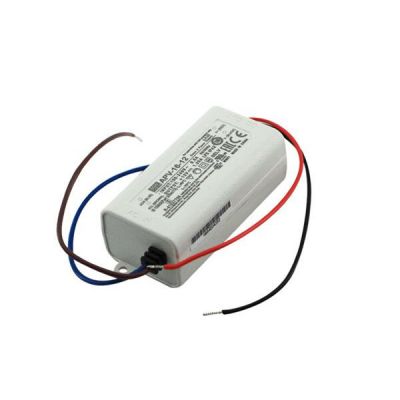

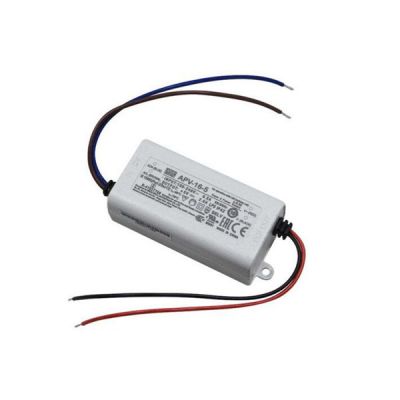

Meanwell APV-16-12 is a 16W AC/DC constant voltage mode single output LED power supply with 12V1.25A0-1.25A15W120 mVp-p. The item is designed small and compact size and IP 42. At the same time, it accepts the full range input 90~264VAC. APV-16-12 offers the model with the output voltage 12V which the small wattage LED applications use most frequently. Additionally, APV-16-12 adopts Class Il design (without FG pin) and the 94V-0 flame retardant plastic enclosure. What’s more, the model is equipped with various protection functions such as Short circuit, Over load and Over voltage. Thanks to its high reliability, excellent quality, and competitive price, Meanwell APV-16-12 is ideally suitable for the entry-level LED applications.
Meanwell APV-16-12 Encoding
| APV | Series Name |
| 16 | Output Wattage |
| 12 | Output Voltage |
Meanwell APV-16-12 Specifications
| Model | APV-16-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 1.25A | |
| CURRENT RANGE | 0-1.25A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 120 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGUL ATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load | |
| HOLD UP TIME | 20ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 80.00% | |
| AC CURRENT | 0.3A/230VAC 0.5A/115VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=250μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |
| OVERLOAD | Above 105% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8 ~ 16V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |
| Others | MTBF | 7265.5K hrs min. Telcordia SR-332 (Bellcore) ; 1128.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 77*40*29mm (L*W*H) | |
| PACKING | 0.1Kg; 120pcs/14Kg/1.06CUFT | |
Meanwell APV-16-12 Features
l Pass LPS
l IP42 design
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
l Fully isolated plastic case
l Cooling by free air convection
l Small and compact size
l ClassⅡpower unit, no FG
l Class 2 power unit
l Constant voltage design
l Universal AC input/ Full range
l Protections: Short circuit/Over load/Over voltage
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell APV-16-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
