APV-12
3.81
Details

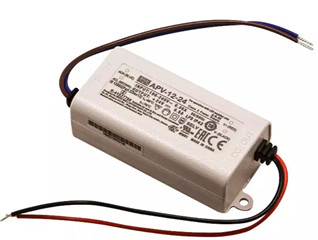

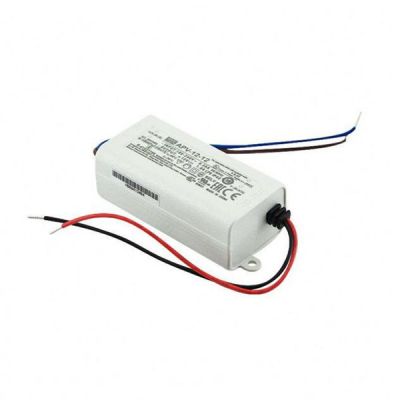

Meanwell APV-12 Series is a 12W AC/DC constant voltage mode single output LED power supply. The entire series accepts the full range input 90~264VAC. At the same time, it provides four models with different output voltage 5V, 12V,15V,24V, which the small wattage LED applications use most frequently. Apart from them, APV-12 adopts Class Il design (without FG pin) and the 94V-0 flame retardant plastic enclosure. Moreover, it is equipped with various protection functions such as Short circuit, Over load and Over voltage. Considering its high reliability, excellent quality, and competitive price, Meanwell APV-12 Series is ideally fit for the entry-level LED applications.
Meanwell APV-12 Series Encoding
| APV | Series Name |
| 12 | Output Wattage |
| 12 | Output Voltage |
Meanwell APV-12 Series Model Specifications
| Model | APV-12-5 | APV-12-12 | APV-12-15 | APV-12-24 | |
| Output | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 2A | 1A | 0.8A | 0.5A | |
| CURRENT RANGE | 0-2A | 0-1A | 0-0.8A | 0-0.5A | |
| RATED POWER | 10W | 12W | 12W | 12W | |
| RIPPLE & NOISE (max.) | 1000 mVp-p | 120 mVp-p | 120 mVp-p | 150 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ||||
| LINE REGUL ATION | ±1.0% | ||||
| LOAD REGULATION | ±2.0% | ||||
| SETUP, RISE TIME | 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load | ||||
| HOLD UP TIME | 20ms/230VAC 15ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 76.00% | 82.00% | 82.00% | 84.00% | |
| AC CURRENT (Typ.) | 0.2A/230VAC 0.35A/115VAC | ||||
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=185μs measured at 50% Ipeak) at 230VAC | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURR ENT | 0.25mA / 240VAC | ||||
| OVERLOAD | Above 105% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16V | 17.5-21V | 27.6 ~ 32.4V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42, BS EN/EN 62368-1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | ||||
| Others | MTBF | 7488.9K hrs min. Telcordia SR-332 (Bellcore) ; 1132.5K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 77*40*29(L*W*H) | ||||
| PACKING | 0.08Kg; 120pcs/11.8Kg/1.06CUFT | ||||
Meanwell APV-12 Series Features
l Constant voltage design
l Universal AC input/Full range
l Protections: Short circuit/Over load/Over voltage
l Fully isolated plastic case
l Cooling by free air convection
l Small and compact size
l Class II power unit, no FG
l Class 2 power unit
l Pass LPS
l IP42 design
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty

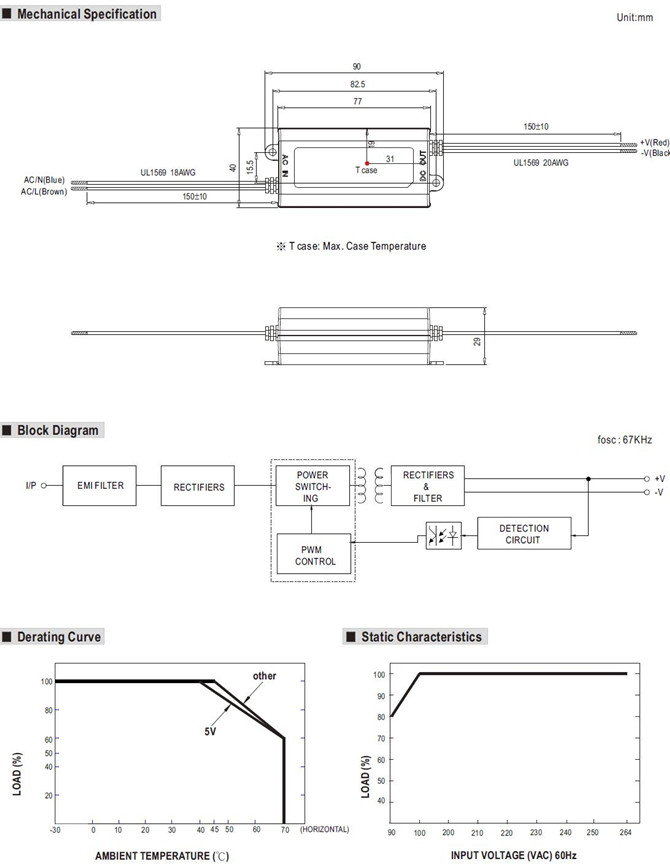

Meanwell APV-12 Series Mechanical Diagram
