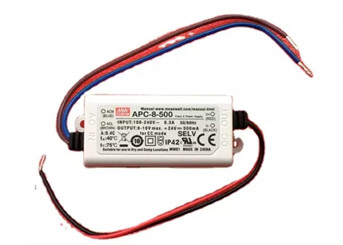

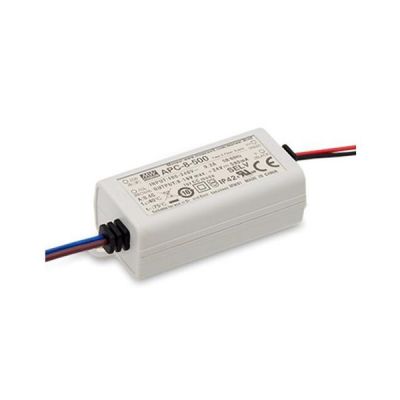

APC-8-500
5.49
Details
Meanwell APC-8-500 is one 8W AC/DC constant current mode single output LED power supply with 500mA8-16V8W300 mVp-p24V. The unit accepts the full range input 90~264VAC. And at the same time, the model is equipped with the output current 500mA, which the small wattage LED applications use most frequently. What’s more, the product is designed Class Ⅱ(without FG pin) and adopts the 94V-0 flame retardant plastic enclosure, In view of its high reliability, excellent quality, and competitive price, Meanwell APC-8-500 is ideally suitable for the entry-level LED applications.
Meanwell APC-8-500 Encoding
| APC | Series Name |
| 8 | Output Wattage |
| 500 | Output Current |
Meanwell APC-8-500 Specifications
| Model | APC-8-500 | |
| Output | RATED CURRENT | 500mA |
| OPERATING VOLTAGE RANGE | 8-16V | |
| RATED POWER | 8W | |
| RIPPLE & NOISE (max.) | 300 mVp-p | |
| NO LOAD OUTPUT VOLTAGE | 24V | |
| CURRENT ACCURACY | ±8.0% | |
| SETUP, RISE TIME | 500ms, 180ms / 230VAC 3000ms, 150ms / 115VAC at full load | |
| HOLD UP TIME | 20ms/230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC (Note.5) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 81.00% | |
| AC CURRENT | 0.15A/230VAC;0.3A/115VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| ENVIRONMENT | WORKING TEMP | -30 ~ 70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~45℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08, BIS IS15885, EAC TP TC 004; BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |
| Others | MTBF | 14511.7K hrs min. Telcordia SR-332 (Bellcore) ; 2275.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 60*30*23.5mm(L*W*H) | |
| PACKING | 0.05Kg;144pcs/7.6Kg/0.70CUFT | |
Manwell APC-8-500 Features
l 2 years warranty
l IP42 design
l Low cost/High reliability
l Protection: Short circuit
l Constant current design
l ClassⅡpower unit, no FG
l Fully isolated plastic case
l Small and compact size
l Cooling by free air convection
l 100% full load burn-in test
l Universal AC input/Full range
l No load power consumption <0.5W
Meanwell APC-8-500 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
