APC-35
7.13
Details

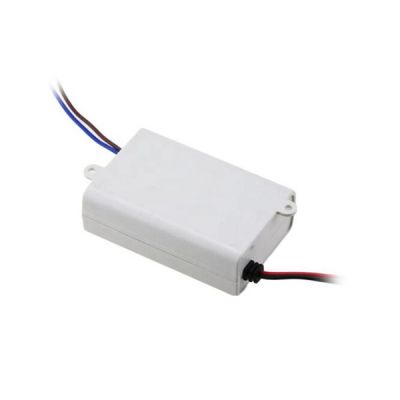

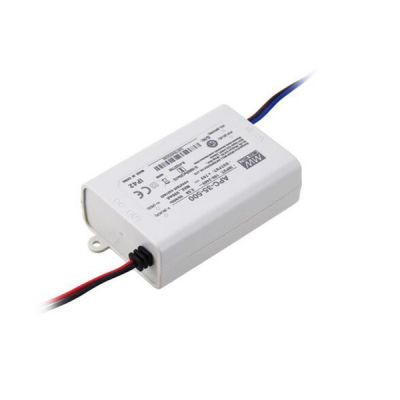

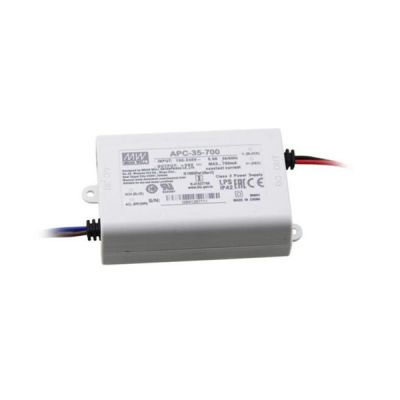

Meanwell APC-35 Series is one 35W AC/DC constant current mode single output LED power supply. The entire series accepts the full range input 90~264VAC outstanding with small and compact size, IP42 and free air convection cooling. What’s more, it provides four models with different output current 350mA, 500mA, 700mA and 1050mA respectively, which the small wattage LED applications employ most frequently. Apart from them, APC-35 Series is able to withstand 300VAC Surge input for 5 seconds and equipped with Short circuit and Over voltage protections. Considering its high reliability, excellent quality, and competitive price, Meanwell APC-35 Series serves as an ideally suitable solution for the entry-level LED applications such as such as LED Decoration or Advertisement devices, etc.
Meanwell APC-35 Series Encoding
| APC | Series Name |
| 35 | Output Wattage |
| 350 | Output Current |
Meanwell APC-35 Series Model Specifications
| Model | APC-35-350 | APC-35-500 | APC-35-700 | APC-35-1050 | |
| Output | RATED CURRENT | 350mA | 500mA | 700mA | 1050mA |
| DC VOLTAGE RANGE | 28-100V | 25-70V | 15-50V | 11-33V | |
| RATED POWER | 35W | 35W | 35W | 34.7W | |
| RIPPLE & NOISE (max.) | 350 mVp-p | 350 mVp-p | 350 mVp-p | 350 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ||||
| CURRENT ACCURACY | ±8.0% | ||||
| LINE REGULATION | ±1.0% | ||||
| LOAD REGULATION | ±3.0% | ||||
| SETUP, RISE TIME | 1500ms, 40ms / 230VAC 1500ms, 40ms / 115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 20ms/230VAC 12ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC | ||||
| EFFICIENCY (Typ.) | 84.00% | 84.00% | 84.00% | 84.00% | |
| AC CURRENT | 0.5A/230VAC;0.75A/115VAC | ||||
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=490μs measured at 50% Ipeak) at 230VAC | ||||
| LEAKAGE CURR ENT | 0.25mA / 240VAC | ||||
| PROTECTION | OVER VOLTAGE | 110-130V | 77-91V | 55-65V | 36-43V |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP | -30 ~ 70℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~45℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (only for APC-35-700&1050), CSA-C22.2 No. 250.0-13 (only for APC-35-1050), BIS IS15885, EAC TP TC 004, IP42, BS EN/EN 62368-1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | ||||
| Others | MTBF | 4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 550.4K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 84*57*29.5(L*W*H) | ||||
| PACKING | 0.18Kg; 72pcs/14Kg/0.92CUFT | ||||
Meanwell APC-35 Series Features
l Constant current mode power supply
l Universal AC input/ Full range
l Withstand 300VAC Surge input for 5 seconds
l Protections: Short circuit / Over voltage
l Fully isolated plastic case
l Small and compact size
l Cooling by free air convection
l IP42 design
l 100% full load burn-in test
l Suitable for LED related fixture or appliance such as L ED Decoration or Advertisement devices
l Low cost/ High reliability
l 2 years warranty

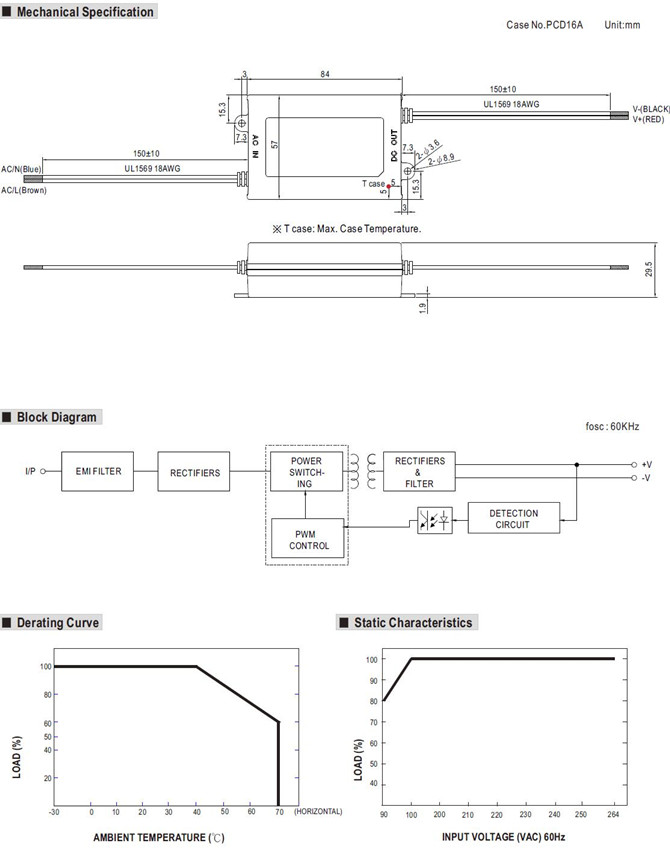

Meanwell APC-35 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
