APC-35-1050
7.35
Details

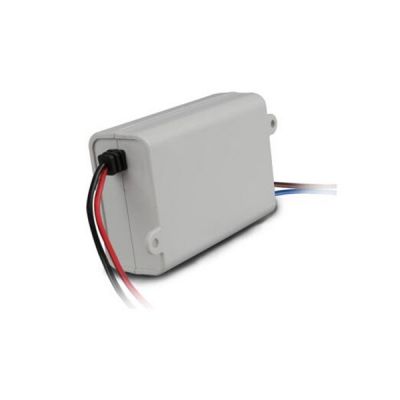

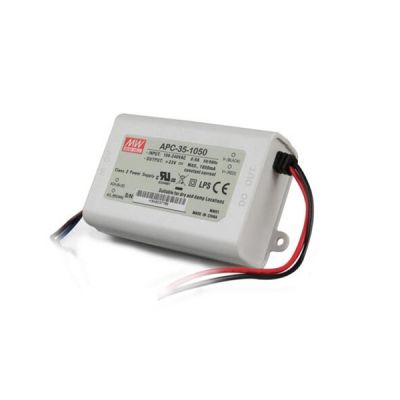

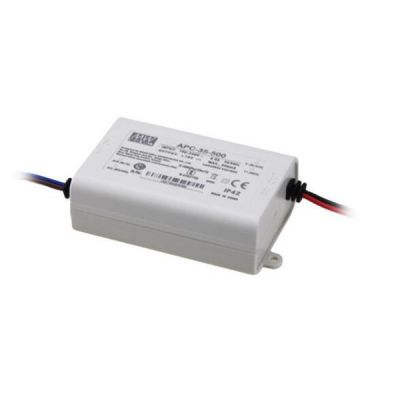

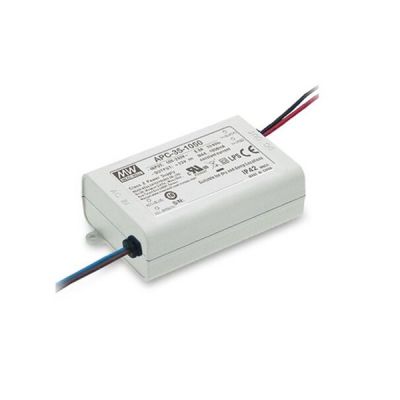

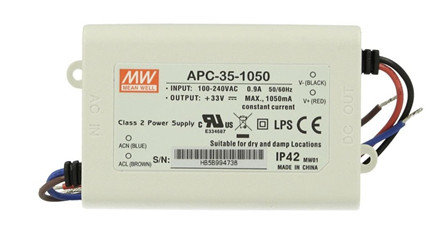

Meanwell APC-35-1050 is one 35W AC/DC constant current mode single output LED power supply with 1050mA11-33V34.7W350 mVp-p. The model accepts the full range input 90~264VAC designed small and compact size, IP42 and free air convection cooling. At the same time, the product is provided with the output current 1050mA, which the small wattage LED applications use most frequently. In addition, APC-35-1050 is able to withstand 300VAC Surge input for 5 seconds and equipped with Short circuit and Over voltage protections. As a result of its high reliability, excellent quality, and competitive price, Meanwell APC-35-1050 is an ideally suitable solution for the entry-level LED applications such as such as LED Decoration or Advertisement devices, etc.
Meanwell APC-35-1050 Encoding
| APC | Series Name |
| 35 | Output Wattage |
| 1050 | Output Current |
Meanwell APC-35-1050 Specifications
| Model | APC-35-1050 | |
| Output | RATED CURRENT | 1050mA |
| DC VOLTAGE RANGE | 11-33V | |
| RATED POWER | 34.7W | |
| RIPPLE & NOISE (max.) | 350 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| CURRENT ACCURACY | ±8.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE TIME | 1500ms, 40ms / 230VAC 1500ms, 40ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 20ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT | 0.5A/230VAC;0.75A/115VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=490μs measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |
| PROTECTION | OVER VOLTAGE | 36-43V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ 70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~45℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (only for APC-35-700&1050), CSA-C22.2 No. 250.0-13 (only for APC-35-1050), BIS IS15885, EAC TP TC 004, IP42, BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |
| Others | MTBF | 4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 550.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 84*57*29.5(L*W*H) | |
| PACKING | 0.18Kg; 72pcs/14Kg/0.92CUFT | |
Meanwell APC-35-1050 Features
l IP42 design
l 2 years warranty
l Small and compact size
l 100% full load burn-in test
l Low cost/ High reliability
l Fully isolated plastic case
l Cooling by free air convection
l Universal AC input/ Full range
l Constant current mode power supply
l Withstand 300VAC Surge input for 5 seconds
l Protections: Short circuit / Over voltage
l Suitable for LED related fixture or appliance such as L ED Decoration or Advertisement devices
Meanwell APC-35-1050 Mechanical Diagram
