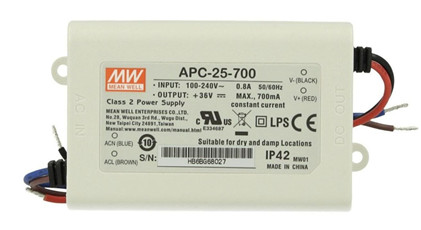

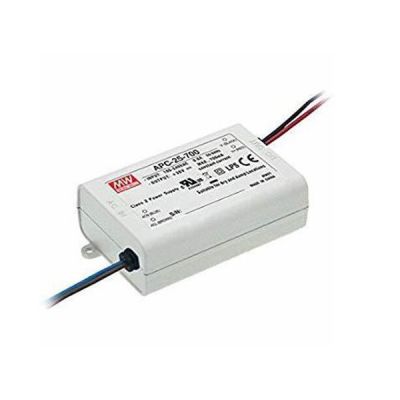

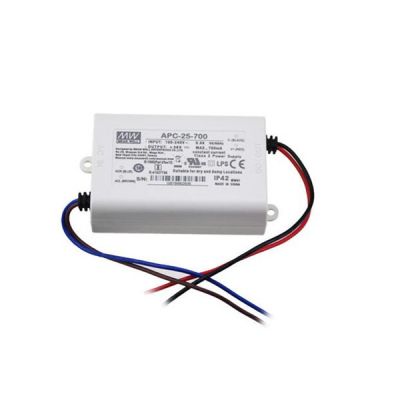

APC-25-700
6.59
Details
Meanwell APC-25-700 is one 25W AC/DC constant current mode single output LED power supply with 700mA11-36V25.2W300 mVp-p. It accepts the full range input 90~264VAC featuring the small and compact size, IP42 and free air convection cooling. What’s more, the item is provided with the output current 700mA which the small wattage LED applications use most frequently. In addition to them, APC-25-700 is able to withstand 300VAC Surge input for 5 seconds and supplied with Short circuit and Over voltage protections. In light of its high reliability, excellent quality, and competitive price, Meanwell APC-25-700 functions as an ideally suitable solution for the entry-level LED applications such as such as LED Decoration or Advertisement devices, etc.
Meanwell APC-25-700 Encoding
| APC | Series Name |
| 25 | Output Wattage |
| 700 | Output Current |
Meanwell APC-25-700 Specifications
| Model | APC-25-700 | |
| Output | RATED CURRENT | 700mA |
| DC VOLTAGE RANGE | 11-36V | |
| RATED POWER | 25.2W | |
| RIPPLE & NOISE (max.) | 300 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| CURRENT ACCURACY | ±8.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE TIME | 1500ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 20ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC (Note.5) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT | 0.4A/230VAC;0.8A/115VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |
| PROTECTION | OVER VOLTAGE | 41-49V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ 70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~45℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (except for APC-25-350), CSA-C22.2 No. 250.0-13 (only for APC-25-700&1050), BIS IS15885, EAC TP TC 004, IP42, BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |
| Others | MTBF | 4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 504.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 84*57*29.5(L*W*H) | |
| PACKING | 0.13Kg; 72pcs/10.4Kg/0.92CUFT | |
Meanwell APC-25-700 Features
l IP42 design
l 2 years warranty
l Fully isolated plastic case
l Small and compact size
l Cooling by free air convection
l Low cost/ High reliability
l 100% full load burn-in test
l Constant current mode power supply
l Universal AC input/Full range
l Withstand 300VAC Surge input for 5 seconds
l Protections: Short circuit/Over voltage
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell APC-25-700 Mechanical Diagram
