APC-25-1050

$6.63

Meanwell 25W Single Output Switching Power Supply with 1050mA9-24V25.2W300 mVp-p±5.0%±8.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell APC-25-1050
Brand Meanwell
Details

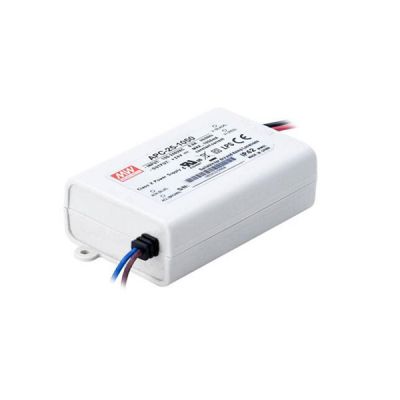

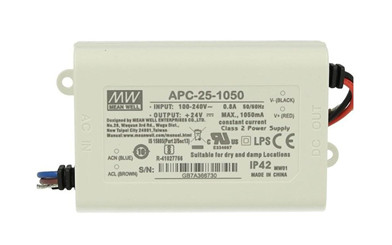

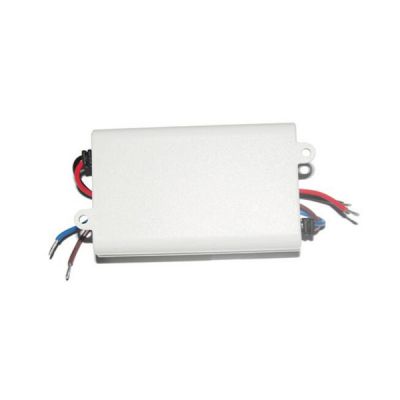

Meanwell APC-25-1050 is one 25W AC/DC constant current mode single output LED power supply with 1050mA9-24V25.2W300 mVp-p. The unit accepts the full range input 90~264VAC designed in small and compact size, IP42 and free air convection cooling. Moreover, it is provided with the output current 1050mA which the small wattage LED applications adopts most frequently. Apart from them, APC-25-1050 is able to withstand 300VAC Surge input for 5 seconds and equipped with Short circuit and Over voltage protections. In view of its high reliability, excellent quality, and competitive price, Meanwell APC-25-1050 functions as an ideally suitable solution for the entry-level LED applications such as such as LED Decoration or Advertisement devices, etc.

Meanwell APC-25-1050 Meanwell APC-25-1050 price and specs 25W AC/DC constant current mode single output LED power ycict

Meanwell APC-25-1050 Encoding

APC Series Name
25 Output Wattage
1050 Output Current

Meanwell APC-25-1050 Specifications

Model APC-25-1050
Output RATED CURRENT 1050mA
DC VOLTAGE RANGE 9-24V
RATED POWER 25.2W
RIPPLE & NOISE (max.)  300 mVp-p
VOLTAGE TOLERANCE ±5.0%
CURRENT ACCURACY ±8.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE TIME 1500ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.) 20ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC (Note.5)
FREQUENCY RANGE 47 ~ 63Hz
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC
EFFICIENCY (Typ.)  83.00%
AC CURRENT 0.4A/230VAC;0.8A/115VAC
INRUSH CURRENT (Typ. ) COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURR ENT 0.25mA / 240VAC
PROTECTION OVER VOLTAGE 27-35V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ 70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.2%/ (0 ~45)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750 (except for APC-25-350), CSA-C22.2 No. 250.0-13 (only for APC-25-700&1050), BIS IS15885, EAC TP TC 004, IP42, BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
Others MTBF 4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 504.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 84*57*29.5(L*W*H)
PACKING 0.13Kg; 72pcs/10.4Kg/0.92CUFT

Meanwell APC-25-1050 Features

l  IP42 design

l  2 years warranty

l  Fully isolated plastic case

l  Small and compact size

l  Cooling by free air convection

l  Low cost/ High reliability

l  100% full load burn-in test

l  Universal AC input/Full range

l  Constant current mode power supply

l  Withstand 300VAC Surge input for 5 seconds

l  Protections: Short circuit/Over voltage

l  Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

Meanwell APC-25-1050 Features Meanwell APC-25-1050 price and specs 25W AC/DC constant current mode single output LED power ycict

Meanwell APC-25-1050 Mechanical Diagram

Meanwell APC-25-1050 Diagram Meanwell APC-25-1050 price and specs 25W AC/DC constant current mode single output LED power ycict
