APC-12

As low as $6.16

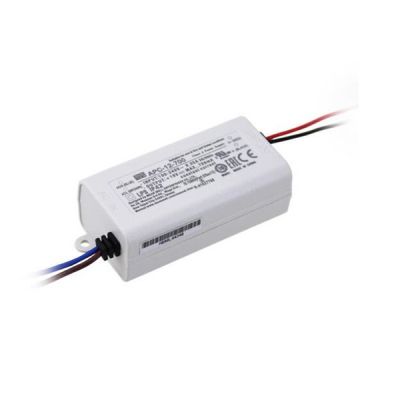

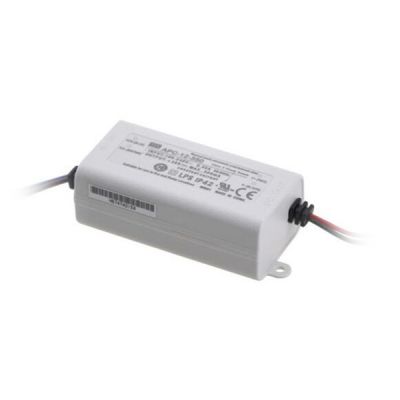

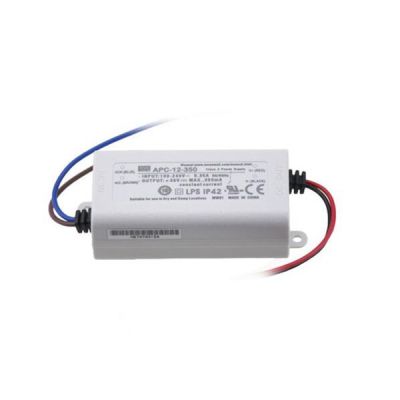

Meanwell 12W Single Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell APC-12
Brand Meanwell
Details

Meanwell APC-12 Series is one 12W AC/DC constant current mode single output LED power supply. The entire series accepts the full range input 90~264VAC standing out with Small and compact size, LPS Passed and IP42. And at the same time, the series provides two models with different output current 350mA and 700mA respectively, which the small wattage LED applications employ most frequently. Apart from them, APC-12 is designed Class Ⅱ(without FG pin) and adopts the 94V-0 flame retardant plastic enclosure, Considering its high reliability, excellent quality, and competitive price, Meanwell APC-12 Series is ideally suitable for the entry-level LED applications.

Meanwell APC-12 Meanwell APC-12 series price and specs 12W AC/DC constant current mode single output LED power supply LED Driver ycict

Meanwell APC-12 Series Encoding

APC Series Name
12 Output Wattage
350 Output Current

Meanwell APC-12 Series Model Specifications

Model APC-12-350 APC-12-700
Output RATED CURRENT 350mA 700mA
DC VOLTAGE RANGE 9-36V 9-18V
RATED POWER 12.6W 12.6W
RIPPLE & NOISE (max.)  300 mVp-p 250 mVp-p
VOLTAGE TOLERANCE ±5.0%
CURRENT ACCURACY ±8.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE TIME 3000ms, 180ms / 230VAC 3000ms, 150ms / 115VAC at full load
HOLD UP TIME (Typ.) 20ms/230VAC,15ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.95/230VAC 0.98/115VAC at full load
EFFICIENCY (Typ.)  82.00% 80.00%
AC CURRENT 0.2A/230VAC;0.35A/115VAC
INRUSH CURRENT (Typ. ) COLD START 70A(twidth=150μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT 0.25mA / 240VAC
PROTECTION OVER VOLTAGE 39.6~ 46.8V 20.7~ 24.3V
Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT WORKING TEMP -30 ~ 70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.2%/ (0 ~45)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750,CSA C22.2 No.250.0-08, BIS IS15885, EAC TP TC 004,BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
Others MTBF 6418.1K hrs min. Telcordia SR-332 (Bellcore) ; 1097.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 77*40*29(L*W*H)
PACKING 0.08Kg; 120pcs/11.8Kg/1.06CUFT

Meanwell APC-12 Series Features

l  Constant current design

l  Universal AC input/Full range

l  Protections: Short circuit/Over voltage

l  Fully isolated plastic case

l  Small and compact size

l  Cooling by free air convection

l  ClassⅡpower unit, no FG

l  Class 2 power unit

l  Pass LPS

l  IP42 design

l  Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

l  100% full load burn-in test

l  Low cost/High reliability

l  2 years warranty

Meanwell APC-12 Series FeaturesMeanwell APC-12 price and specs 12W AC/DC constant current mode single output LED power ycict

Meanwell APC-12 Series Mechanical Diagram

Meanwell APC-12 Series Mechanical Diagram Meanwell APC-12 price and specs 12W Single Output Switching Power Supply ycict
