APC-12-700
6.59
Details

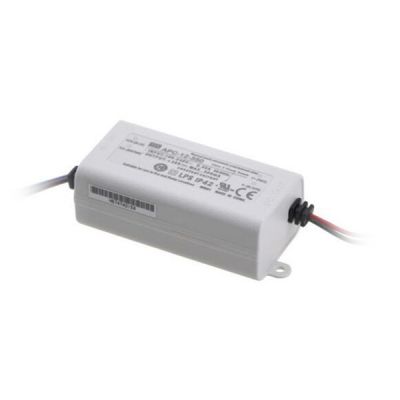

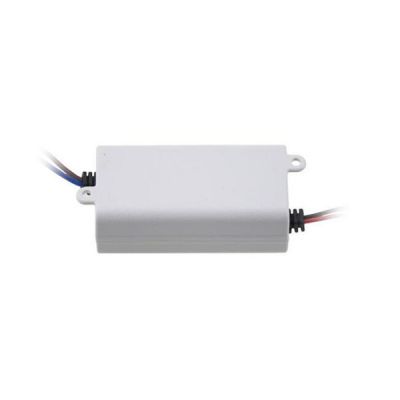

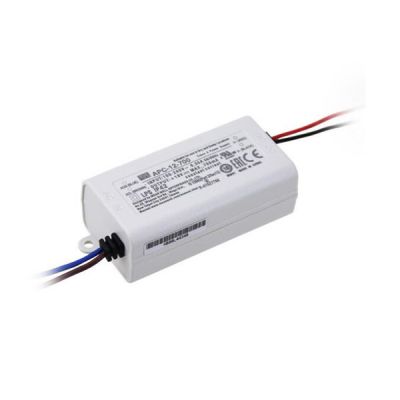

Meanwell APC-12-700 is one 12W AC/DC constant current mode single output LED power supply with 700mA9-18V12.6W250 mVp-p. The unit accepts the full range input 90~264VAC highlighting small and compact size, LPS Passed and IP42. In addition to them, it offers the model with the output current 700mA, which the small wattage LED applications adapts most frequently. Moreover, APC-12-700 is designed Class Ⅱ(without FG pin) and uses the 94V-0 flame retardant plastic enclosure. Due to its high reliability, excellent quality, and competitive price, Meanwell APC-12-700 is ideally suitable for the entry-level LED applications.
Meanwell APC-12-700 Encoding
| APC | Series Name |
| 12 | Output Wattage |
| 700 | Output Current |
Meanwell APC-12-700 Specifications
| Model | APC-12-700 | |
| Output | RATED CURRENT | 700mA |
| DC VOLTAGE RANGE | 9-18V | |
| RATED POWER | 12.6W | |
| RIPPLE & NOISE (max.) | 250 mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| CURRENT ACCURACY | ±8.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE TIME | 3000ms, 180ms / 230VAC 3000ms, 150ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 20ms/230VAC,15ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 80.00% | |
| AC CURRENT | 0.2A/230VAC;0.35A/115VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=150μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | 0.25mA / 240VAC | |
| PROTECTION | OVER VOLTAGE | 20.7~ 24.3V |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ 70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~45℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08, BIS IS15885, EAC TP TC 004,BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | |
| Others | MTBF | 6418.1K hrs min. Telcordia SR-332 (Bellcore) ; 1097.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 77*40*29(L*W*H) | |
| PACKING | 0.08Kg; 120pcs/11.8Kg/1.06CUFT | |
Meanwell APC-12-700 Features
l Pass LPS
l IP42 design
l 2 years warranty
l Class 2 power unit
l Constant current design
l Universal AC input/Full range
l Protections: Short circuit/Over voltage
l Fully isolated plastic case
l Small and compact size
l Cooling by free air convection
l ClassⅡpower unit, no FG
l 100% full load burn-in test
l Low cost/High reliability
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell APC-12-700 Mechanical Diagram
