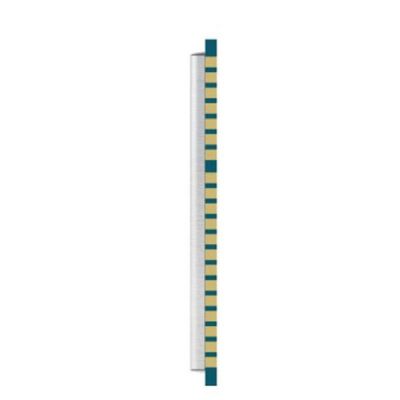

AG35-E Cat 4 Module

Quectel AG35-E Cat 4 Module is an automotive grade LTE category 4 modules developed by Quectel. Designed and manufactured according to IATF 16949:2016 quality management system, it is targeted at the IoV (Internet of Vehicles) applications. Adopting the 3GPP Rel. 10 LTE technology, it features maximally 150 Mbps downlink and 50 Mbps uplink data rates. It provides abundant interfaces for customers to develop applications, and its excellent performance in ESD and EMI protection ensures great robustness in harsh environments.

AG35 contains five variants (AG35-CE, AG35-E, AG35-NA, AG35-LA, AG35-J) to meet the market requirements of China, Europe, North America, Latin America and Japan. It is backward compatible with existing EDGE and GSM/GPRS networks, enabling it to be connected even in remote areas devoid of 3G or 4G coverage.

AG35 supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. The module also combines high-speed wireless connectivity with embedded highly sensitive multi-constellation GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS) receiver for positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functions (USB drivers for Windows 7/8/8.1/10, Windows CE, Linux and Android, eCall, etc.) extend the applicability of AG35 to a wide range of M2M applications in industrial, consumer and automotive markets. It is especially suitable for auto-related applications, such as fleet management, vehicle tracking, in-vehicle navigation system, vehicle remote monitoring, vehicle remote control, security monitoring and alarming, remote vehicle diagnostics, vehicle wireless routing, in-car entertainment, and more.
