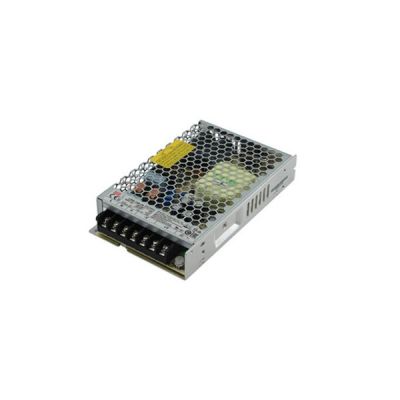

ADS-5524
22.68
Details

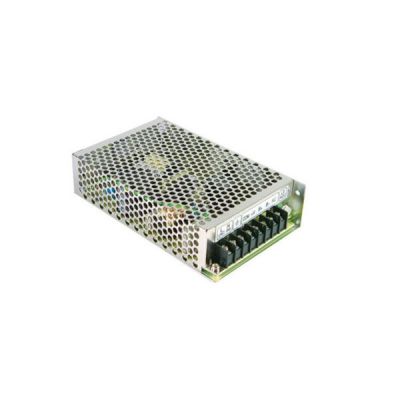

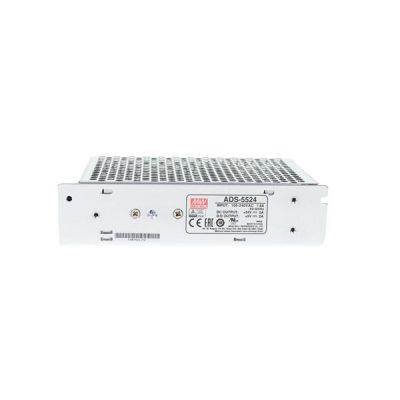

Meanwell ADS-5524 is 55W Single Output with 5V,4A DC-DC Converter with CH1CH224V5V2A2A0-2.5A0-4A58W100mVp-p100mVp-pCH1:21.6~26.4V. It can be used as an integrated power supply and battery charger to charge rechargeable batteries while powering electronic devices. When the main power fails, the device will switch to an external battery, which will continue to power the electronics until the main power is reapplied or the battery is depleted. Apart from them, ADS-5524 is fixed switching frequency at 45KHz and Universal AC input/ Full range. What’s more, the product is equipped with various protection functions such as Short circuit, Overload and Over voltage. Due to its high reliability, excellent quality and long life, Meanwell ADS-5524 is suitable for safety industrial or battery backup systems
Meanwell ADS-5524 Specifications
| Model | ADS-5524 | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 24V | 5V | |
| RATED CURRENT | 2A | 2A | |
| CURRENT RANGE | 0-2.5A | 0-4A | |
| RATED POWER | 58W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:21.6 ~ 26.4V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ±3.0% | |
| LINE REGULATION | ±1.0% | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | --- | |
| SETUP, RISE TIME | 1400ms, 50ms/230VAC 3300ms, 50ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 80ms/230VAC 16ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 79.00% | ||
| AC CURRENT (Typ.) | 1.6A/115VAC 1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | ||
| LEAKAGE CURRENT | <1mA / 240VAC | ||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | CH1:27.6 ~ 32.4V | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||
| OTHERS | MTBF | 2486.3K hrs min. Telcordia SR-332 (Bellcore) ; 416.3K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 159*97*38mm (L*W*H) | ||
| PACKING | 0.57Kg; 24pcs/13.7Kg/0.83CUFT | ||
Meanwell ADS-5524 Features
l 2 years warranty
l 100% full load burn-in test
l Universal AC input/ Full range
l Fixed switching frequency at 45KHz
l Cooling by free air convection
l Protections: Short circuit/Overload /Over voltage
Meanwell ADS-5524 Mechanical Diagram
