ADD-55B
25.69
Details

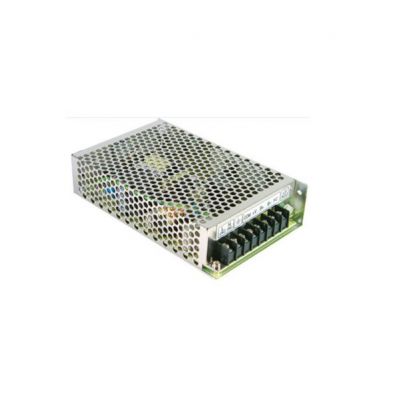

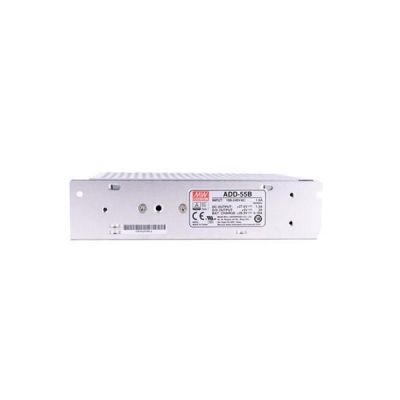

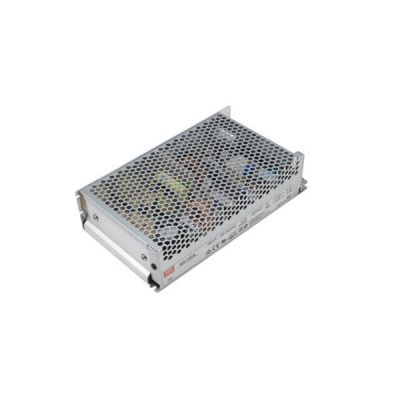

Meanwell ADD-55B is 55W Dual Output with Battery Charger UPS Function and CH1CH2CH327.6V5V26.5V1.3A3A0.16A0-2A0-4A55.12W150mVp-p150mVp-pCH1:24~29V. It is designed for uninterrupted DC power supply (UPS). Except for the main power supply circuit, it also offers a floating charge output. After connecting the battery, the load uses AC power supply. When there is a power supply, it automatically switches to battery power after electricity. What’s more, ADD-55B is a classic metal mesh shell model with 100% full load burn-in test and Fixed switching frequency at 45KHz. Apart from supplying various protection functions such as Short circuit, Overload and Over voltage. ADD-55B provides one battery voltage power supply output and one charging output. Thanks to its high reliability, excellent reliability and longevity, Meanwell ADD-55B is widely applied in emergency lighting, security monitoring and alarm systems.
Meanwell ADD-55B Specifications
| Model | ADD-55B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 27.6V | 5V | 26.5V | |
| RATED CURRENT | 1.3A | 3A | 0.16A | |
| CURRENT RANGE | 0-2A | 0-4A | ---- | |
| RATED POWER | 55.12W | |||
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1: 24 ~ 29V | |||
| VOLTAGE TOL ERANCE | ±1.0% | ±3.0% | ----- | |
| LINE REGULATION | ±1.0% | ±0.5% | ---- | |
| LOAD REGUL .ATION | ±1.0% | ±0.5% | ---- | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 80ms/230VAC 16ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 74.00% | |||
| AC CURRENT (Typ.) | 1.6A/115VAC 1A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | |||
| LEAKAGE CURRENT | <1mA / 240VAC | |||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | ||
| Protection type : AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse | ||||
| OVER VOLTAGE | CH1:28.98 ~ 37.26V | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| FUNCTION | DC ALARM SIGNAL(OPTIONAL) | AC fail CN1 PIN2 | ||
| Battery low under charge voltage 82.5%±2% CN1 PIN1 | ||||
| Normal 0.8V max. Abnormal 5V±0.5V | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | |||
| OTHERS | MTBF | 2002.7K hrs min. Telcordia SR-332 (Bellcore) ; 373.8K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 159*97*38mm (L*W*H) | |||
| PACKING | 0.57Kg; 24pcs/13.7Kg/0.83CUFT | |||
Meanwell ADD-55B Features
l Universal AC input/Full range
l Protections: Short circuit/Overload/Over voltage
l Battery low protections
l Cooling by free air convection
l 100% full load burn-in test
l Fixed switching frequency at 45KHz
l 2 years warranty
Meanwell ADD-55 Series Mechanical Diagram
