AD-55
20.24
Details

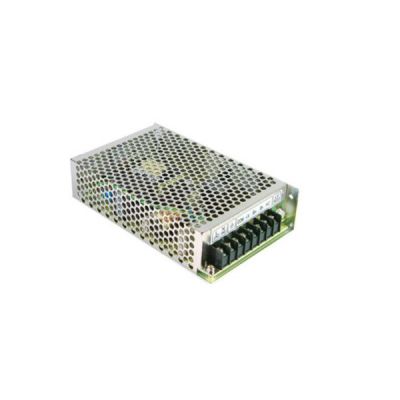

Meanwell AD-55 Series is 55W Single Output with Battery Charger with UPS Function. It is designed for uninterrupted DC power supply (UPS). In addition to the main power supply, AD-55 also provides a charge output. After connecting the battery, the load uses AC power supply when there is a power supply. Moreover, it automatically switches to battery power after electricity. AD-55 series is metal mesh shell model, and provides various protection functions such as Short circuit, Overload and Over voltage. Apart from providing one battery voltage output, AD-55 provides one battery voltage power supply output and one charging output. Considering its high reliability, excellent reliability and longevity, Meanwell AD-55 series is widely used in emergency lighting, security monitoring and alarm systems.
Meanwell AD-55 Series Model Specifications
| Model | AD-55A | AD-55B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 13.8V | 13.4V | 27.6V | 26.5V | |
| RATED CURRENT | 3.5V | 0.23A | 1.8A | 0.16A | |
| CURRENT RANGE | 0-4A | ----- | 0-2A | ---- | |
| RATED POWER | 51.38W | 53.92W | |||
| RIPPLE & NOISE (max.) | 100mVp-p | ---- | 100mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1: 12 ~ 14.5V | CH1: 24 ~ 29V | |||
| VOLTAGE TOL ERANCE | ±1.0% | ---- | ±1.0% | ----- | |
| LINE REGULATION | ±0.5% | ---- | ±0.5% | ----- | |
| LOAD REGUL .ATION | ±0.5% | ---- | ±0.5% | --- | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 80ms/230VAC 16ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 71.00% | 74.00% | |||
| AC CURRENT (Typ.) | 1.6A/115VAC 1A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | ||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |||
| Protection type : AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse | |||||
| OVER VOLTAGE | CH1:15.87 ~ 18.63V | CH1:31.74 ~ 37.26V | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| BATTERY LOW | 9.5 ~ 11V | 20 ~ 22V | |||
| FUNCTION | DC ALARM SIGNAL(OPTIONAL) | AC fail CN1 PIN2 | |||
| Battery low under charge voltage 82.5%±2% CN1 PIN1 | |||||
| Normal 0.8V max. Abnormal 5V±0.5V | |||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||||
| OTHERS | MTBF | 2380.9K hrs min. Telcordia SR-332 (Bellcore) ; 548.7K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 159*97*38mm (L*W*H) | ||||
| PACKING | 0.5Kg; 24pcs/12.6Kg/0.83CUFT | ||||
Meanwell AD-55 Series Features
l Universal AC input/Full range
l Protections: Short circuit/Overload/Over voltage
l Battery low protections
l Cooling by free air convection
l 100% full load burn-in test
l Fixed switching frequency at 45KHz
l 2 years warranty

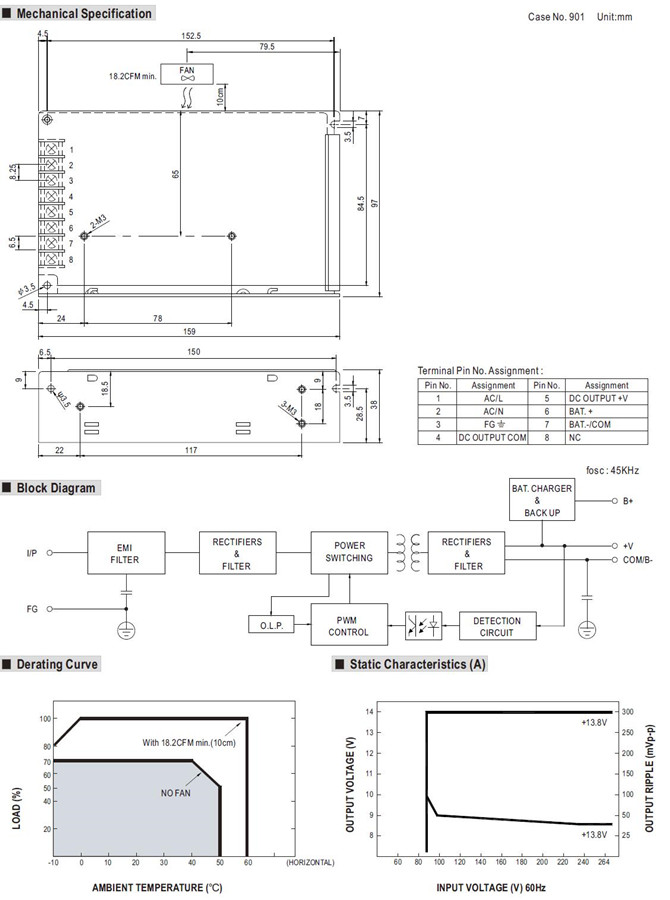

Meanwell AD-55 Series Mechanical Diagram
