AD-155C
43.16
Details

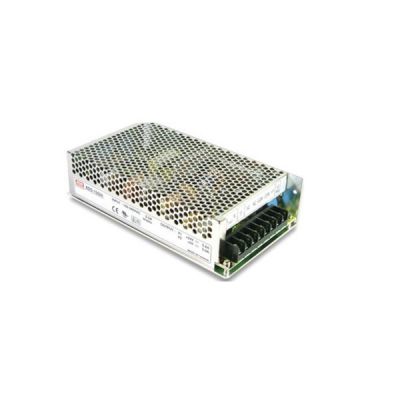

Meanwell AD-155C is 155W Single Output with Battery Charger (UPS Function) with CH1CH254V53.3V2.7A0.2A0-2.7A0-0.5A156.5W240mVp-pCH1: 48~58V. The item is designed for uninterrupted DC power supply. It is also able to be used as an integrated power supply and battery charger to charge rechargeable batteries while powering electronic devices. When the mains power fails, the device will switch to an external battery, which will continue to power the electronics until the mains power is reapplied or the battery is depleted. Meanwhile, the product could also be used with batteries with a capacity below 3Ah. In addition, AD-155C is fixed switching frequency at PFC 67KHz, PWM 134KHz and passes 100% full load burn-in test. What’s more, it supplies various protection functions such as Short circuit, Overload and Over voltage. Thanks to its high reliability, excellent reliability and longevity, Meanwell AD-155C is widely used in emergency lighting, security monitoring and alarm systems.
Meanwell AD-155C Specifications
| Model | AD-155C | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 54V | 53.3V | |
| RATED CURRENT | 2.7A | 0.2A | |
| CURRENT RANGE | 0-2.7A | 0-0.5A | |
| RATED POWER | 156.5W | ||
| RIPPLE & NOISE (max.) | 240mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1: 48 ~ 58V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ----- | |
| LINE REGULATION | ±0.5% | ----- | |
| LOAD REGUL .ATION | ±0.5% | --- | |
| SETUP, RISE TIME | 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 24ms/230VAC 20ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF>0.92 at full load | ||
| EFFICIENCY (Typ.) | 84.00% | ||
| AC CURRENT (Typ.) | 2.5A/115VAC 1.5A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 23A/115VAC 45A/230VAC | ||
| LEAKAGE CURRENT | <1mA / 240VAC | ||
| PROTECTION | OVERL OAD | CH1:105 ~ 135% CH2:0.51 ~ 0.9A rated output power | |
| Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse | |||
| OVER VOLTAGE | CH1:62.1 ~ 72.9V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| BATTERY LOW | 39V±2V | ||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||
| OTHERS | MTBF | 1818.3K hrs min. Telcordia SR-332 (Bellcore) ; 229.9K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 199*110*50mm (L*W*H) | ||
| PACKING | 0.88Kg; 16pcs/15Kg/0.95CUFT | ||
Meanwell AD-155C Features
l 2 years warranty
l 100% full load burn-in test
l Universal AC input/Full range
l Cooling by free air convection
l Battery low and battery polarity protection
l Protections: Short circuit/Overload/Over voltage
l Fixed switching frequency at PFC 67KHz, PWM 134KHz
Meanwell AD-155C Mechanical Diagram
