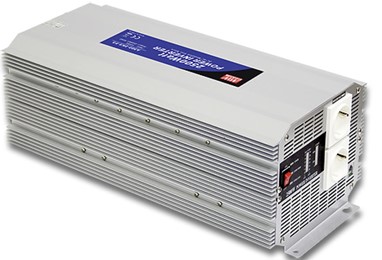

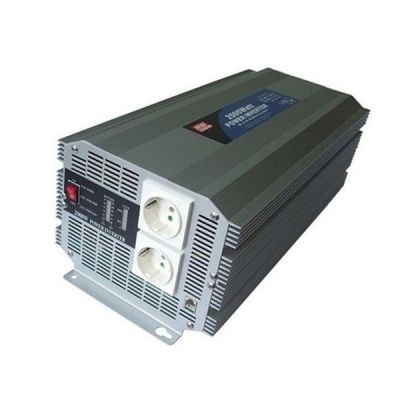

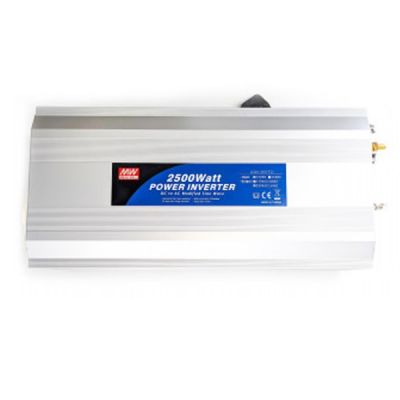

A301-2K5-B4
514.28
Details
Meanwell A301-2K5-B4 Specifications
| ORDER NO. | A301-2K5-B4 | A301-2K5-F3 | A302-2K5-B4 | A302-2K5-F3 | |
| OUTPUT | SAFETY MODEL NO. | A301-2K5 | A302-2K5 | ||
| AC VOLTAGE | 110V | 230V | 110V | 230V | |
| RATED POWER | 2500W | ||||
| SURGE POWER | 5000W | ||||
| WAVE FORM | Modified Sine Wave | ||||
| FREQUENCY | 60Hz±1% | 50Hz±1% | 60Hz±1% | 50Hz±1% | |
| AC REGULATION | ±10% | ±10% | |||
| STANDARD RECEPTACLES | TYPE-2* 2ea | TYPE-3* 2ea | TYPE-2* 2ea | TYPE-3* 2ea | |
| LED INDICATOR | Green LED for power on; Yellow LED for O.T.P.; Red LED for O.L.P.; Battery V/A meter | ||||
| INPUT | DC CURRENT | 250A | 130A | ||
| NO LOAD CURRENT DRAW | 0.9A | 0.6A | |||
| DC VOLTAGE | 12V | 24V | |||
| VOLTAGE RANGE | 10 ~ 15VDC | 21 ~ 30VDC | |||
| EFFICIENCY (Typ.) | 82% | 85% | |||
| DC CONNECTOR | None | None | |||
| FUSE | 30A*12 | 15A*12 | |||
| PROTECTION | BAT. LOW ALARM | 10±0.5V | 21±0.8V | ||
| BAT. LOW SHUTDOWN | 9.5±0.5V | 20±0.8V | |||
| OVER LOAD | >2700W shut down o/p voltage, re-power to recover | ||||
| OVER VOLTAGE | 15 ~ 17V | 30 ~ 32V | |||
| OVER TEMPERATURE | 60±5℃/ 140±9oF | ||||
| OUTPUT SHORT | Shut-off | ||||
| BAT. POLARITY | By fuse open | ||||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +25℃@100% load | |||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.05% / ℃ (0 ~ 50℃) | ||||
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004 approved | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMI RADIATION | Compliance to BS EN/EN55014-1, EAC TP TC 020 | ||||
| EMS IMMUNITY | Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020 | ||||
| LVD | Compliance to BS EN/EN62368-1 | ||||
| OTHERS | MTBF | 37Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 430*210*159mm (L*W*H) | ||||
| PACKING | 8.7kg ; 2pcs / 19kg / CARTON | ||||
| COOLING | >40℃ (NTC) fan on | ||||
| APPLICATIONS | Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc. | ||||
Meanwell A301-2K5-B4 Features
l 12V or 24V DC input
l Power ON-OFF switch
l Input voltage range: -15%~+25%
l Output voltage regulation: ±10%
l Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/Over temp./Output short/Input polarity reverse/Over load
l Output waveform: Modified sine wave
l Cooling fan ON-OFF control
l ON/OFF remote control (Optional/Order No.: RC 2500)
l Approvals: E13/EAC/CE/UKCA
l 1 year warranty
Meanwell A301-2K5-B4 Mechanical Diagram
