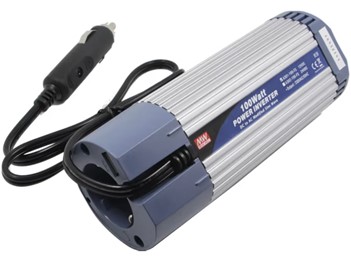

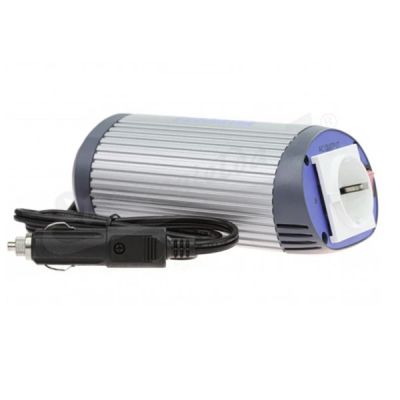

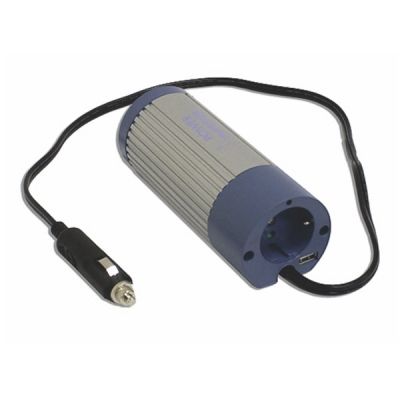

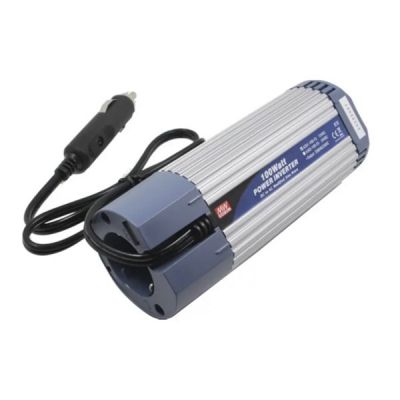

Meanwell 100W Modified Sine Wave DC-AC Power Inverter

- +
Availability:In stock
SKU Meanwell A301-100-F3
Brand Meanwell
Details

A301-100-F3 Meanwell Power Supply 100W Modified Sine Wave DC-AC Power Inverter A302-100-F3  A301/302 Series YCICT

Meanwell A301-100-F3 Specifications

ORDER NO. A301-100-F3 A302-100-F3
OUTPUT SAFETY MODEL NO. A301-100 A302-100
AC RATED VOLTAGE 230V
RATED POWER 100W
SURGE POWER 200W
WAVE FORM Modified Sine Wave
FREQUENCY 50Hz±1%
AC REGULATION ±10% ±10%
STANDARD RECEPTACLES Europe*1ea
LED INDICATOR Dual-color indicator display for power on / failure status
USB POWER 5VDC/500mA (max.) 5VDC/300mA (max.)
INPUT DC CURRENT 15A 10A
NO LOAD CURRENT DRAW 0.25A 0.2A
DC VOLTAGE 12V 24V
VOLTAGE RANGE 10 ~ 15VDC 21 ~ 30VDC
EFFICIENCY (Typ.) 90%
DC CONNECTOR 650±50mm Cigarette plug*1ea
FUSE 15A* 1ea 10A* 1ea
PROTECTION BAT. LOW SHUTDOWN 10±0.5V 19.5±1V
OVER VOLTAGE 15 ~ 17V 30 ~ 32V
OVER TEMPERATURE 60±5 / 140±9oF (case)
OUTPUT SHORT Shut-off
REVERSE. POL ARITY By fuse open
ENVIRONMENT WORKING TEMP. 0 ~ +30 @100% load, 40@ 50% load
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -30 ~ +70 / -22 ~ +158oF, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05% / (0 ~ 50)
SAFETY & EMC SAFETY STANDARDS EAC TP TC 004 approved
ISOLATION RESISTANCE I/P-O/P:100M Ohms min./ 500VDC / 25/ 70% RH
EMI RADIATION Compliance to BS EN/EN55014-1, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
LVD Compliance to BS EN/EN62368-1
OTHERS DIMENSION ψ65*170mm (Diameter*L)
PACKING 0.55Kg ; 30pcs / 17.5Kg / CARTON
COOLING By air convection
APPLICATIONS Home appliance, office and portable equipment and vehicle ...etc

Meanwell A301-100-F3 Features

l  Built-in USB interface

l  Cooling by free air convection (without fan)

l  Slim size can fit in with the cup holder on vehicles

l  High efficiency up to 90%

l  12V or 24V DC input

l  Input voltage range:-15%~+25%

l  Output voltage regulation ±10%

l  Protections: Input reverse polarity/Bat. Low shutdown/Over voltage/Over load/Over temperature/Output short

l  Output waveform: Modified sine wave

l  Topology: Microprocessor

l  Approvals: E13/EAC/CE/UKCA

l  1 year warranty

A301-100-F3 Meanwell Power Supply 100W Modified Sine Wave DC-AC Power Inverter A302-100-F3 A301/302 low cost YCICT

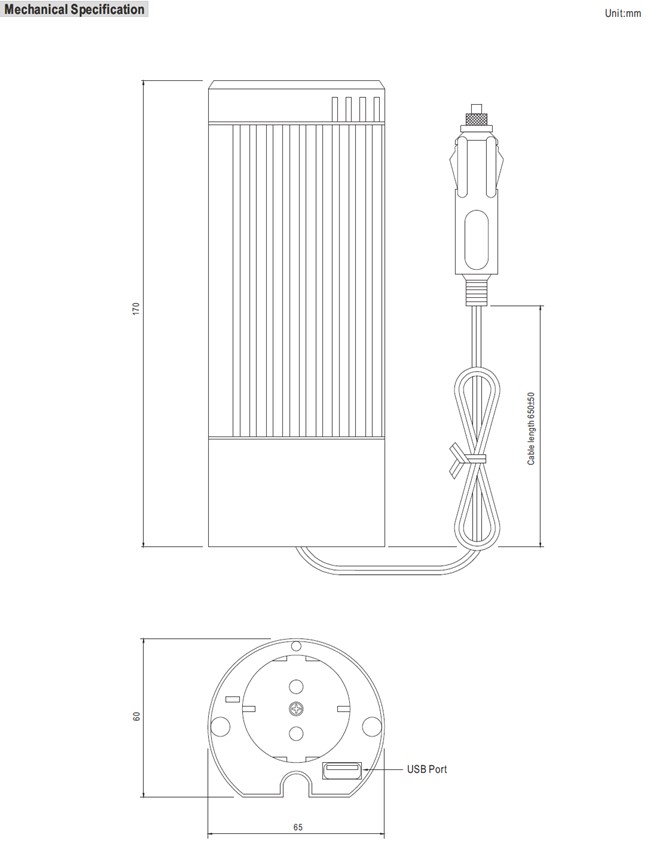

Meanwell A301-100-F3 Mechanical Diagram

A301-100-F3 Meanwell Power Supply 100W Modified Sine Wave DC-AC Power Inverter A302-100-F3 A301/302 YCICT
